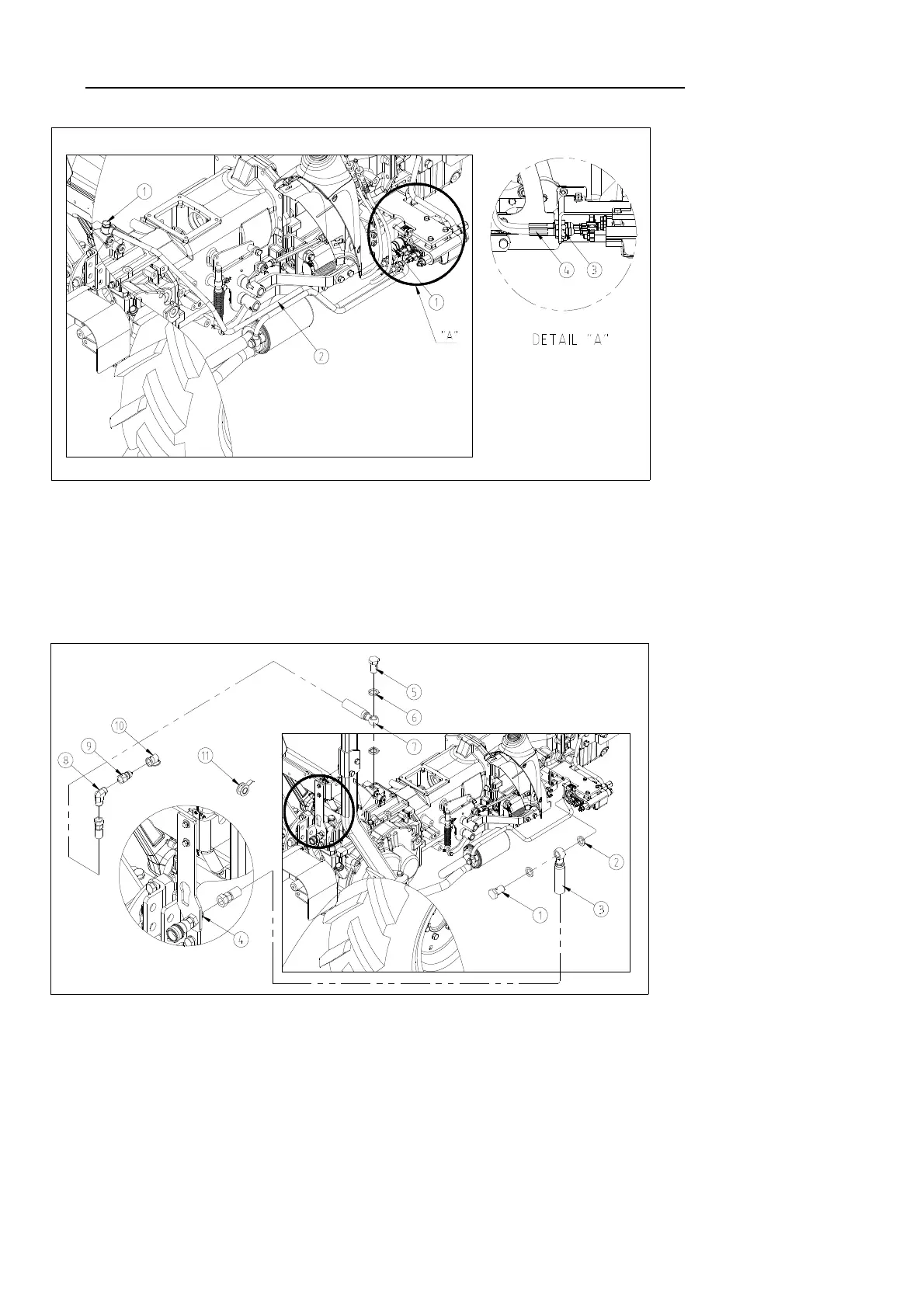

HOW TO CONNET HYDRAULIC LINE
① Union Bolt
② Pipe
③ Nut
④ Joystick cable
STEP 2.
Notice - Detail "A"
① Union bolt(PF1/2)
② Bonded seal(1/2")
③ Hydraulic hose
④ Nipple
⑤ Union bolt(PF3/8)
⑥ Bonded seal(3/8")
⑦ Hydraulic hose
⑧ Nipple-elbow
⑨ Quick coupler
⑩ Dust cap
⑪ Teflon tape
STEP 3.
STEP 4.
STEP 5.
Install the hydraulic hose(⑦) to the hydraulic housing of the tractor with union bolt(⑤) and bonded seals(⑥).
Remove the union bolts(①) and pipe(②) from the tractor.
It is easy to install and disassemble the backhoe hydraulic parts if remove the joystick cable(④) and nut(③)
first.
Wind up the teflon tape(⑪) on the nipple(⑧) and tighten this nipple to the hydraulic hose(⑦).
Install the hydraulic hose(③) to the tractor control valve with union bolt(①) and bonded seals(②).
- 31 -
