To save the changed
value, press
When change is completed, press to go
back to the previous screen.
X 3 times
Move cursor
with

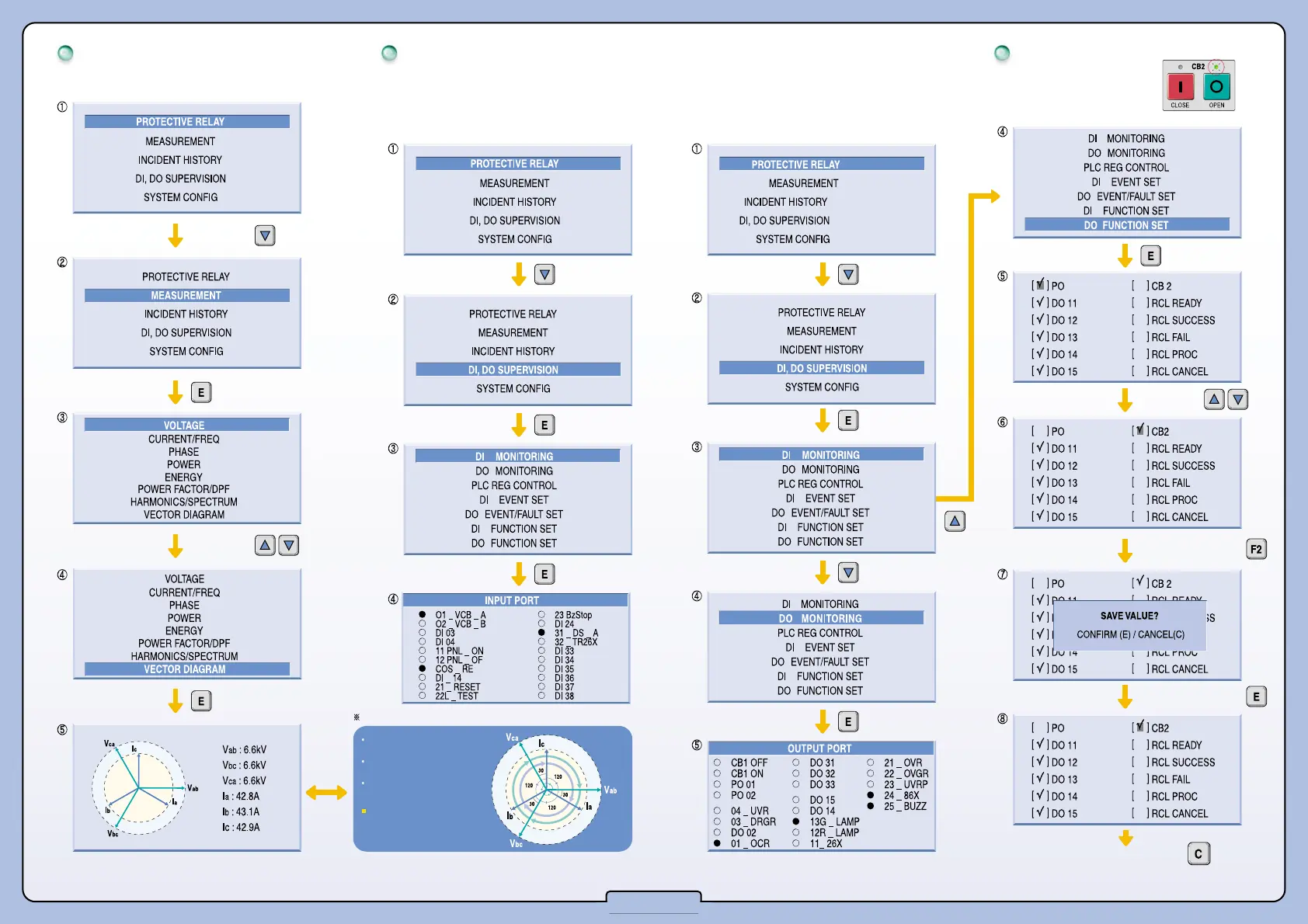

Vector diagram of normal connection
.
Move cursor
with
Phase difference
between voltages: 120¡
Phase difference
between currents: 120¡
Phase difference between
voltage and current: 30¡
The phase sequence must
be clockwise for both
voltage and current
.
Select CB2
by pressing
.
.
.
X 3 times
X 1 times
X 1 times
Save will be completed
by pressing
* Each Input/output contact’s names are changeable.
(G2K Manager)
* When faulty connection occurs, it must be confirmed as PF (power factor) and Wh
(Wattage) can be varied. (But it can be confirmed after the ceiling voltage and current are approved.)
Picturized item of input voltage and phase of current
DI, DO Monitoring
CB2 ON/OFF status
indication LED
setting
(When using CB2)
As it is possible to check the current On/Off status of each input/output contact, it is useful for causual
analysis when operating or integration testing the CB.
■
DI MONITORING
■
DO MONITORING
