LS GIPAM 2000 User Manual

X 2 times
Event number Event content
Occurrence time
of the event
It is useful to understand the progress of a Fault before/after the occurrence.
Basic structure
■ Types of EVENT
No. Symbol Content
1 A : Alarm Internal occurrence alarm event
2 R : Relay Relay element operation event
3 S : Status Input/output contact status change event
4 U : User User control event
* Can move to previous or next page, by using .

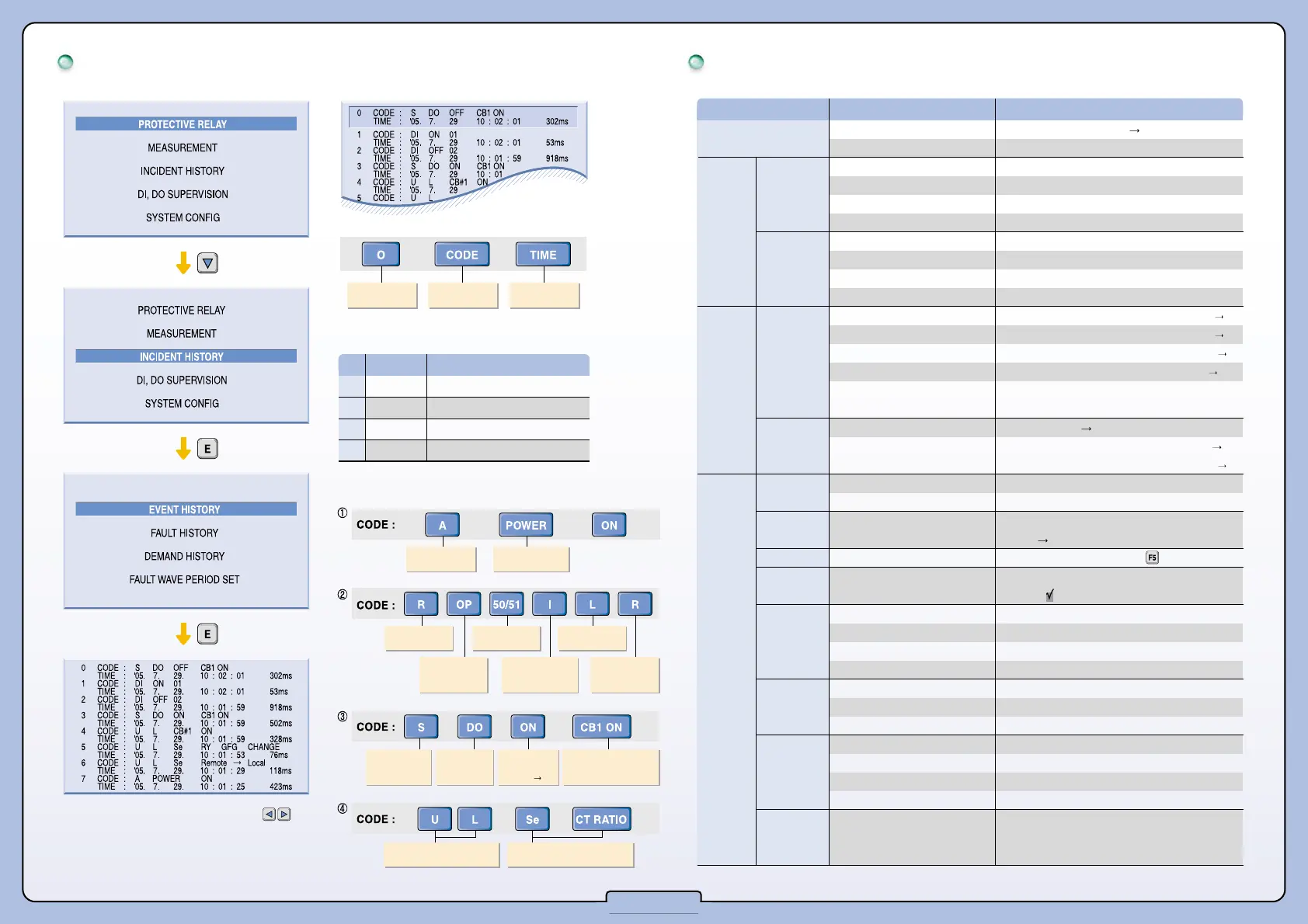

Event history check - Save 800 items EVENT Interpretation
5-4
■ Basic CODE interpretation
Type of event
A: ALRAM
PU: Pick-Up
OP: Operation
(operation)
R: R phase operation
S: S phase operation
T: T phase operation
I: Instantaneous
T: Time delay
L: Low curve
H: High curve
Type of event
R: Relay operation
Type of event
S: Status
(status change)
Type of event
UL: User Local(User control)
Se: Setting, CT Ratio: CT ratio
CT ratio change
Changed contact
number/name
CB1 ON: CB1 ON output
contact (48.33)
Changed
status
ON: OFF ON
Changed main
agent
DO: Output
contact status
Relay element
operated
(ANSI CODE)
Details
(descriptive)
A (Alarm)
- Internal occurrence alarm
R (Relay)
- Relay
Pick-Up
element
operation
Operation
S (Status)
- Input/
output
DO
contact
status
change
(output DI
contact) (input
contact)
UL
CB control
(User Local)
- User
R/L change
control
Fault Reset
Relay element
select/delete
Relay element
correction
value
change
Configure
-tion change
Accumulation
value Clear
I-Net
Address
change
Type of EVENT Display Details
GIPAM control power ON (OFF ON
GIPAM internal system error
Relay Pick-up: OCR, instantaneous(I), Low set, R phase operation
Relay Pick-up: OCGR, time delay(T), High set, Io operation
Relay Pick-up: UVR, R, S, T phase operation
Relay Pick-up: OVGR, time delay(T), Low set, Vo operation
Relay Operation: OCR, time delay(T), High set, T phase operation
Relay Operation: POR (open phase) operation
Relay Operation: OVR, time delay(T), Low set, R, S phase operation
Relay Operation: SGR, Vo, Io operation
Output contact status change: CB1 ON output contact ON (OFF ON)
Output contact status change: CB1 ON output contact OFF (ON
OFF)
Output contact status change: CB1 OFF output contact ON (OFF
ON)
Output contact status change: DO 01 output contact OFF (ON
OFF)
Output contact status change: CB1 OFF output and DO
01 output contact ON
status change (OFF
ON)
Input contact status change: DI 02 input contact ON (OFF ON)
Input contact status change: DI 01 and DI 11 input contact OFF (ON OFF)
User operates CB 1 ON switch
User operates CB 2 OF switch
User changes it to local status by R/L switch
(Remote
Local)
User operates Relay Reset Switch( )
User select whether to use the relay elements,
or delete ( )
User changes the OCR correction value
User changes the UVR correction value
User changes the POR correction value
User changes the NSOVR correction value
User changes the CT ratio
User changes the GPT ratio
User changes the connection type or frequency
User initialize the maximum value of zero-phase sequence voltage
User initialize the valid wattage
User deletes the whole events
User initialize the current demand (Peak value)
User changes the I-Net communication address
CODE : A POWER ON.
CODE : A DIAG ERROR.
CODE : R PU 50/51 I L R
CODE : R PU 50/51N,G T H Io
CODE : R PU 27-1 R S T
CODE : R PU 64 T L Vo
CODE : R OP 50/51 T H T
CODE : R OP 47 (POR)
CODE : R OP 59 T LR S
CODE : R OP 67G Vo Io
CODE : S DO ON CB1 ON
CODE : S DO OF CB1 ON
CODE : S DO ON CB1 OF
CODE : S DO OF 01
CODE : S DO ON CB1 OF, 01
CODE :DI ON 02
CODE :DI OFF 01 11
CODE : U L CB#1 ON
CODE : U L CB#2 OF
CODE : U L Se Remote → Local
CODE : U L Re Fault
CODE : U L Se RY CFG CHANGE
CODE : U L Se 50/51 SET
CODE : U L Se 27-1 SET
CODE : U L Se POR SET
CODE : U L Se 47 SET
CODE : U L Se CT RATIO
CODE : U L Se GPT RATIO
CODE : U L Se WIRING/FREQ
CODE : U L Vo Max
CODE : U L Re Wh
CODE : U L Re EVENT ALL
CODE : U L Re CURRENT Pk DMD
CODE : U L Se INET ADDRESS
