LS GIPAM 2000 User Manual

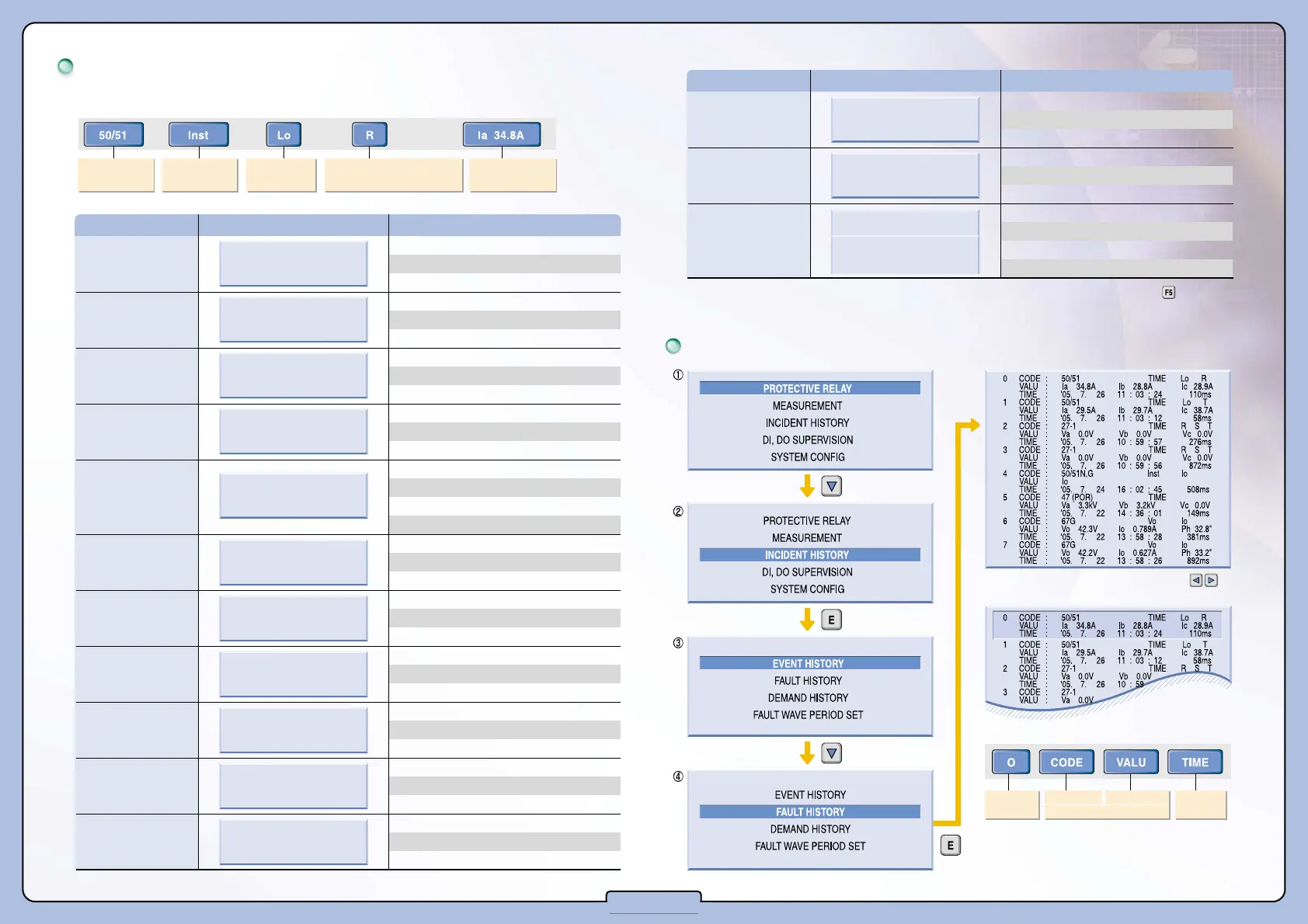

Fault display (at relay operation)
■ Basic CODE interpretation
* - The fault display on the screen about operated relay elements will disappear by pressing the Reset button ( ).
- The information disappeared from the screen will be automatically recorded/saved in the FAULT HISTORY.
* Can move to previous or next page by using .
Operated relay
element
(ANSI code)
Incidet value (Can
record each phase at
the same time)
Inst: instantaneous
Time: time delay
Lo: Low curve
Hi: High curve
R: R phase operation S: S phase operation
Vo: zerophasesequence voltageoperation
lo: Zero phase current operation
X 2 times
X 1 times
FAULT
(Fault) number
Fault content Fault value
Relay
operation time
Same as the displayed contents on
the screen when fault occurred.
※ Basic structure
 The CODE and VALUE in the FAULT HISTORY is
same with the content displayed when the fault
occurred, and the TIME (Fault occurrence time) will
be additionally recorded.
5-5
Fault history check - Save 200 items
Fault element Display Details
OCR (instantaneous)
OCR (time delay)
OCGR (instantaneous)
OCGR (time delay)
UVR
OVR
POR
SGR
DGR
NSOVR
(negative
sequence voltage)
NSOCR
(negative sequence
over current)
OCR instantaneous operation (Low set)
Fault cause: R phase over current
Fault value: Ir=34.8A
OCR time delay operation (High set)
Fault cause: R, S phase over current
Fault value: Ir=38.7A, Is=42.3A
OCGR instantaneous operation (High set)
Fault cause: Io (zero phase current)
Fault value: Io=18.2A
OCGR time delay action (Low set)
Fault cause: Io (zero phase current)
Fault value: Io=10.6A
UVR operation
Fault cause: R, S, T phase low voltage
Fault value: Va=OV, Vo=OV, Vc=OV
(※ instantaneous/time delay and Low/High set are not classified)
OVR time delay action (Low set)
Fault cause: R phase over voltage
Fault value: Va=7.3kV
POR time delay action
Fault cause: T phase voltage phase sequence
Fault value: Va=6.6kV, Vb=6.7kV, Vc=0.0V
SGR time delay action
Fault cause: Vo, Io (zero-phase sequence voltage, zero phase current)
Fault value: Vo=52V, Io=0.325A, Ph=43.5°
DGR time delay action
Fault cause: Vo, Io (zero-phase sequence voltage, zero phase current)
Fault value: Vo=43.6V, Io=10.2A, Ph=38.4°
NSOVR time delay action
Fault cause: V2 (negative sequence voltage)
Fault value: V2=6.4kV
NSOCR time delay action
Fault cause: I2 (negative sequence current)
Fault value: I2=45.3A
**
Relay Trip
***
50/51 Inst Lo R
Ia 34.8A
**
Relay Trip
***
50/51 Time Hi R S
Ia 38.7A Ib 42.3A
**
Relay Trip
***
50/51N.G Inst Hi Io
Io 18.2A
**
Relay Trip
***
50/51N.G Time Lo Io
Io 10.6A
**
Relay Trip
***
27-1 Time R S T
Va 0.0V Vb 0.0V Vc 0.0V
**
Relay Trip
***
59 Time Lo R
Va 7.3kV Vb 6.6kV Vc 6.7kV
**
Relay Trip
***
47(POR) Time
Va 6.6kV Vb 6.7kV Vc 0.0V
**
Relay Trip
***
67G Time Vo Io
Vo 68V Io 0.325A Ph 43.5

**
Relay Trip
***
67N Time Vo Io
Vo 88.3V Io 10.2A Ph 38.4

**
Relay Trip
***
47(NSOVR) Time V
2
V
2
6.4kV
**
Relay Trip
***
46 Time I
2
I
2
45.3A
LOCKED ROTOR
(Burden)
THR
DFR (87T)
LOCKED ROTOR (Burden) time delay action
Fault cause: burden current
Fault value: Ia =76.8A, Ib=74.2A, Ic=74.2A
THR time delay action
Fault cause: Overheat by over current
Fault value: Ia= 82.6A, Ib=84.3A, Ic=84.2A
87T time delay action (Low set)
Fault cause: Error of transformer 1st, 2nd current
Fault value: Ida 10.2A, Idb 5.8A, Idc 4.5A, Ira 10.2A, Irb 7.9A, Irc 6.3A
※Ida: R phase differential current, Irc: T phase inhibitory current
Fault element Display Details
**
Relay Trip
***
51LR Time
Ia 76.8A Ib 74.2A Ic 74.2A
**
Relay Trip
***
49 Time
Ia 82.6A Ib 84.3A Ic 84.2A
**
Relay Trip
***
87T Time Lo R S T
Ida 10.2A Idb 5.8A Idc 4.5A
Ira 10.2A Irb 7.9A Irc 6.3A
