LS SV150iS5-4 User Manual

Chapter 7 - Options
173

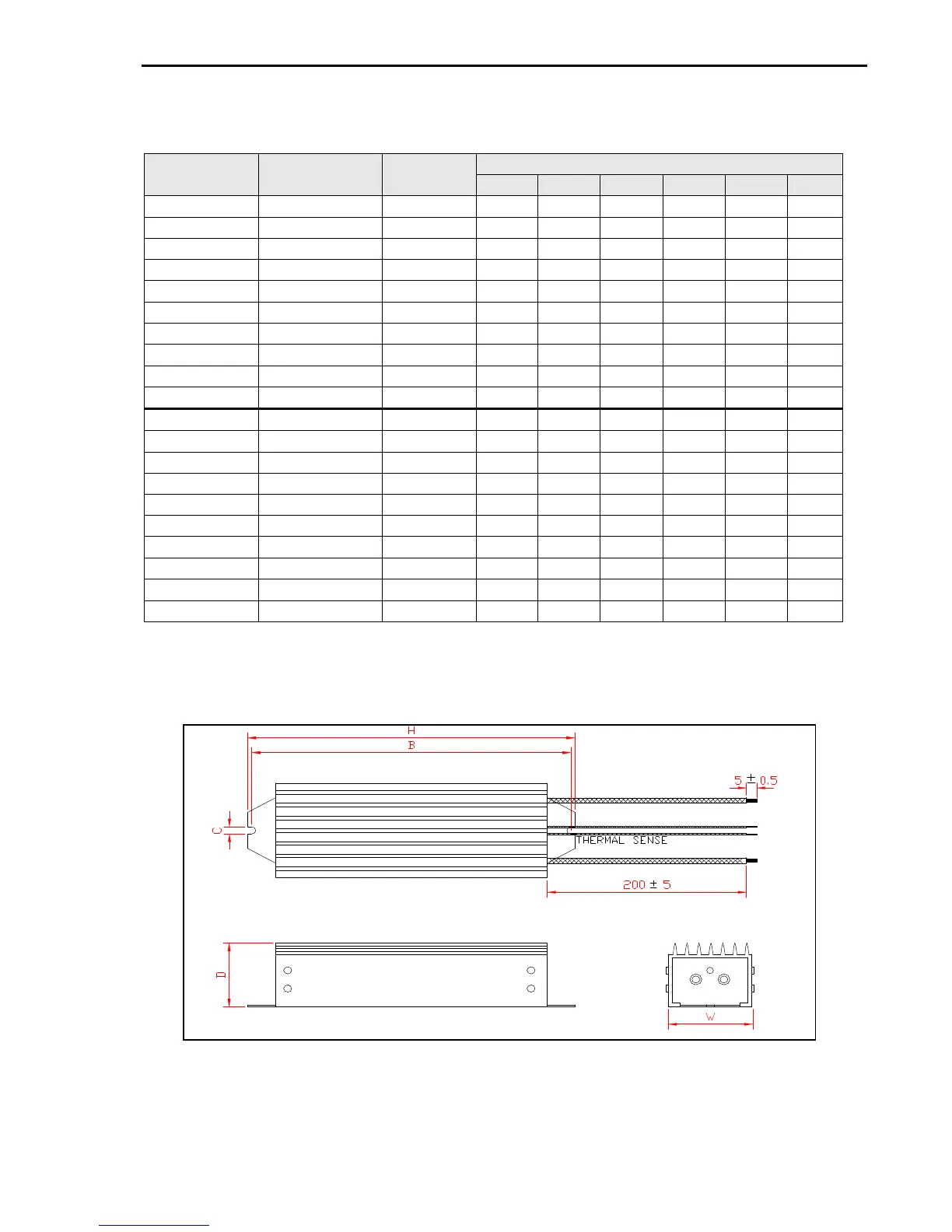

4) DB Resistor Dimensions
Dimensions [mm]
DB Resistor Inverter Model Type
W H D A B C
BR0400W150J
SV 008IS5-2 1 64 412 40 - 400 6.3
BR0400W060J
SV 015IS5-2 1 64 412 40 - 400 6.3
BR0400W050J
SV 022IS5-2 1 64 412 40 - 400 6.3
BR0600W033J
SV 037IS5-2 2 128 390 43 64 370 5
BR0800W020J
SV 055IS5-2 3 220 345 93 140 330 7.8
BR1200W015J
SV 075IS5-2 3 220 345 93 140 330 7.8
BR2400W010J
SV 110IS5-2 3 220 445 93 140 430 7.8
BR2400W008J
SV 150IS5-2 3 220 445 93 140 430 7.8
BR3600W005J
SV 185IS5-2 3 220 445 165 140 430 7.8
BR3600W005J
SV 220IS5-2 3 220 445 165 140 430 7.8
BR0400W600J
SV 008IS5-4 1 64 412 40 - 400 6.3
BR0400W300J
SV 015IS5-4 1 64 412 40 - 400 6.3
BR0400W200J
SV 022IS5-4 1 64 412 40 - 400 6.3
BR0600W130J
SV 037IS5-4 2 128 390 43 64 370 5
BR1000W085J
SV 055IS5-4 3 220 345 93 140 330 7.8
BR1200W060J
SV 075IS5-4 3 220 345 93 140 330 7.8
BR2000W040J
SV 110IS5-4 3 220 445 93 140 430 7.8
BR2400W030J
SV 150IS5-4 3 220 445 93 140 430 7.8
BR3600W020J
SV 185IS5-4 3 220 445 165 140 430 7.8
BR3600W020J
SV 220IS5-4 3 220 445 165 140 430 7.8
