LS SV150iS5-4 User Manual

Chapter 4 – Quick start procedures
52
4.1 Operating using keypad
1. Apply AC power.
2. LCD: Press [▲] key three times.
7-Seg: Rotate the encoder knob until
‘03’ is displayed.
3. LCD: Press [PROG] key.
7-Seg: Press [PROG/ENT] key.
4. LCD: Press [▼] key one time.
7-Seg: Rotate the encoder knob left.
5. LCD: Press [PROG] key.
7-Seg: Press [PROG/ENT] key.
6. Press [PROG/ENT] key.
7. LCD: Press [PROG] key.
7-Seg: Press [PROG/ENT] key.
8. LCD: Press [SHIFT/ESC] key and
press [▲] key to increase the
command frequency.
7-Seg: Rotate the encoder knob right
to change the command frequency.
The changing digit moves by pressing
the [SHIFT/ESC] key.
9. LCD: Press [ENT] key to save the
data.
7-Seg: Press [PROG/ENT] key to
save the data.
10. LCD: Press [FWD] or [REV] key to
start motor.
7-Seg: Press [RUN] key to start
motor.
11. Press [STOP/RESET] key to stop
motor.

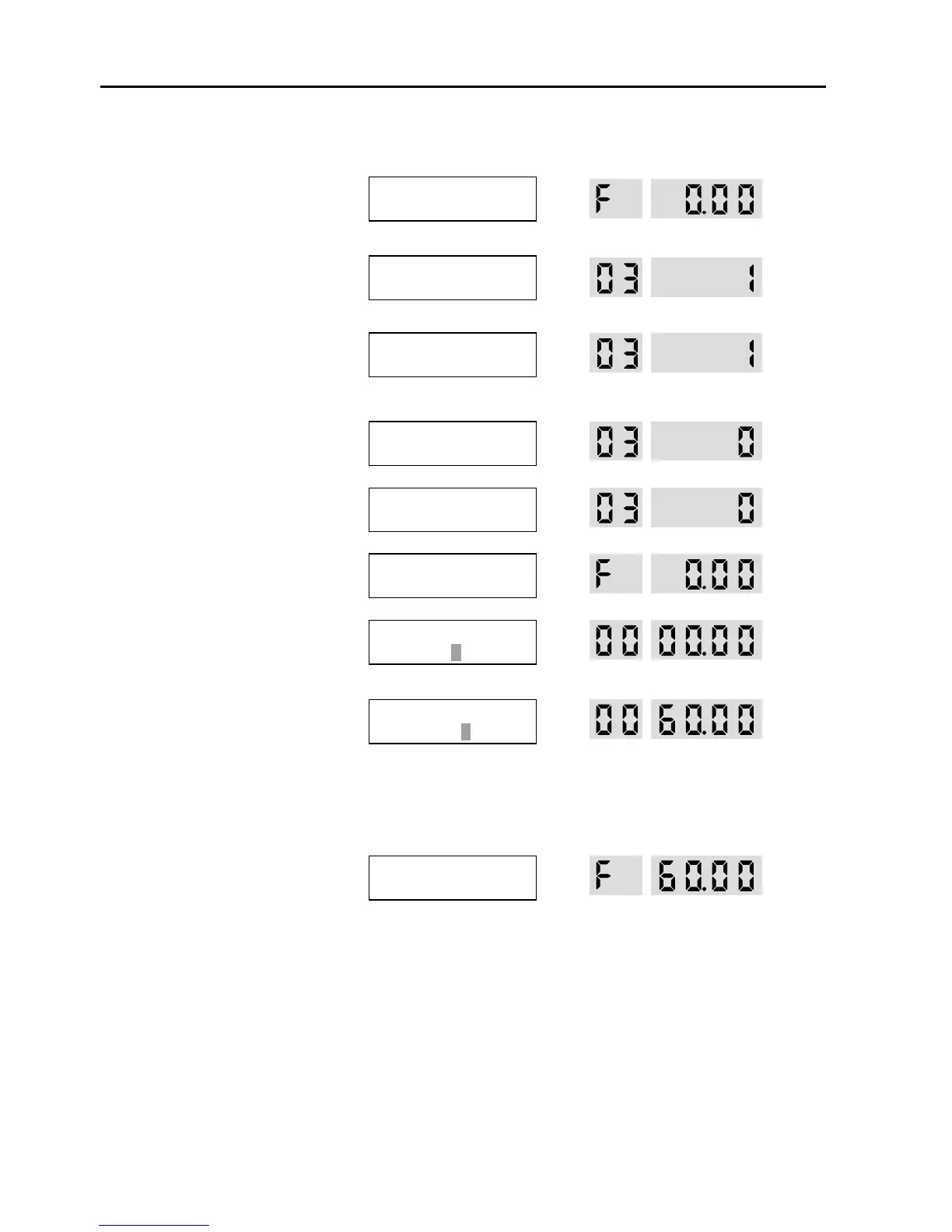

LCD Display 7-Segment Display
DRV ► T/K 0.0 A
00 STP 0.00Hz
DRV ► Cmd. freq
00 0.00Hz
DRV ► Cmd. freq
00 60.00Hz
DRV ► K/K 0.0 A
00 STP 60.00Hz
DRV ► Drive mode
03 Fx/Rx-1
DRV ► Drive mode
03 Fx/Rx-1
DRV ► Drive mode
03 Keypad
DRV ► Drive mode
03 Keypad
The PROG/ENT LED turned ON.
The PROG/ENT LED is turned ON.
The DRV LED is ON.
The DRV LED is turned ON.
DRV ► K/K 0.0 A
00 STP 0.00Hz
The PROG/ENT LED is turned ON.
The PROG/ENT LED is turned ON.
The FWD or REV LED starts blinking.
The RUN LED starts blinking.
To change the motor running
direction, change DRV 13 to
‘
1
’
.
The STOP/RESET LED starts blinking.
The STOP/RESET LED starts blinking.
