LS SV150iS5-4 User Manual

Chapter 7 - Options
176

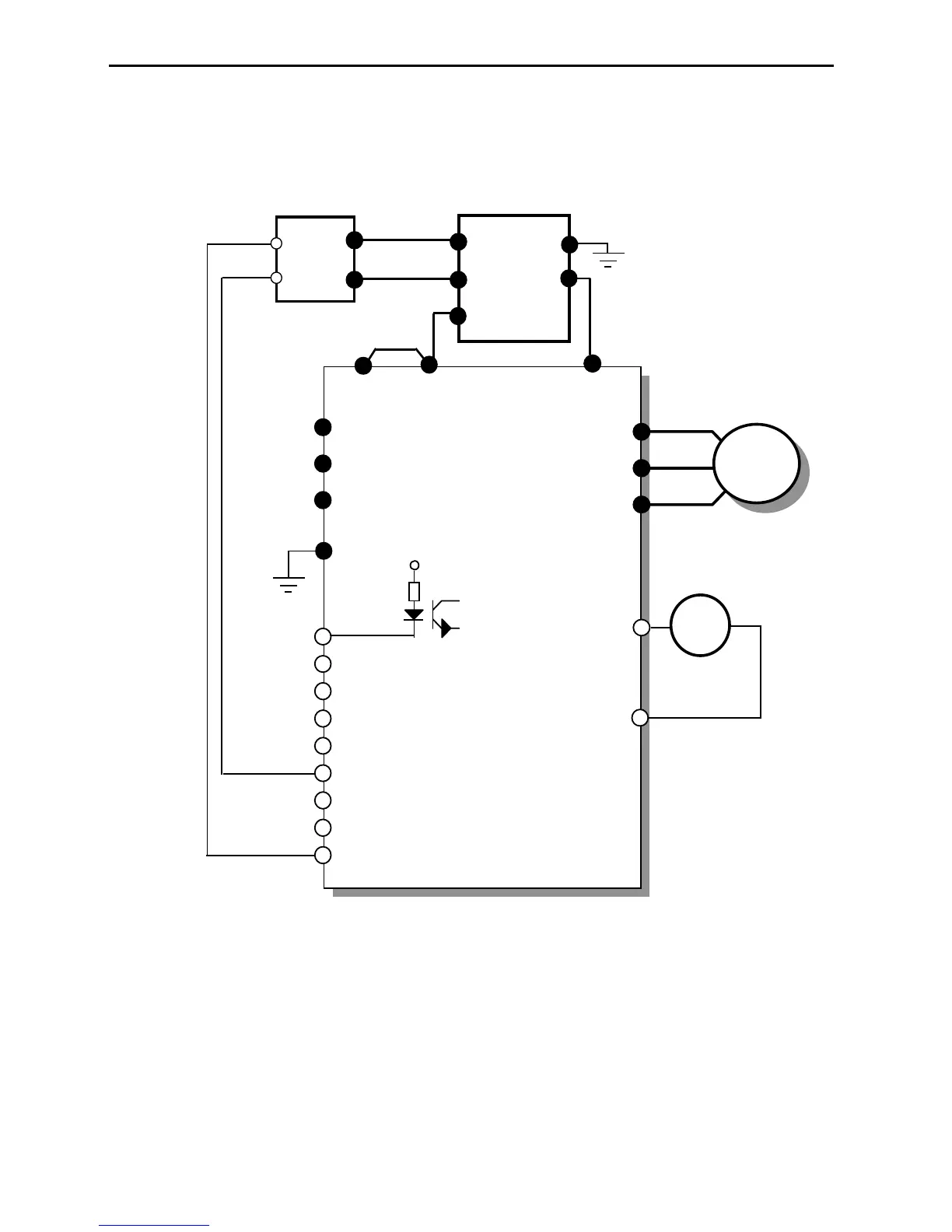

3) DB Resistor/Unit wiring for 15-100 HP Inverter
IM
U
V
W
G
R
S
T
P2
D
B
Resistor
FX
RX
BX
RST
JOG
P2
P3
FM
+
FM
5G
Analog freq
output
2)
(0-10V)
P1
REV Run / Stop
FWD Run / Stop
Fault reset
Jog
Max Current thru
PC: 5mA
CM
24 V
TH1
TH2
Max distance between N &N: 5m
Wires should be Twisted.
Multi-function input terminal
(I/O-12 Setting: Ext Trip-B)
P1
Short
N
N
B1
G
B2
B2
B1
DB
Unit
Max distance between
P & P2: 5m
P
Emergency stop
