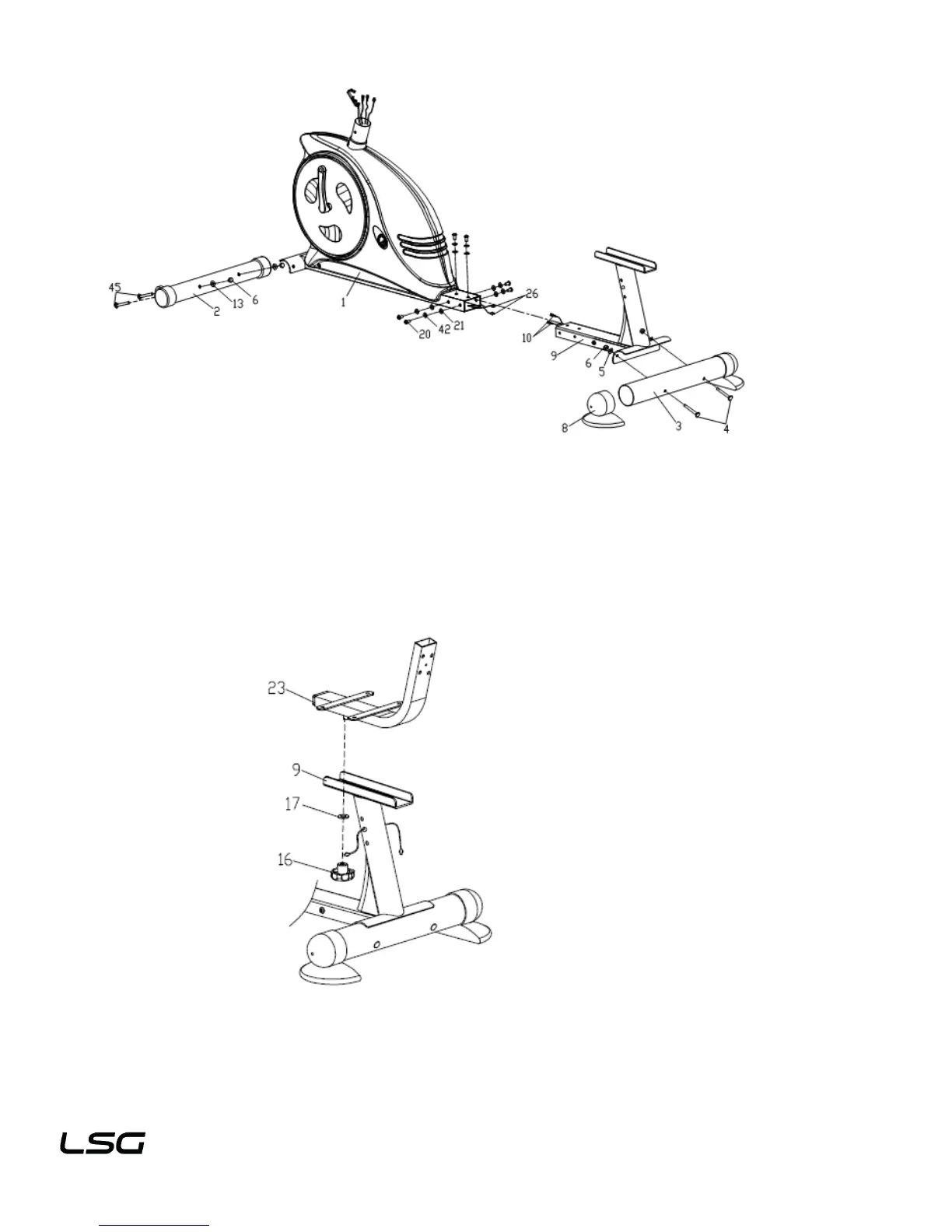

STEP 2:
1. Cover two the rear end cap (8) to the ends of the rear stabilizer (3) respectively.
2. Lock the rear stabilizer (3) to the rear main frame (9) with carriage bolt (4), arc washer (5) and acorn nut
(6).
3. Lock the front stabilizer (2) to the front main frame (1) with carriage bolt (45), arc washer (13) and acorn
nut (6).
4. Connect the extension pulse wire 1 (10) with the extension pulse wire 2 (26) together, then fix the front
main frame (1) to the rear main frame (9) with hex nut (20), spring washer (42) and flat washer (21).
STEP 3:
1. Secure the seat frame (23) on the rear main frame (9) with flat washer (17) and plum knob (16),
adjusting to a suitable distance, then fasten tightly.
