LSI SAS 9300-8e User Manual

LSI Corporation
- 8 -
LSI SAS 9300-8e PCI Express to 12Gb/s SAS Host Bus Adapter User Guide
December 2013
Technical Support
Thermal and Atmospheric Limits

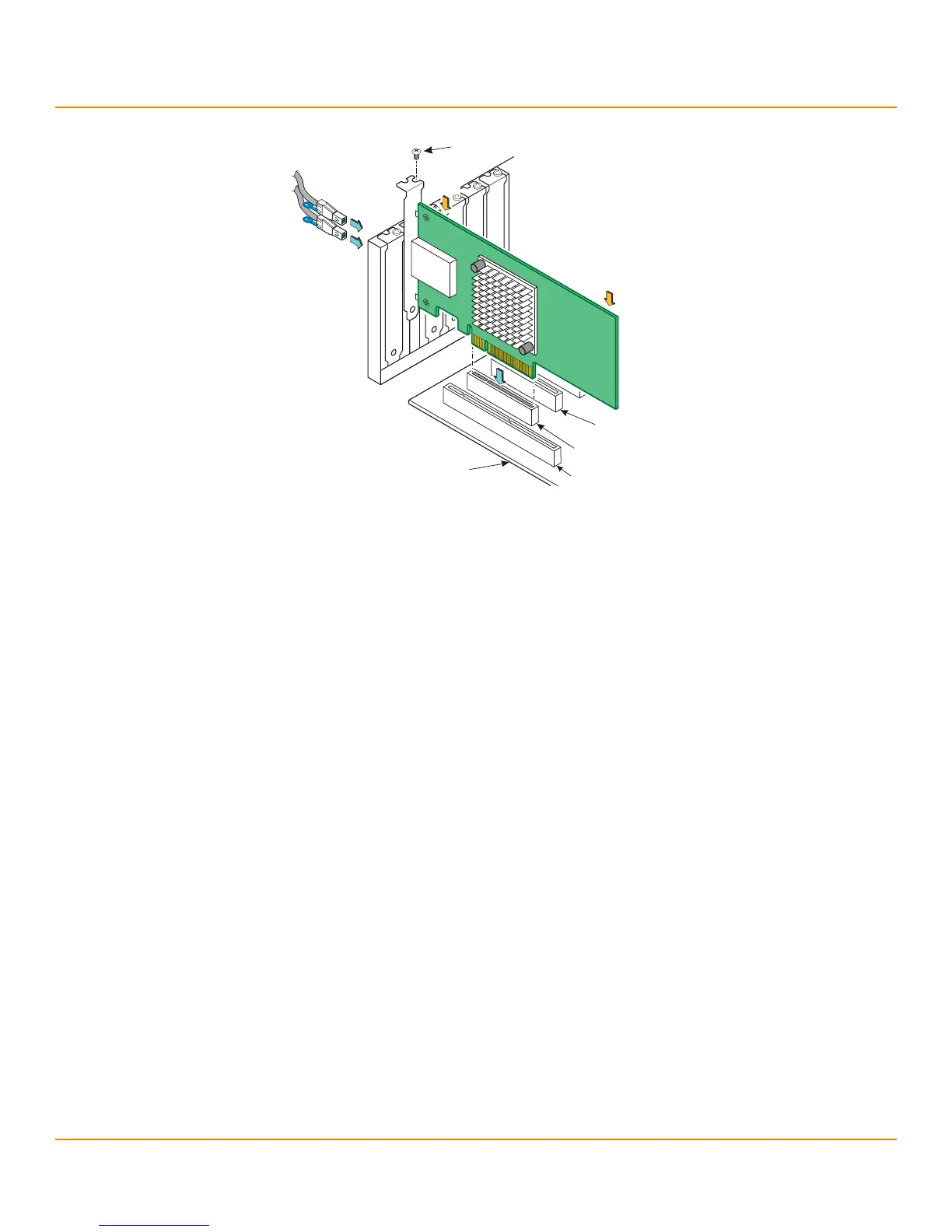

Figure 2 Install an LSI 12Gb/s x8 HBA in a PCIe Slot
6. Secure the HBA bracket to the system’s chassis. Install the bracket screw, if applicable, or engage the system
retention mechanism to secure the HBA to the system’s chassis.
7. Replace the cover of the chassis.
8. Connect SAS cables between the HBA and the SAS enclosure that contains SATA or SAS devices. The LSI
12Gb/s SAS HBA has two, SFF-8644, external x4 mini-SAS HD connectors. Use a cable with an external mini-SAS
HD connector (SFF-8644) on one end (to connect to the HBA) and the appropriate connector to attach to the
enclosure that contains SAS or SATA devices on the other end.
9. Replace the cover and any power cords, and power up the system. Replace the chassis’s cover, reconnect any
power cords, and reconnect any network cables. Turn on the power.
The hardware installation of your LSI 12Gb/s SAS HBA is complete.
8 Technical Support
For assistance installing, configuring, or running the LSI 12Gb/s SAS HBA, contact LSI Technical Support:
E-mail: support@lsi.com
Phone: 1-800-633-4545 (North America)
00-800-5745-6442 (International)
Website: www.lsi.com/support
?
%DGEOF(OST"OARD
"IT3LOTS
6/NLY
0#)%XPRESS
X3LOT
"IT3LOT
6/NLY
"RACKET
3CREW
0RESS
(ERE
0RESS
(ERE
4O$RIVE
%NCLOSURES
-INI3!3($
%XTERNAL
#ONNECTORS
