LSI System II User Manual

1
Features
The LSI System II contains a current test feature which senses the quality of the electrode contact. If your
electrodes are making poor contact with the tissue, the unit will emit a beeping tone and the LEDs on the
mA output will drop to 0 and ash. If this occurs, recheck your electrodes and lead wires to ensure proper
contact and again increase intensity with the intensity keypads.

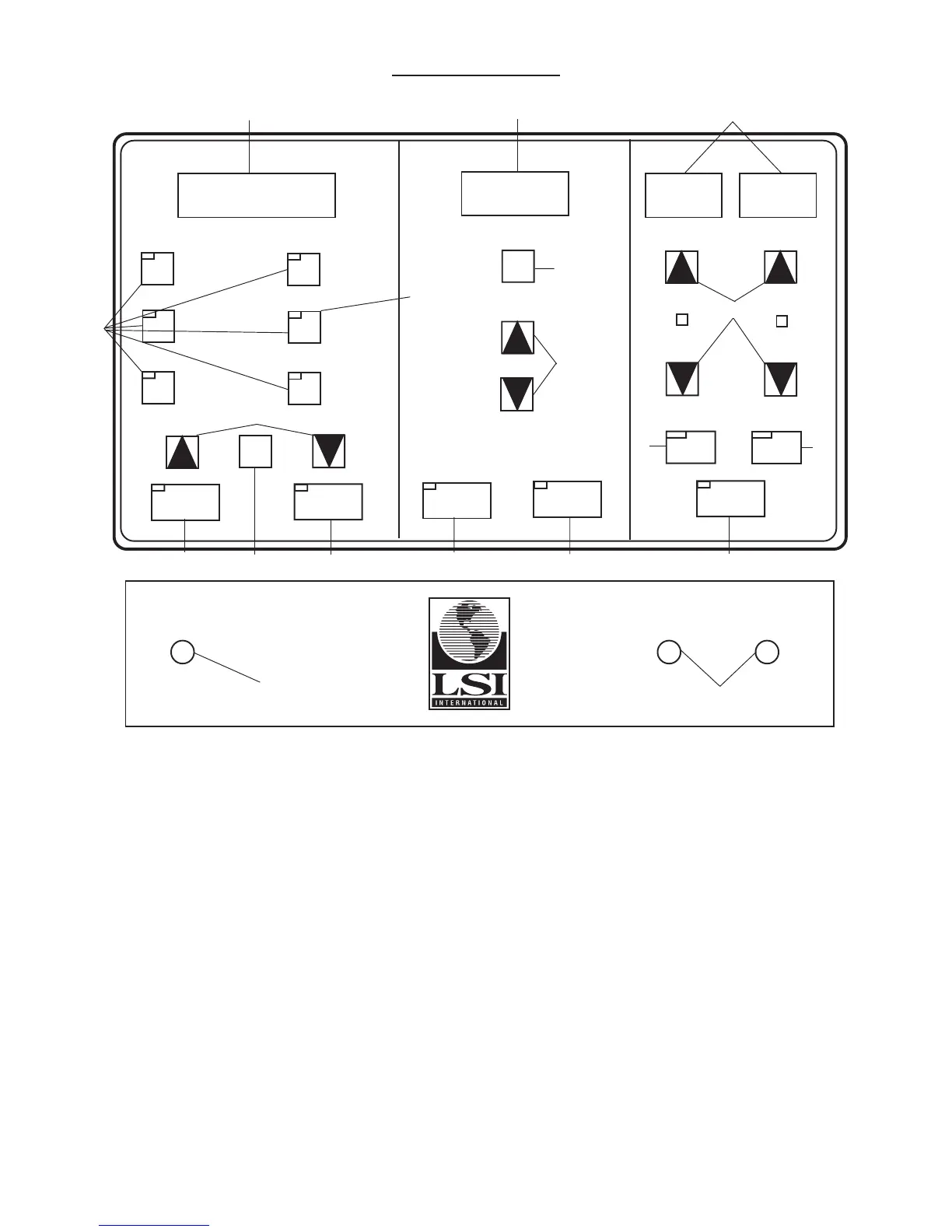

A - FREQUENCY READOUT: Indicates frequency at which the unit is set. Will read actual burst frequency
when in PREMOD mode and will read difference between channel 1 and 2 in frequency difference
mode. (PREMOD light off)..
B - FREQUENCY SELECTION: Use the frequency range of your choice. Frequency readout will show top
of range selected prior to activation of SWEEP mode.
C - FREQUENCY ADJUST: Use to set a specic frequency. As as example, to set 50 Hz, rst set Frequency
Selection at the 1-15 Hz range, then press up the keypad to increase frequency to 50 Hz.
SET
PREMOD
SWEEP
START STOP
SWEEP
START STOP
SET
TIMER
FREQUENCY
VECTOR
3-5 Hz
1-15 Hz
80-120 Hz
1
2
mA mA
1-150 Hz
2500 Hz
4000 Hz
10/10
10/50
B
A
G
L
M
O
P
Q
KJ
I
H
E
D
F
C
N
SYSTEM II
INTERFERENTIAL
REMOTE
STOP
1 2
S
R
The LSI System II contains a current test feature which senses the quality of the electrode contact. If your
electrodes are making poor contact with the tissue, the unit will emit a beeping tone and the LEDs on
the mA output will drop to 0 and flash. If this occurs, recheck your electrodes and lead wires to ensure
proper contact and again increase intensity with the intensity keypads.
A-
B-
C-
FREQUENCY READOUT: Indicates frequency at which the unit is set. Will read actual burst frequency
when in PREMOD mode and will read difference between channel 1 and 2 in frequency difference mode.
(PREMOD light off).
FREQUENCY SELECTION: Use the frequency range of your choice. Frequency readout will show
top of range selected prior to activation of SWEEP mode.
FREQUENCY ADJUST : Use to set a specific frequency.. As as example, to set 50 Hz, first set
Frequency Selection at the 1-15 Hz range, then press up the keypad to increase frequency to 50 Hz.
8
Features
Control Panel
