MODE BUTTON:
The Mode button on unit is used to select the nine different battery charger mode
as below.
1. “12V/STD/SLOW” Mode
Slow charge with 12V Standard or GEL lead acid battery,
MAX 2A
2. “24V/STD/SLOW” Mode
Fast charge with 24V Standard or GEL lead acid battery, MAX
2A
3. “12V/STD/FAST” Mode
Fast charge with 12V Standard or GEL lead acid battery, MAX
16A
4. “24V/STD/FAST” Mode
Fast charge with 24V Standard or GEL lead acid battery, MAX
8A
5. “12V/AGM/FAST” Mode
Fast charge with 12V AGM type lead acid battery, Max 16A.
6. “24V/AGM/FAST” Mode
Fast charge with 24V AGM type lead acid battery, Max 8A.
7. “RECONDITION” Mode
A special mode to recondition your battery after the battery
has not been used for long time or after long deep discharge
that degrade the battery performance.Only for 12V STD/GEL
or AGM batteries with 16A Max. charge current. The Recon-
dition mode may decrease the battery life hence consult your
battery vendor for advise if necessary.
8. “12V/LI/SLOW” Mode
Slow charge with 12V Lipo4 battery, MAX 7A
9. “12V/LI/FAST” Mode
Fast charge with 12V Lipo4 battery, MAX 16A

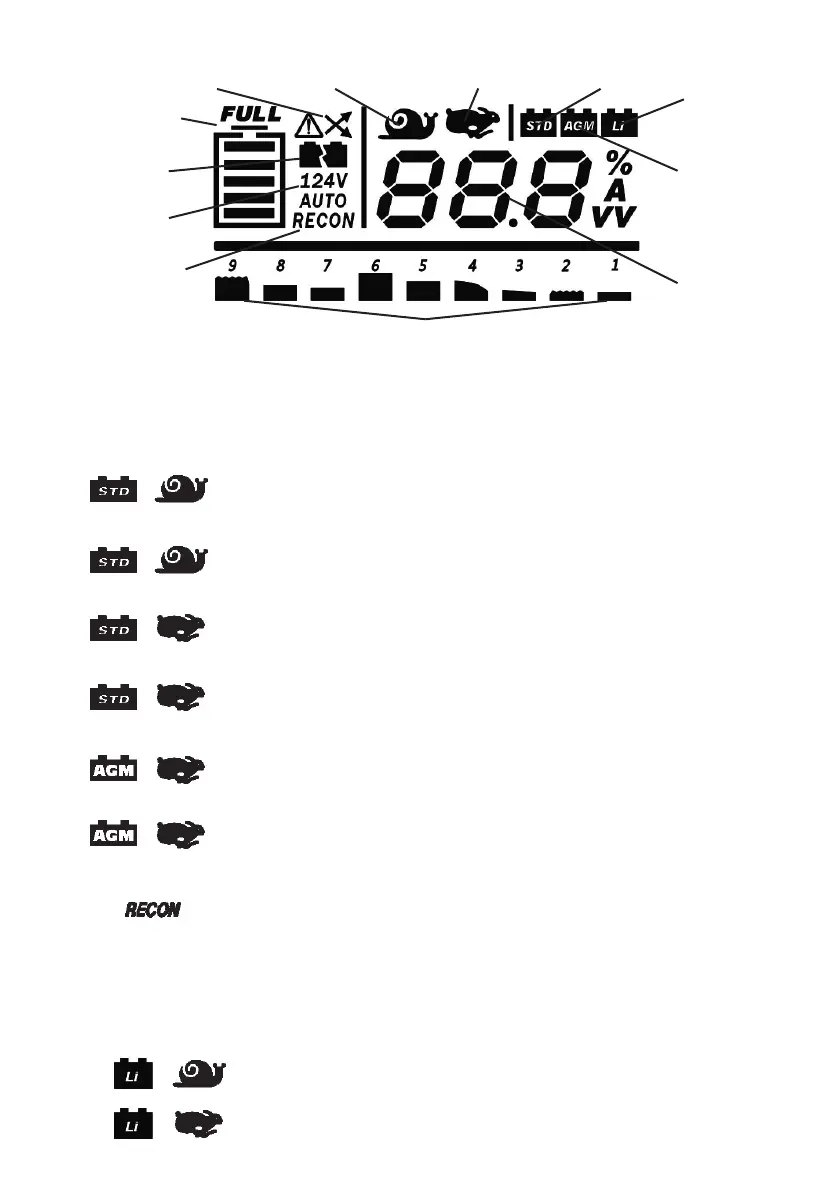

FIG.2
Reverse
Connection
Fail in
Charging
Recondition
Mode
Charging Stage
Battery
Level
Slow Charge
Mode
AGM
Battery
STD/GEL
Battery
Battery
Voltage
Read Out
Fast Charge
Mode
Batteria
Lipo4
12V o 24V
