LTC RVC3500 - Installation; Monitor Installation; Monitor Power Connection

Installation
These instructions do not apply to all vehicles. They are only meant as a general guide
due to the number of different makes & models.
For vehicle specific questions contact your vehicle’s manufacturer.
MONITOR INSTALLATION
When choosing a location to mount the monitor, make sure the monitor is in an area that will not
obstruct your vision while driving.
Choose a Location and Install Power Cable
1.Temporarily place the monitor in the location that you have chosen
2.Route the power cable to the vehicle’s cigarette lighter socket/12V
power outlet. The cable must not interfere with the safe operation of
the vehicle.

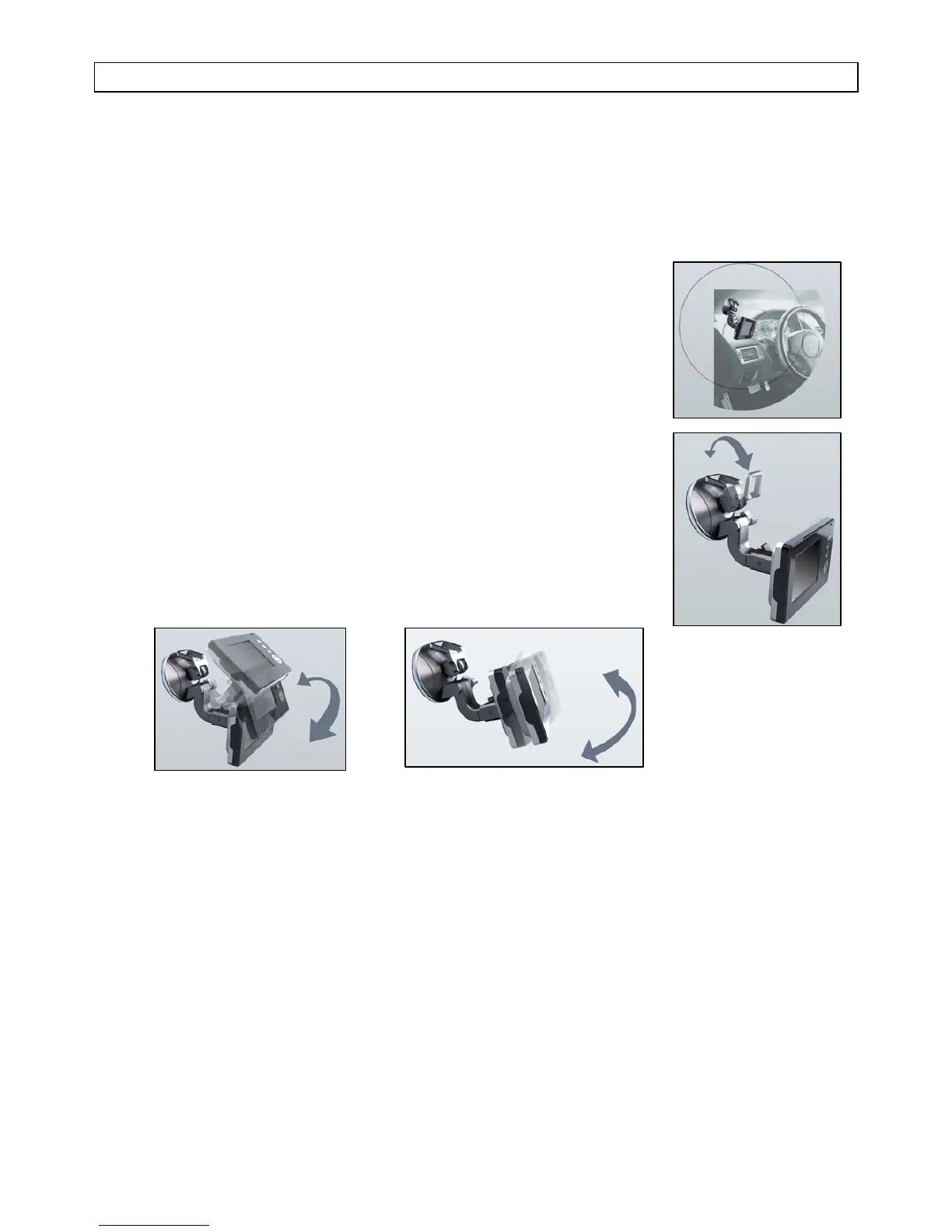

Mounting the Monitor
Before mounting the monitor, clean the mounting surface well.
1.Position the suction mount to the smooth surface which suits your
requirement.
2.Press the suction cap against the smooth surface such as windshield
or dashboard.
3.Press the lock down to attach and fix the mount to the surface.
4.Snap in the monitor to the suction mount.
5.Adjust the mounting arms to suit your view angle to the monitor and
tighten the screws on the mount to fix the position.
To maximize the effectiveness of the suction mount, it is recommended that the application be
performed under the following conditions:
Surface temperature should be between 70
o
F and 100
o
F (21
o
C and 38
o
C).
Application below 50
o
F(10
o
C) should be avoided.
Application should not occur in direct sunlight.
Mounting should be protected from exposure to direct sunlight for a period of 24 hours.
NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN IMAGE MAY TAKE A
FEW SECONDS TO STABLIZE. PLEASE WAIT UNTIL THE IMAGE HAS STABLIZED BEFORE
BACKING UP.
MONITOR POWER CONNECTION
Use the 12 Volt cigarette lighter adaptor plugged into the vehicle’s cigarette lighter socket.
Power Cable with 12 Volt Cigarette Lighter Adaptor
1. Insert the small 12 Volt DC plug of the power cable into the right side of the monitor.
2. Plug the 12 Volt cigarette lighter adaptor into the vehicle’s cigarette lighter socket.
