04

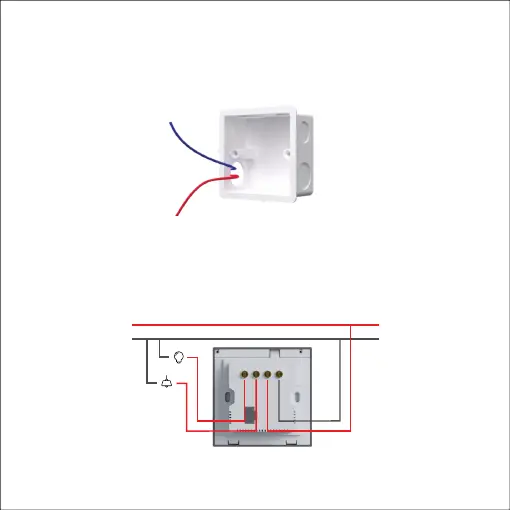

2.Attach the live line to L port of the panel, the null line to N port and the load wires of lights to
L1/L2 port. Make sure the wires are well connected to the switch terminals with no copper
wire exposed.If necessary, connect the network cable to the network socket.
L NL2 L1
Null line(N)
Live line(L)
1.Turn off the circuit breaker and remove any concrete or corrosion that are inside the 86 type
wall box.Trim each wire in the wall box to about 10cm in length.
Installation Steps
(The protection device for the electronic switch cannot be greater than 35A)
