Lubeworks 1813351 - Meter Application to Hose; Operating the Meter

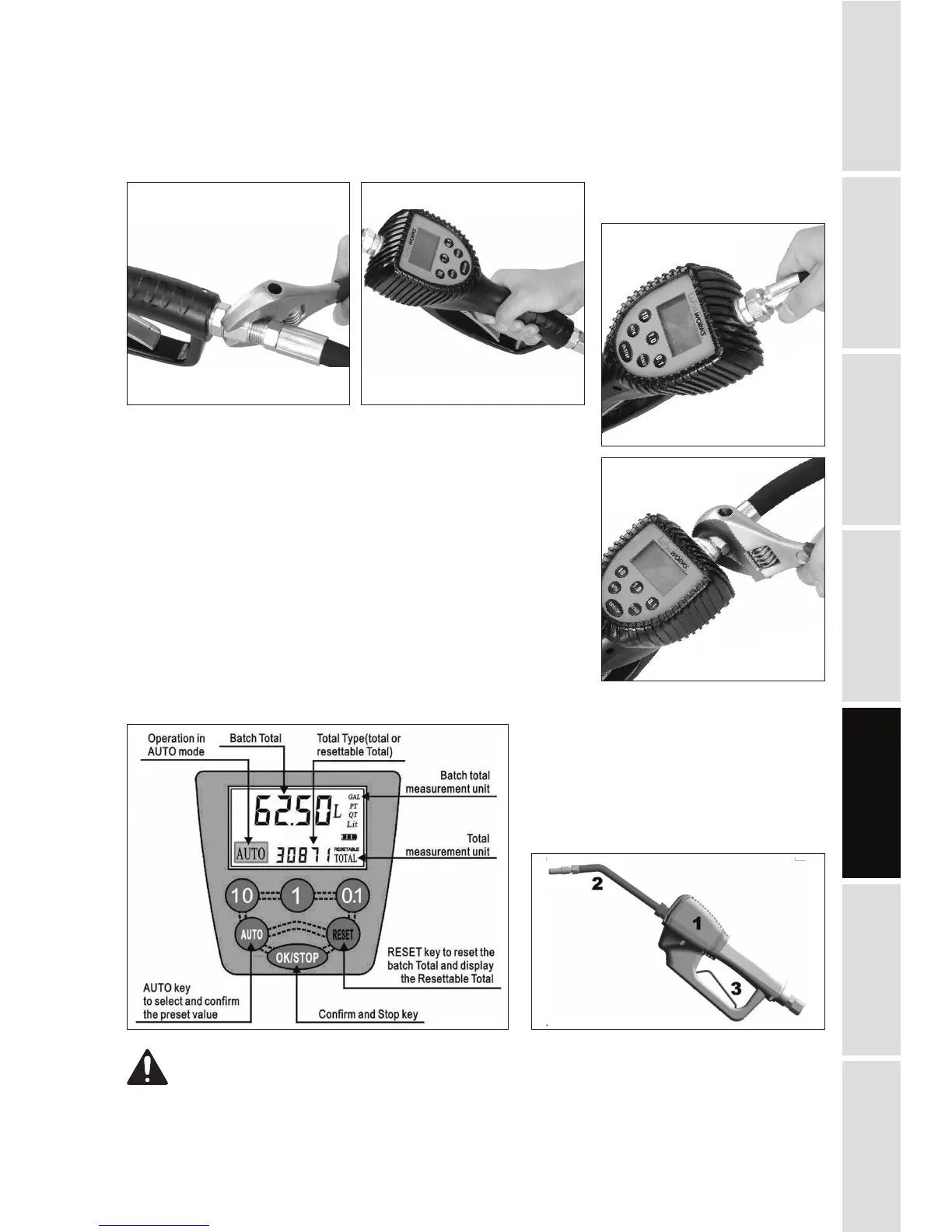

Apply nozzle to meter
Attach the hose
2. Insert zhe metal end of the hose into zhe swivel. Tigthen completely with an open ende
adjustable wrench.
NOTE:The threaded end of the meter always has female threads .the meter end of the hose
must have male threads.apply thrad sealant, anaerobic adhesive or equivalents,to the male
end .the inlet and outlet swvel connections are 1/2” npt 1/2”bsp, depending on meter model.
1. On the opposlte end ,apply sealant to the end of the nozzle
2. Thread the nozzle onto the meter .screw it in tigtly with an ,
open ended ,adjustable wrench.
3. Open all dispense position shut-offvalves . start the pump to
pressurize system.
4. Before use ,to ensure accuracy.purge all air from the fluid
lines and dispense valve(s).
3. OPERATING THE METER
WARNING
After using the manual anti-drip valve, it is important to discharge the pressure
between the chambers (1) and the manual valve (2) of the spout. First, the pump
must be switched off. Then, unscrew the tip of the valve (2). During this
discharging operation, do not use the trigger (3).
E3
TECHNICAL
DETAILS
INTENDED USE
FACTORY
SETTINGS
TOOL USE
EXPLODED AND
PARTS LIST
OPERATION
TROUBLE
SHOOTING GUIDE
Attach the hose
