5. In battery section of cabinet at power panel (Figure 1), refer to Table A and
remove the fuses associated with battery string 2 (either
F1
,
F2
, and
F6
or
F3
,
F4
, and
F6
).

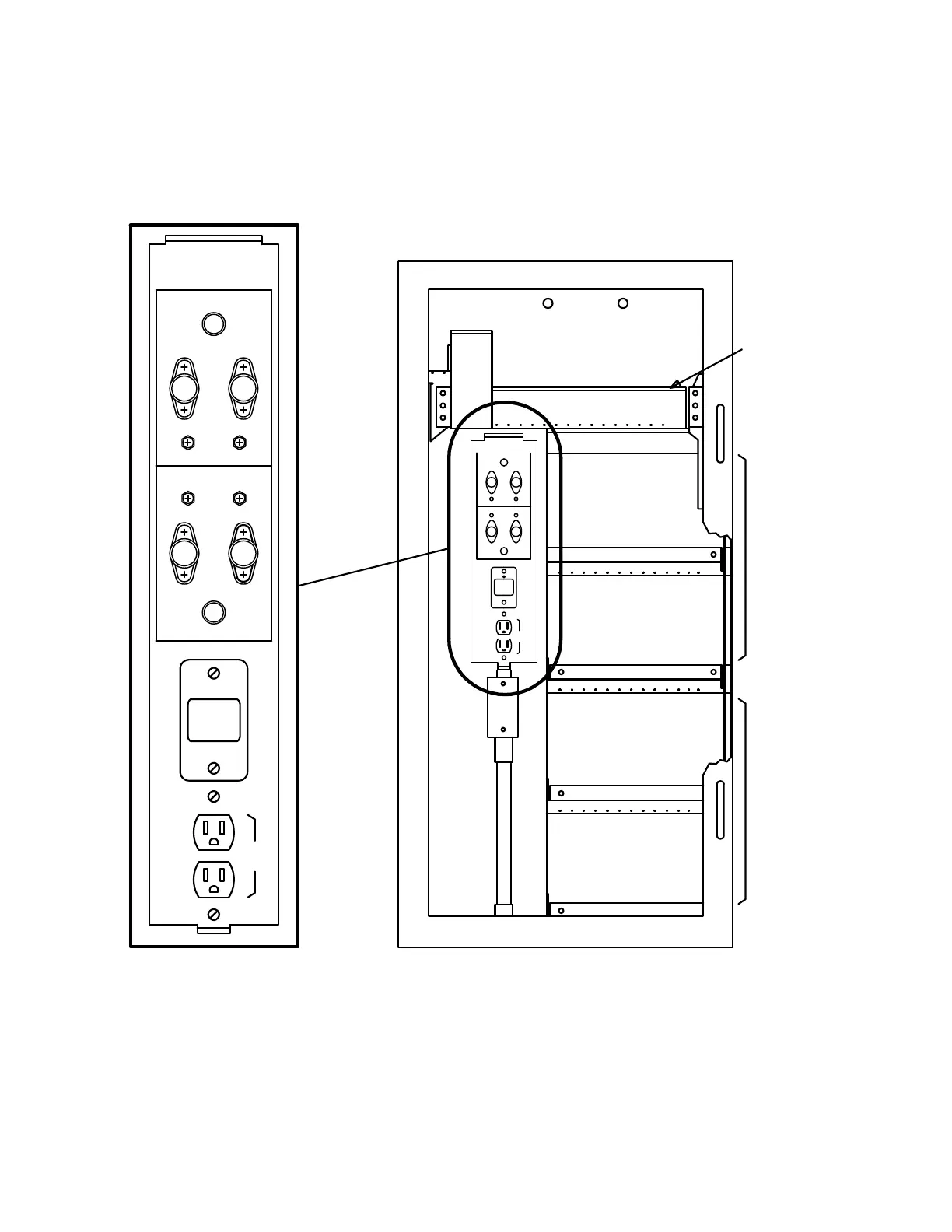

Figure 1 – Battery Section of 51A Cabinet Showing Power Panel
51 cabinet
FUSE
AMP
20
J2J1
-+
TEST
BAT
F4
STRING 1 (LOWER)
STRING 2 (UPPER)
-+
J4J3
TEST
BAT
FUSE
AMP
20
F6
F3
HEATERS
FUSE
5 AMP
BATTERIES
15 AMP OUTLET
F5
FUSE
5 AMP
F2F1
AC
120V
HEATERS
F7
power panel
STRING 1
BATTERY
STRING 2
BATTERY
STRING 3
BATTERY
BATTERIES
F7
