DLP-533
Check 197A Battery Load Test Set for Proper
Operation
1. Obtain
197A BATTERY LOAD TEST SET
(Figure 1).

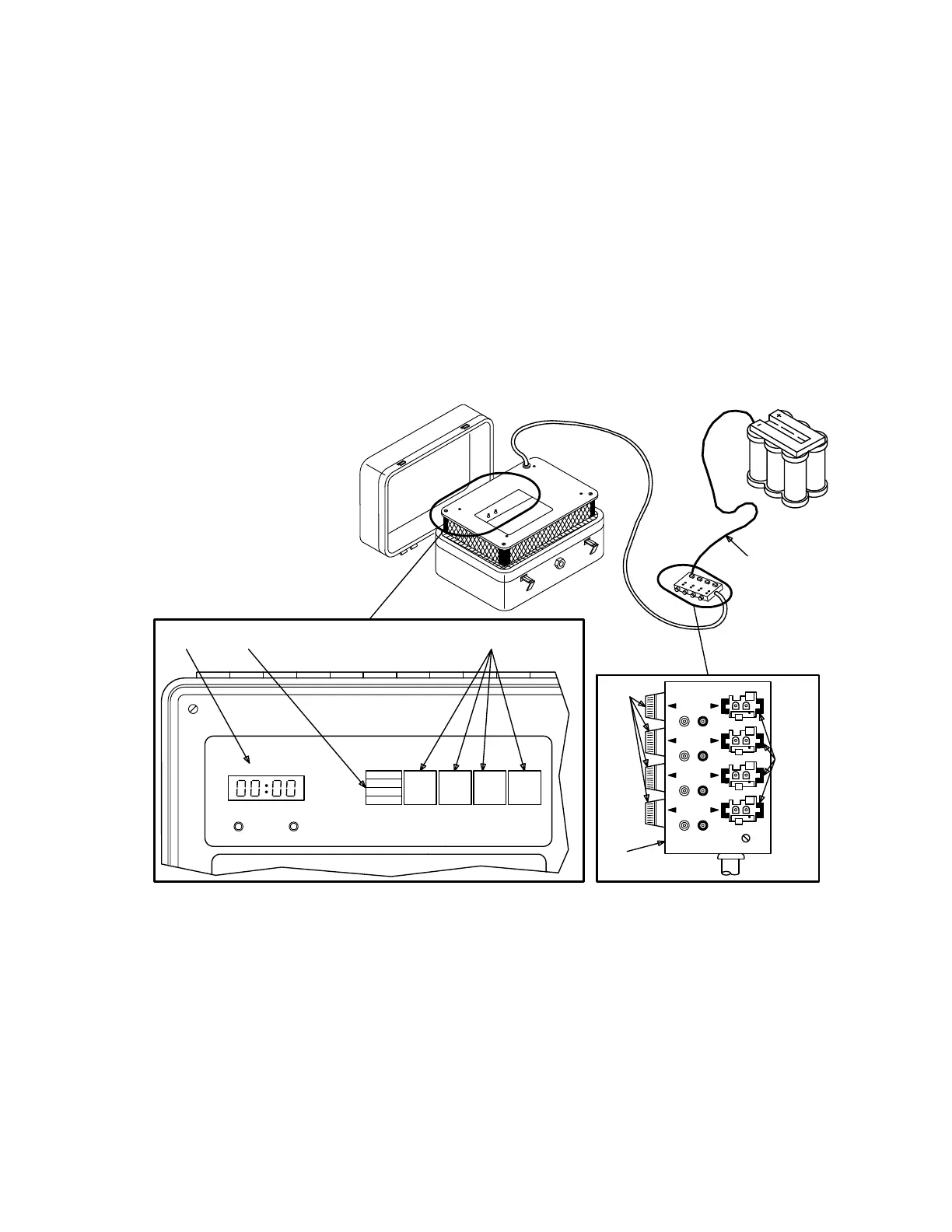

Figure 1 – 197A Battery Load Test Set Arrangement
2. Remove cover from test set.
