363-205-401 Power Up: DLP-503
Issue 7, March 1997 Page 7 of 10

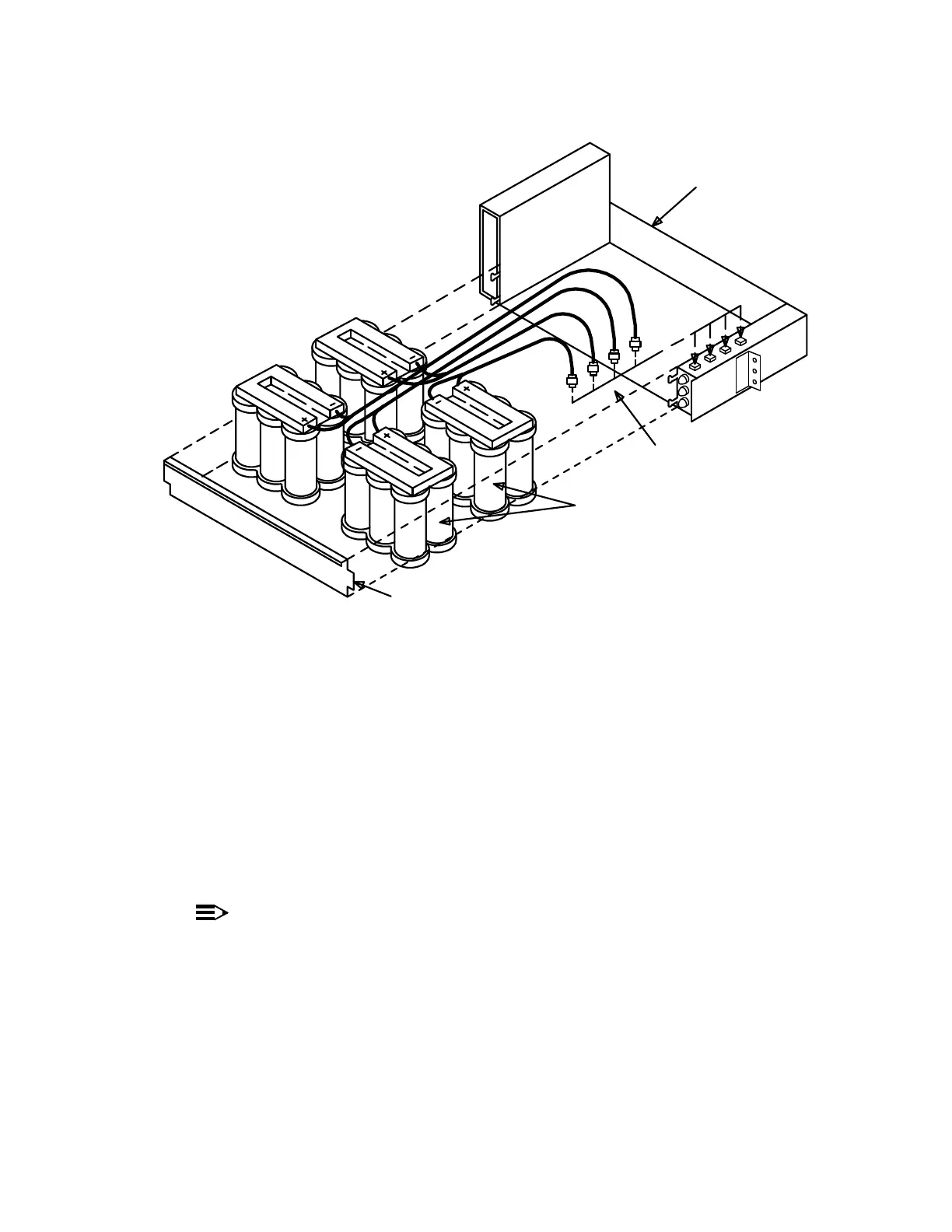

Figure 3 – Battery Placement and Connections
25.
NOTE:
Four battery jacks can be plugged into any of four plugs on shelf, in any
order.
Connect four battery lead jacks to four plugs (
P1, P2, P3,
and
P4
) on top of
battery shelf.
26. Reinstall front cover on battery shelf.
SHELF
BATTERY
FRONT COVER
BATTERIES
KS-21906, L4
LEAD JACKS
BATTERY
ED7C678-( )
