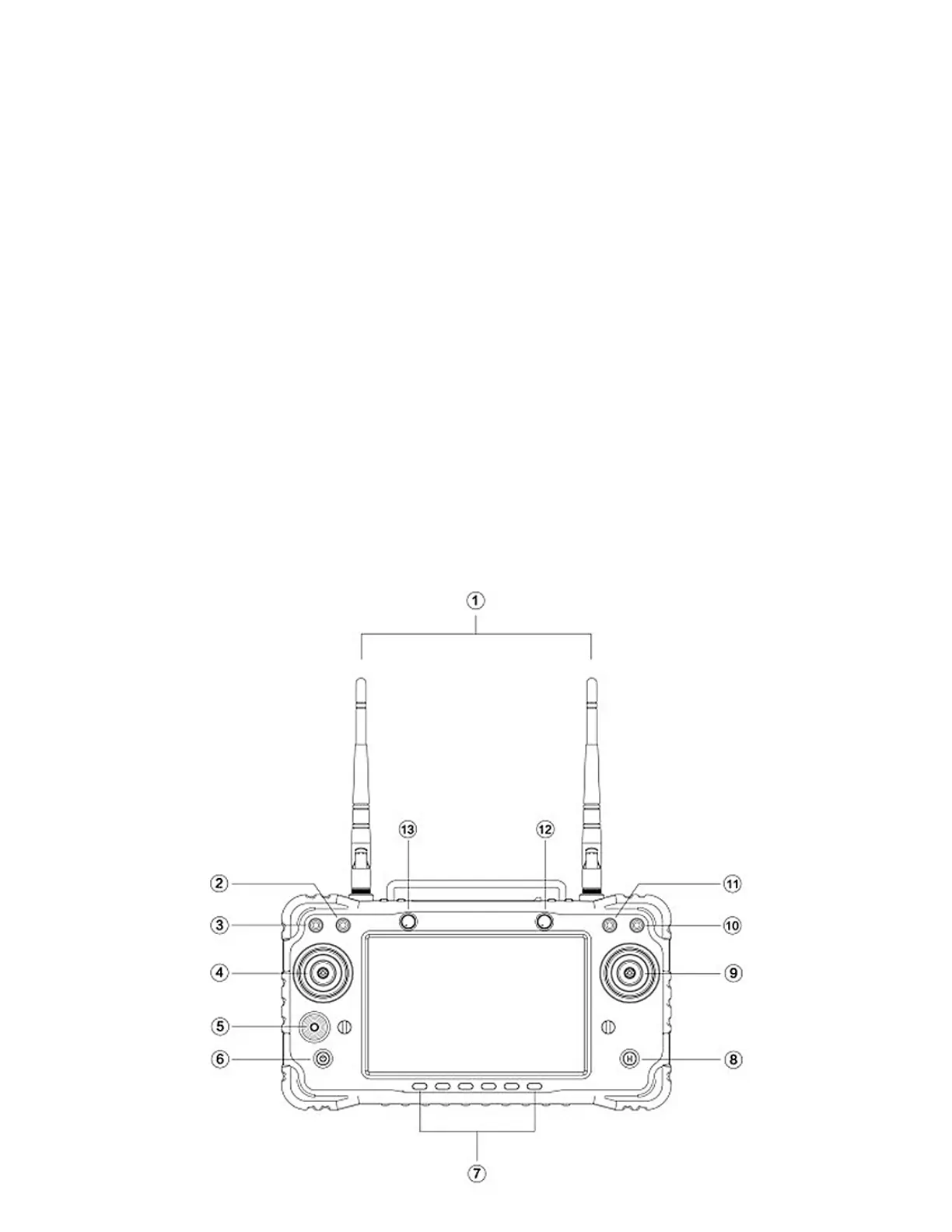

Remote Control Diagram
1. Di Pole Antennas
2. Sprayer Relay
3. Not in Use.
4. Left Joystick (Controls elevation and yaw or rotation)
5. D Pad for menu navigation
6. Power Button
7. Flight Control Modes
a. ABC Buttons = Loiter or GPS Mode
b. DEF= Landing mode
8. Aircraft Flashlight
9. Right Joystick (Controls Pitch & Roll)
10. Obstacle Avoidance Switch
11. Arm / Disarm the Aircraft (Starts and stops motors)
12. Aux (not in use)
13. Aux (not in use)
