Figure 5: Installation
Sketch
7.3.4 Sensors with Rain Gauge
 Installation on the top of the mast or on crossbar with distance to the mast
 Mast or crossbar mounting shall be exactly perpendicular, otherwise the precision of the
rain gauge may be influenced.
Note: The location should be selected so that pollution of the rain gauge funnel by falling
leaves etc. can be avoided as far as possible.
7.3.5 Sensors with Global Radiation Measurement
 Installation on top of the pole
 Shadow free location, if possible 360° free view to the horizon at the height of the
pyranometer
 Distance to shadow casting objects (trees, buildings) at least 10 times of the object height
relative to the sensor.

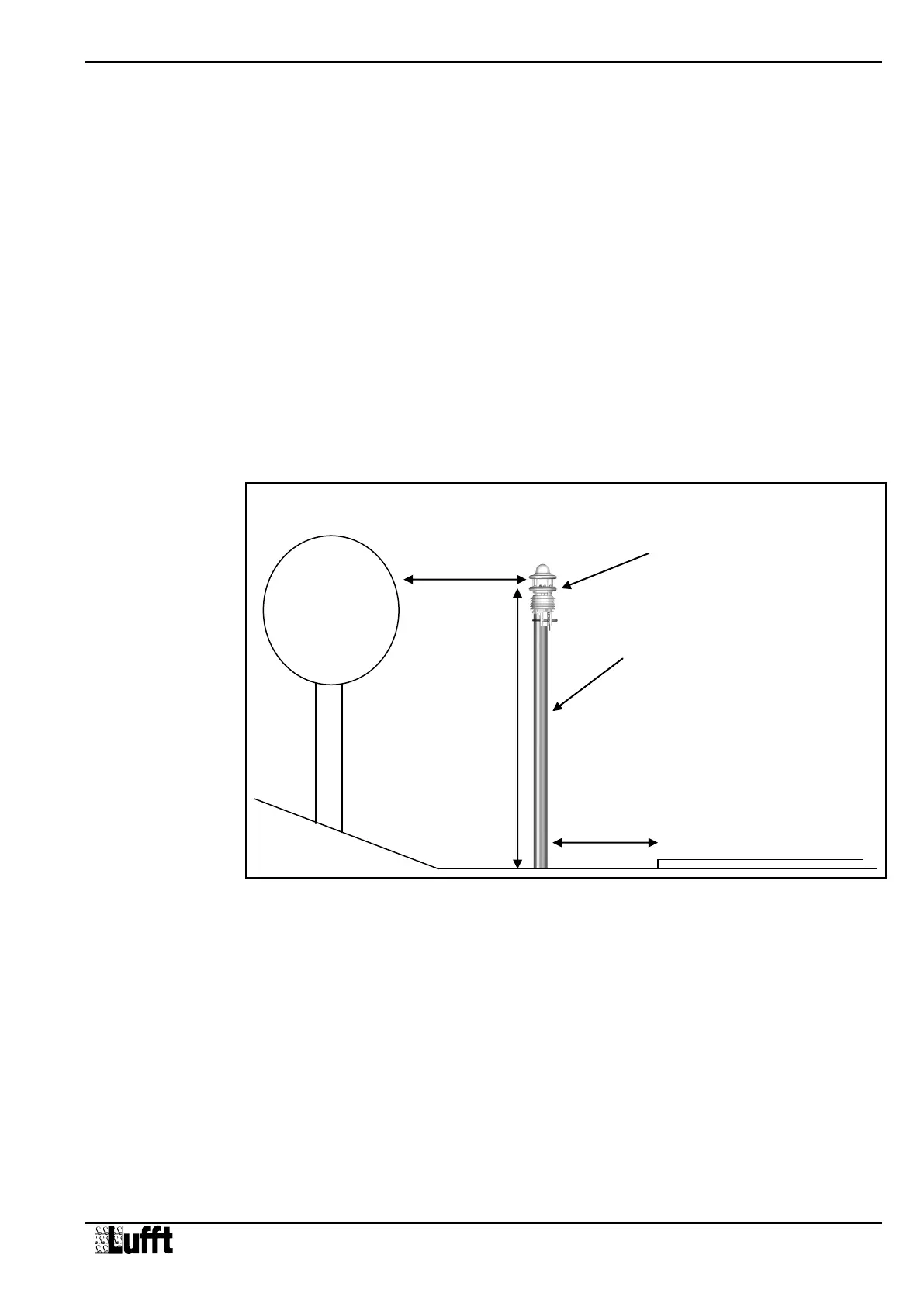

7.3.6 Installation Sketch
Example WS600-UMB:
Road
carriageway
min. 1 m
min. 4.5 m
WS600-UMB
Mast
min. 5 m
Tree, bush
etc.
