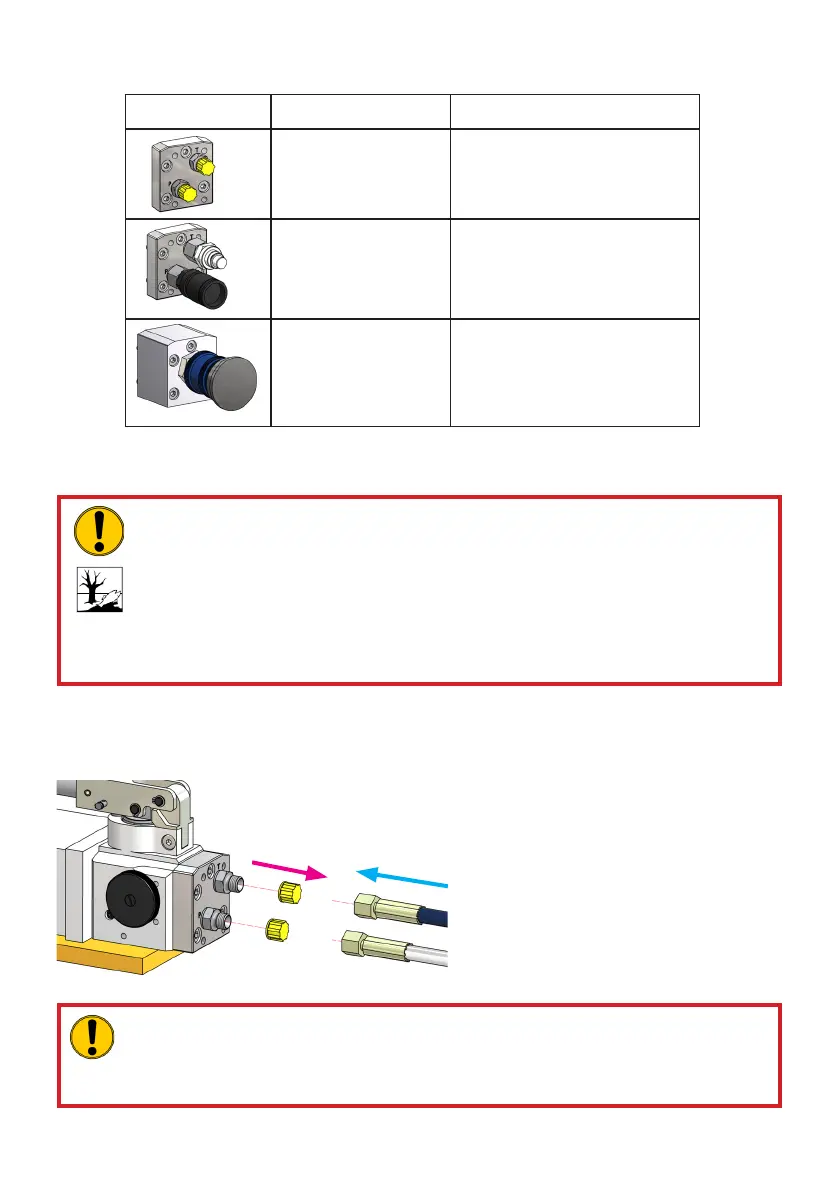

5.3 Adapter blocks
Adapter block Function/use
Connection plate
with ttings
Possibility of connecting hose
lines directly to the hydraulic
pump
Connection
plate with quick-
disconnect-couplings
Possibility of connecting hose
lines directly to the hydraulic
pump via quick-disconnect-
couplings
Connection plate
with monocouplings
Possibility of connecting hose
lines directly to the hydraulic
pump via monocoupling
6. Connection options for rescue equipment
ATTENTION!
Make sure to store all plugs, screw plugs and/or dust caps in a way that
prevents them from getting dirty or lost.
After completion of the work, seal o󰀨 all lines using screw plugs and/or dust
caps to prevent contamination of the hydraulic pump.
When connecting lines to the hydraulic pump, we recommend positioning it
vertically so that the ports point upward. This reduces the danger of hydraulic
uid escaping.
6.1 Fittings
The hose lines are connected via ttings to the hydraulic pump.
1.
2.
1. First remove the closure caps from
the ttings.
2. Then, you can connect the hose lines
to the ttings and tighten them with a
tightening torque of M
A
= 40 Nm.
ATTENTION!
The return hose must always be connected at the "T" port of the
connection block.
The supply hose line must instead be connected at the "P" port.
