Luma MF26B 26 - Step 5: Connecting Power Supply & Water Hoses

6
Step 5: Connecting the Power Supply & Water Hoses

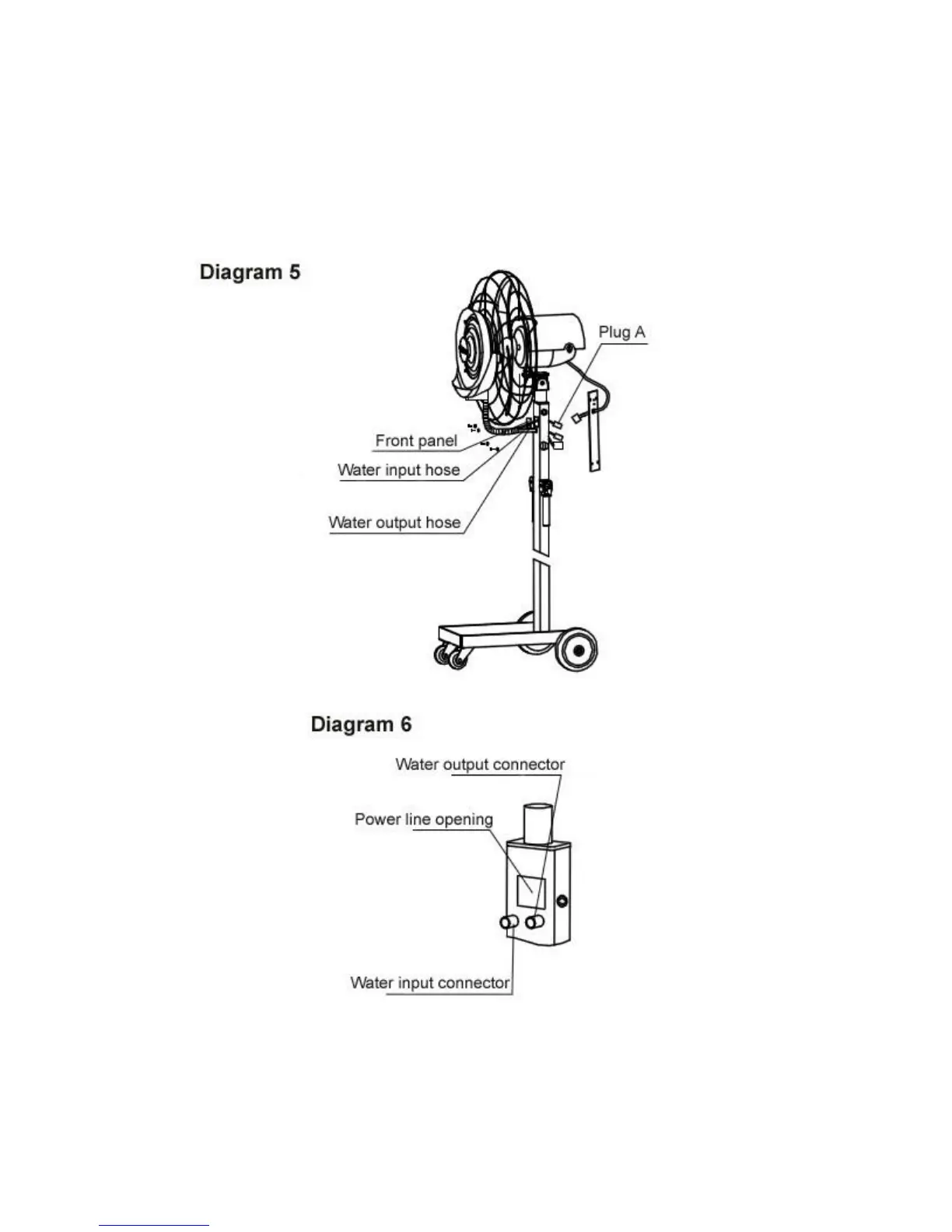

a. Refer to diagrams 5 and 6. Insert the power line that is connected to the fan head into the power
line opening and screw in the front panel to the stand pole.
b. Insert the water output hose (hose #1) and water input hose (hose #2) into the appropriate
connectors on the stand pole as indicated in diagram 6.
