MENU Screen
- Shows the version of the device

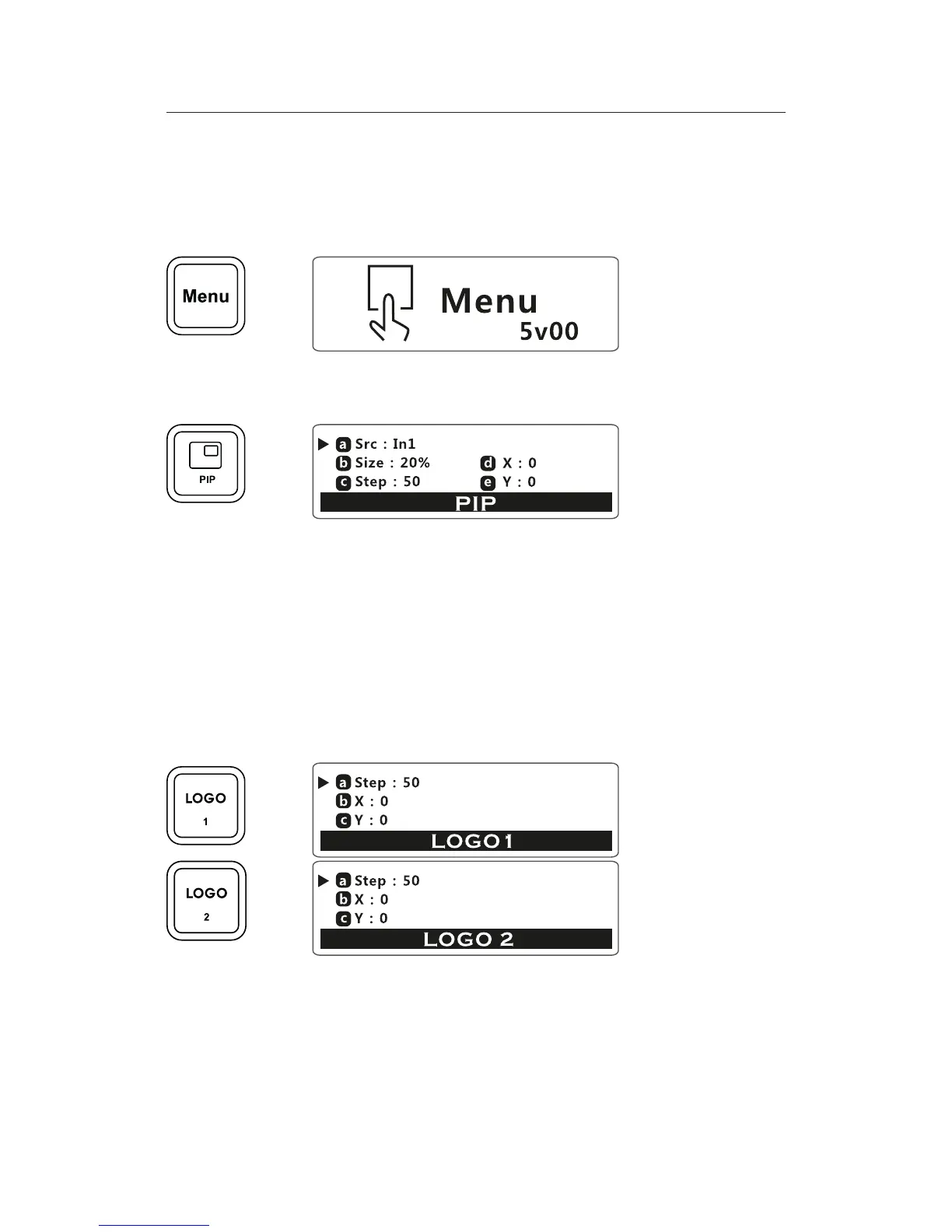

PICTURE IN PICTURE (PIP) Screen
[a] Src: Input source selection
[b] Size: In-picture size settings (10% ~ 50% of the screen size)
[c] Step: Units of pixels affecting effects of buttons [d] and [e]
[d] X: Horizontal displacement of In-picture screen
[e] Y: Vertical displacement of In-picture screen
(Upper-left corner of the screen has the coordinates 0,0)
LOGO1 & LOGO2 Screen
[a] Step: Units of pixels affecting effects of button [b] and [c]
[b] X: Horizontal displacement of the logo
[c] Y: Vertical displacement of the logo
(Upper-left corner of the screen has the coordinates 0,0)
