Lumantek's ez-SHV+ is an SDI to HDMI converter with Display and Scaler.
The ez-SHV+ does more than just coverting. Through its 2.7 inch TFT-LCD, it dislays the
video input.
The display also shows an eye pattern for video quality monitoring, the resolution of
incoming video and approximate cable length relative to the quality of the video.
Features
①
Inputs & outputs
Input: 1 x SD/HD/3G-SDI (BNC 75Ω)
Output: 1 x SD/HD/3G HDMI (Type A)
1 x SD/HD/3G-SDI loop (BNC 75Ω)
1 x Analog audio stereo
②
Supports SD/HD/3G
③
TFT-LCD Display (2.7 inch)
④
Push switch for mode change

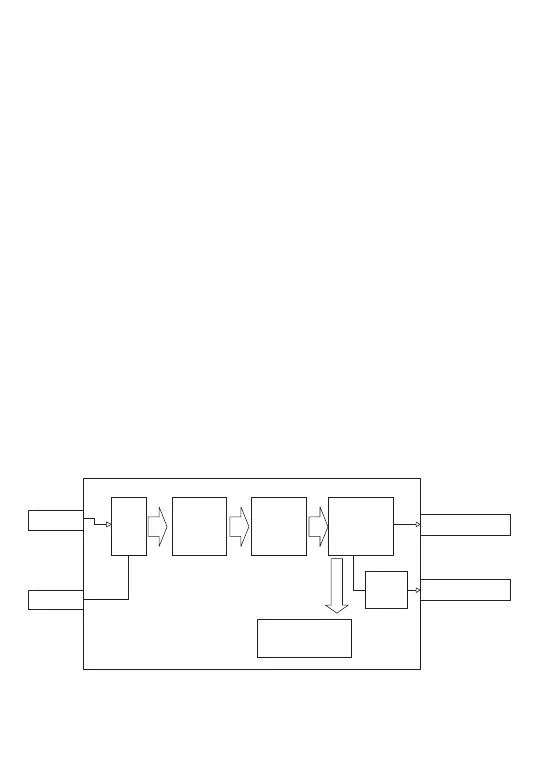

Diagram
01. ez-SHV+
(SDI to HDMI Converter with Display and Scaler)
EQ
SDI IN
SDI OUT
LCD Display
DAC
SDI RX
Scaler
HDMI TX
Audio OUT
HDMI OUT
