02. Interface

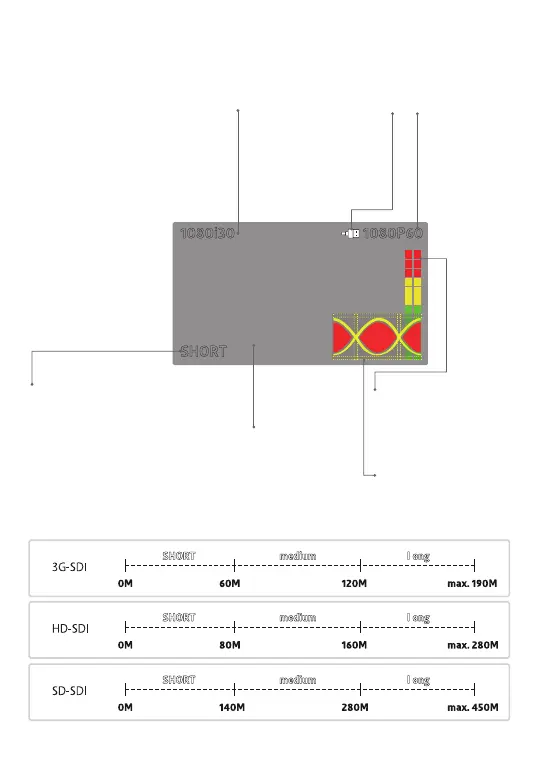

LCD Displays
1080P601080i30
SHORT
Input Resolution
SDI Input resolution
* Shown as “Unknown”
where there is no input.
* If input is 3G Level-B,
1080P60B will be displayed.
Input cable length
Shows approximated cable
length in 3 stages
(SHORT, MEDIUM, LONG).
* Please refer to the chart
below for your reference.
* Reference cable is
Belden 1694A cables.
Input video
SDI input video display
* In case 3G-SDI Level-B
is inserted, grey scale
bars will be shown instead
Input Audio Level Bar
Shows Audio Level Bar
if input audio signal
quality is poor.
Input SDI Eye Pattern
Shows thick eye
pattern if input video
signal quality is poor.
HDMI Output Resolution
* Resolution configured
through DIP Switch
Output Resolution
SHORT medium l ong
SHORT medium l ong
SHORT medium l ong
