LumaPro 2LBL9 - Code Configuration; Setting Codes and Groups; Switch Locations

2 598-1326-01
DETECT
CODES
1 2 3 4
DAY
NIGHT
NIGHT
ONLY

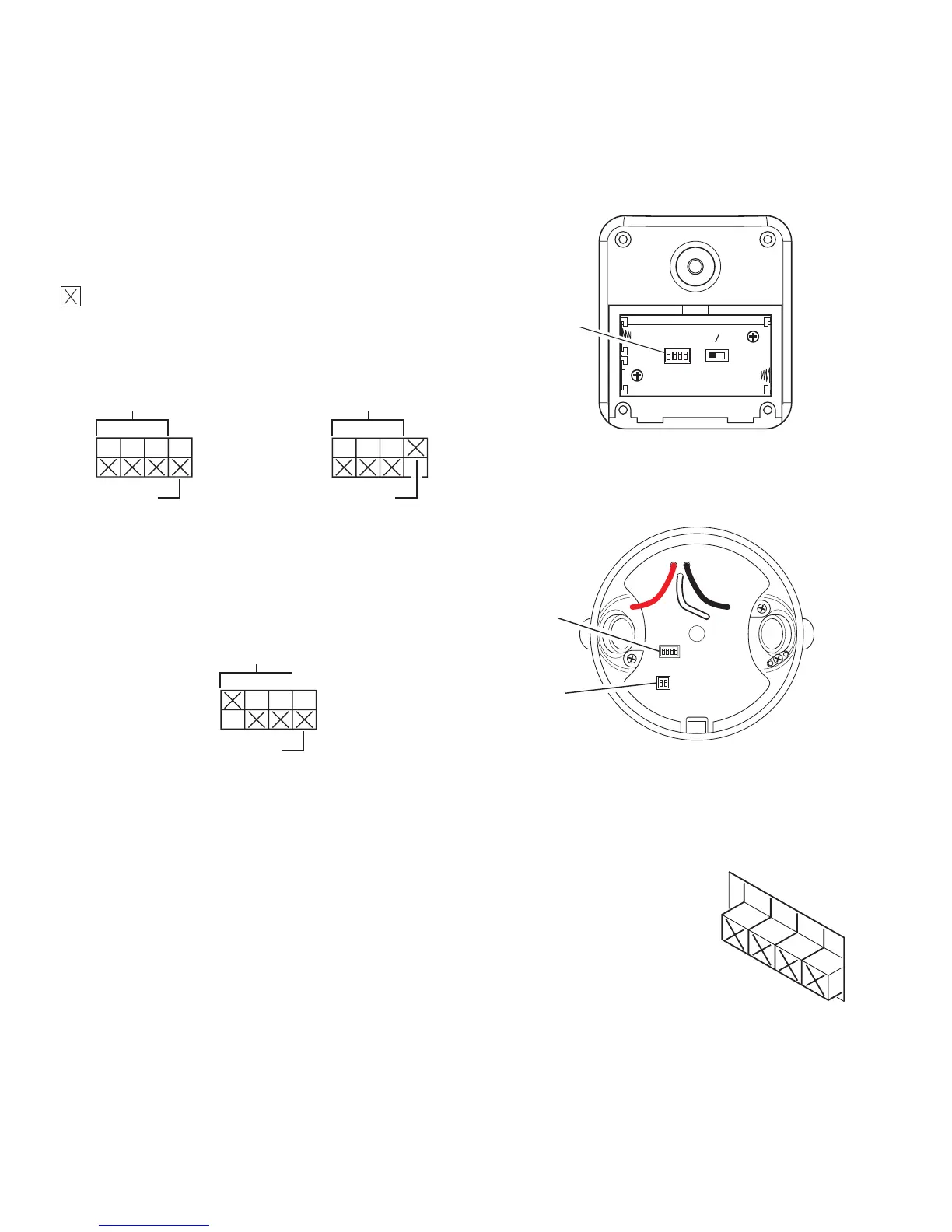

CODE SWITCH LOCATIONS
180° Motion Sensor
Code
Switches
ON
1 2 3
4
Close-Up of Typical Code Switch
(Factory Default Setting is Off)
Note: The “X” has been
placed on the switches to
help clarify the code settings
on the previous page.
RAINTIGHT
OUTDOOR USE ONLY.
FOR WALL AND CEILING MOUNT ONLY
SUITABLE FOR WET LOCATION
MADE IN CHINA
THIS END UP
ã
Halogen Security Light and Floodlight
Code
Switches
LAMP MODE
switches
ON
1 2 3
4
ON
1 2 3
4
ON
1 2 3
4
CODE SETTINGS
Note: Most single system installations will not require any
change to the code setting. Transmitter(s) and receiver(s)
must have the same code and group setting to work together.
Switches 1 through 3 set the code. Switch 4 sets the Group
(A or B). See page 2 for switch locations.
Transmitter(s)/
Receiver(s) Code
Group “B”
Example 1 - Code Settings, System 1
(Factory Setting)
Transmitter(s)/
Receiver(s) Code
Group “A”
( – Indicates Position of Switch)
Example 2 - Code Settings, System 2
Note: When operating more than one system independently of each
other, set each system to a different code. There are 8 codes avail-
able by changing the settings of switches 1 through 3.
Transmitter(s)/
Receiver(s) Code
Group “A”
