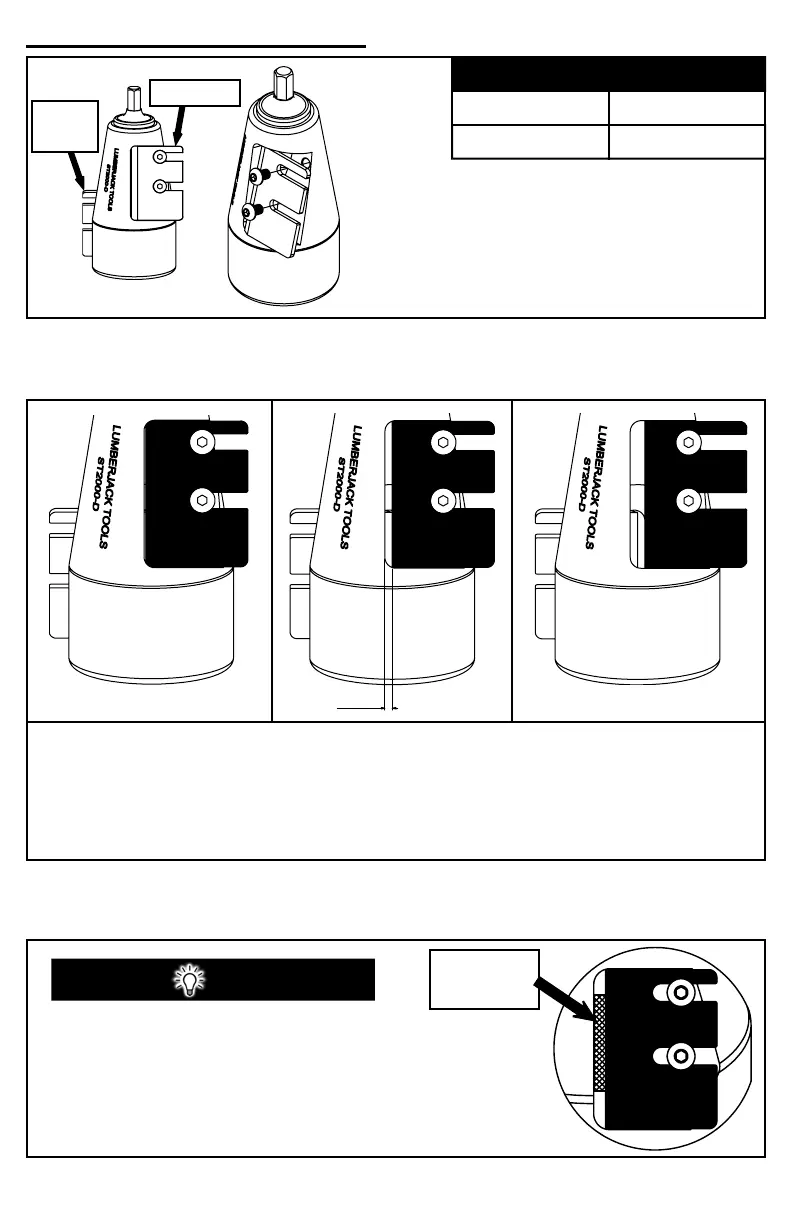

BLADE SETTING: ST2000
● Install and secure the blades with
the Button Head Cap Screws
Max Capacity
Round 2.25”Dia
Square 1.5”x1.5”
Top Blade
Bottom
Blade
(Blade too close)
Correct
(Blade too far)
3/16”
It is critical that both blades have the same “offset”. Blade offset refers to
the gap size between the blade edge and the side of the pocket. 3/16” is
the standard gap size to use.
● The tool will not cut with 5/16” or greater spacing
● The tool will not cut with 1/16” or less spacing
WRONG
WRONG
Cardboard
Spacer
● The cardboard box that the tool
comes in is about 3/16” thick
● Remove a piece of box to use as a
quick spacer for blade gap setting
TIP
