LUMBERJACK TOOLS ST2000 - ST3000 Blade Setting; Blade Positioning Procedure; Blade Gap Setting Tip

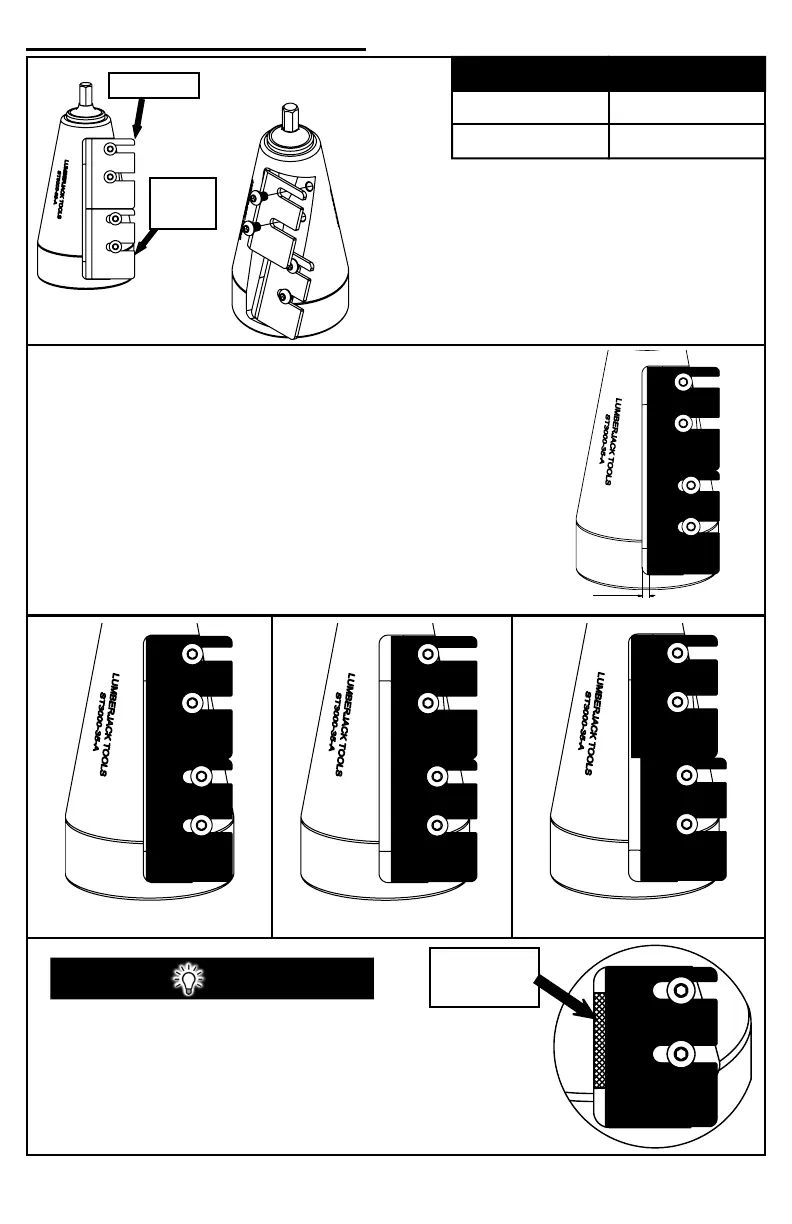

BLADE SETTING:ST3000
Max Capacity
Round 2.90”DIA
Square 2.0”x2.0”
Top Blade
Bottom
Blade
6
● Install and secure the blades with
the Button Head Cap Screws
Cardboard
Spacer
● The cardboard box that the tool
comes in is about 3/16” thick
● Remove a piece of box to use as a
quick spacer for blade gap setting
(Blades too close)
WRONGWRONG WRONG
(Blades too far) (Blades not parallel)
It is critical that both blades have the same
“offset”. Blade offset refers to the gap size
between the blade edge and the side of the
pocket. 3/16” is the standard gap size to use.
● The tool will not cut with 5/16” or
greater spacing
● The tool will not cut with 1/16” or less
spacing
Correct
3/16”
TIP
