Lumberjack PR12 - Adjusting the Depth of Cut

10

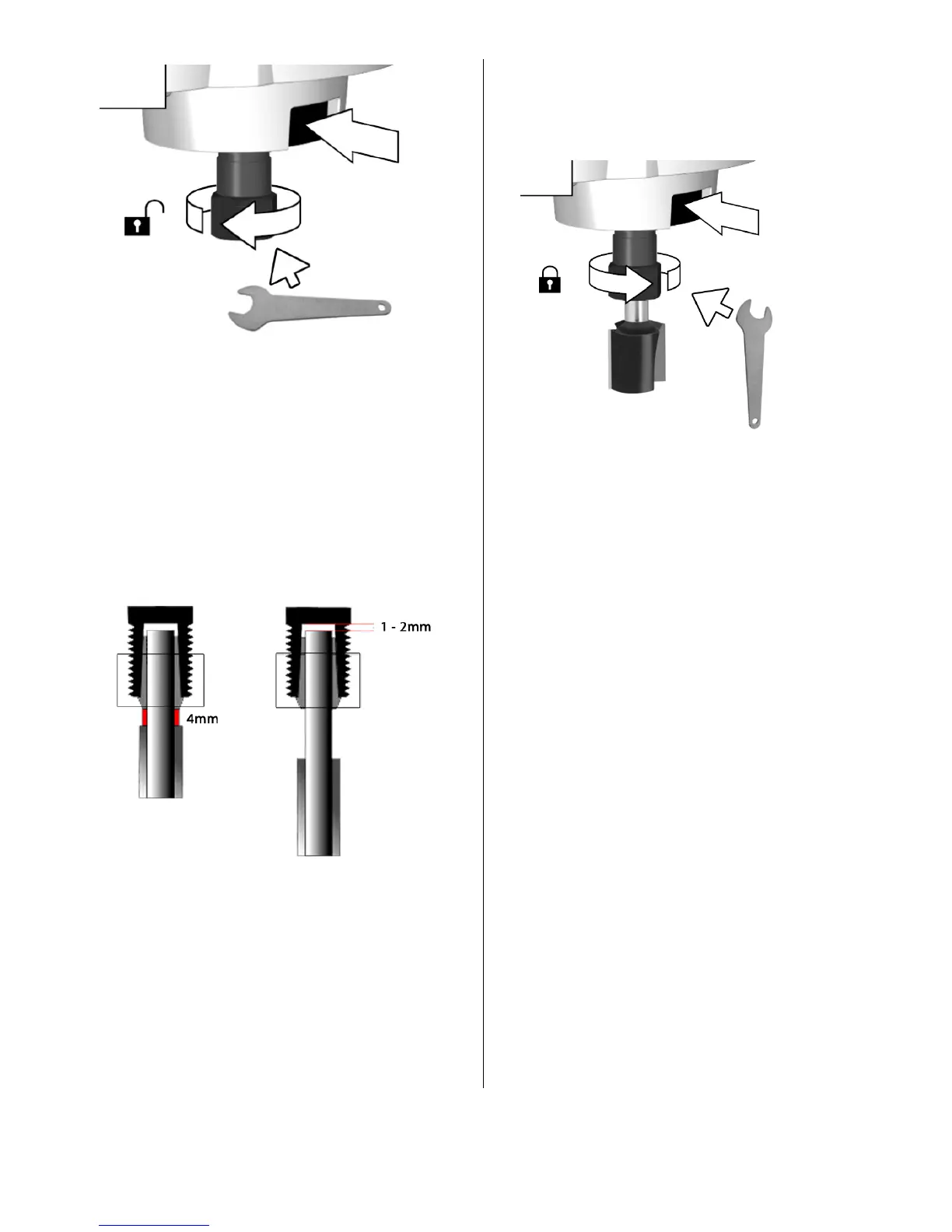

‐Insertthecutterintothecolletasfarasit
cangothenpullthecutterbackout1‐2mm.
(thisistostopanyhammeractionthatcan
damagetherouter.)Alsobesurethatthere
isatleast4mmfromthenuttothecutting
edge.

‐Pressthespindlelock(4)androtatethe
spindleuntiltherouterspindleislocked(you
mayneedtoturnthespindleslightlyto
engageit).
‐Tightenthecolletnutwiththetool
provided.Donotuseexcessiveforce.




RemovingCutters–
‐
Engagethespindlelock(4)andundothe
colletnutwiththetoolprovided.
‐Thecuttershouldnowslideout.
‐Eachtimeyoufinishusingacutter,remove
itandstoreitinasafeplace.
AdjustingtheDepthofCut
‐Placethemachinewithcutterfittedonto
theworkpiece.
‐Undothedepthstoplock(10)forsecuring
thedepthstop(9).
‐Liftuptheplungelockinglever(12)to
unlocktheplungefeature.
