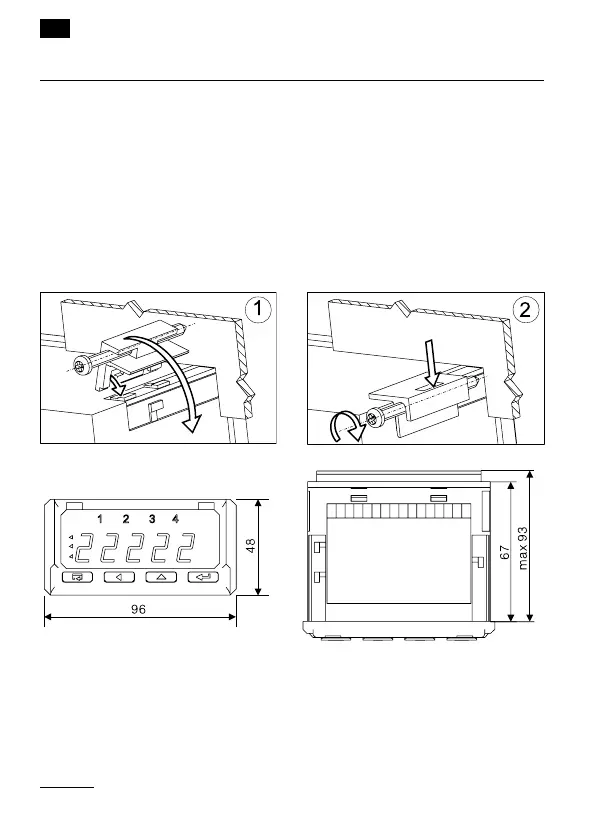

Fig. 2. Overall Dimensions
Fig. 1. Meter Fixing
2. INSTALLATION
The meter has separable strips with screw terminals, which enable the
connection of external wires of 1.5 mm
2
cross-section for input signals
and 2.5 mm
2
for other signals.
One must prepare a hole of 92
+0,6
´ 45
+0,6
mm in the panel, which the
thickness should not exceed 6 mm.
The meter is adapted to be mounted in a panel. The meter must be
introduced from the panel front with disconnected supply voltage. Be-
fore the insertion into the panel, one must check the correct placement
of the seal. After the insertion into the hole, fix the meter by means of
clamps (fig.1).
2.1. Lead-out of Signals
See page 24.
2.2. Examples of Connections
See page 24.
