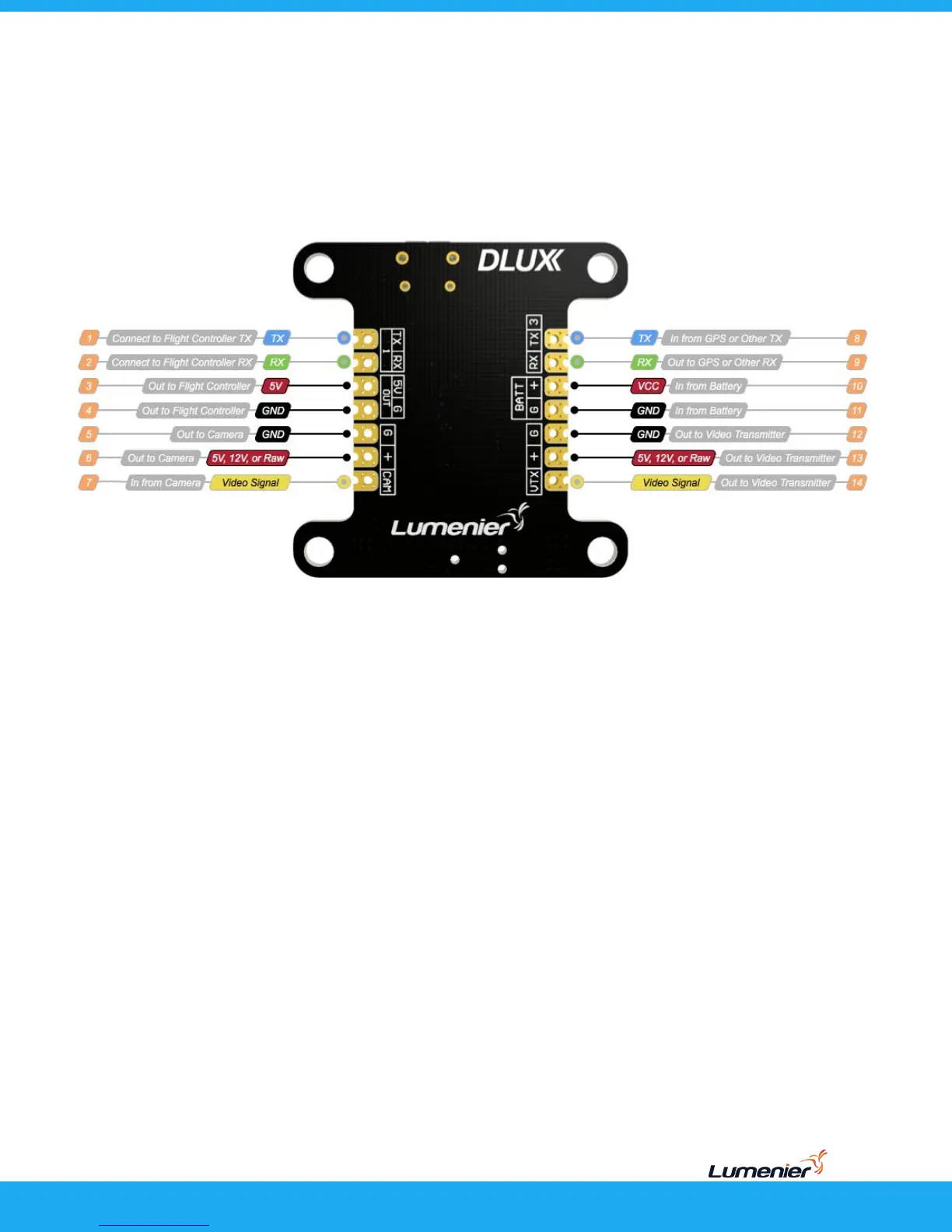

Full Pinout (Pins 1-7)
1. U1 TX (USART) - The DLUX communicates information and sends request to the RX on the
flight controller.
2. U1 RX (USART) - The telemetry information comes in from the TX on the flight controller.
3. 5 Volts out Power - This can be used as an option to power a flight controller.
4. Ground - This can be used as an option to ground a flight controller.
5. Ground - Use this to provide a ground connection to the camera.
6. Power Out for Camera - This is an adjustable power for the camera. Can be set to 5V, 12V,
or Raw power from the battery. See the Power Logic & Configuration section for details.
7. Video Signal In - The Video signal from the camera connects to here. This is where OSD
information is embedded into the video.
