Lumenier DLUX OSD - Pins 8-14 Description

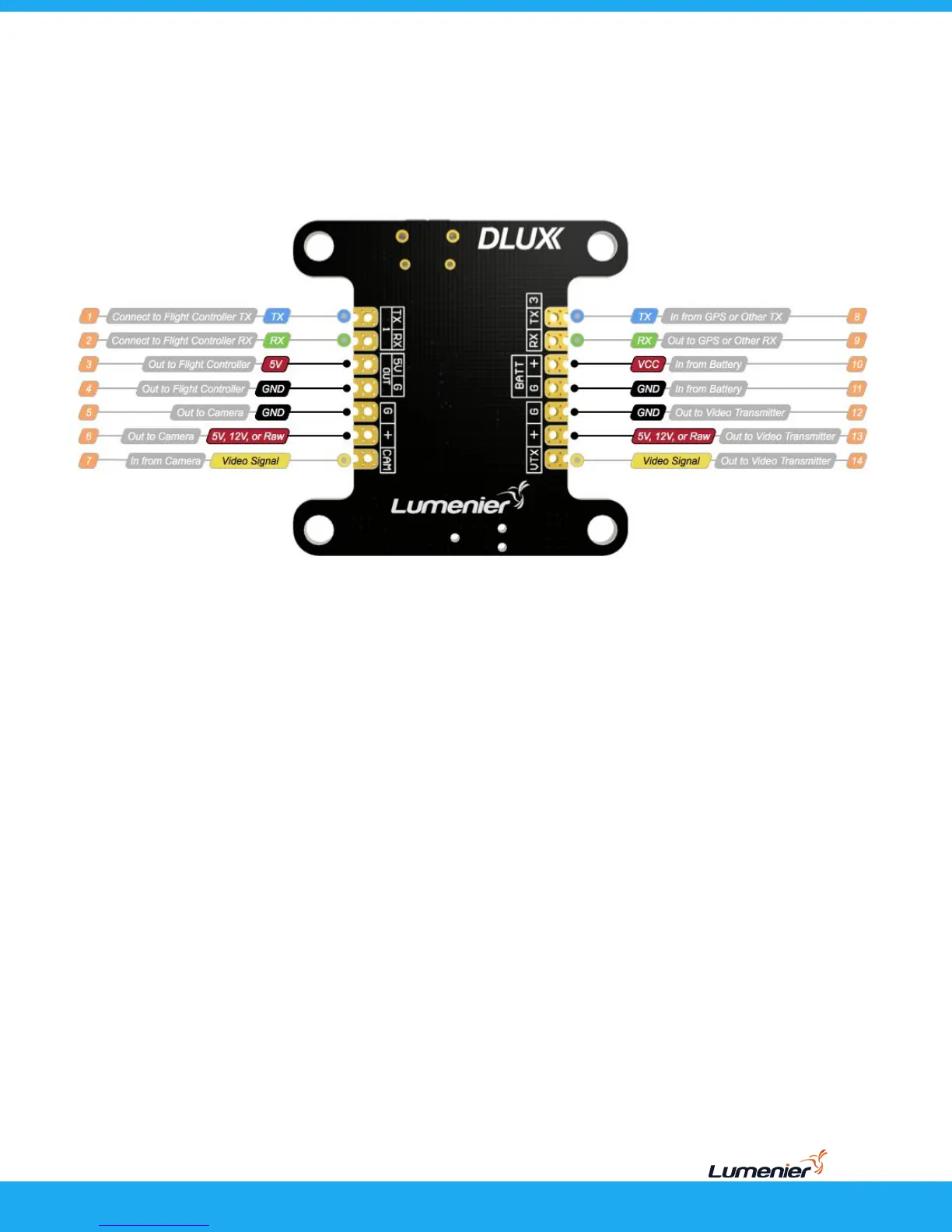

Full Pinout (Pins 8-14)
8. U3 TX (USART) - The DLUX can use this as an alternative way communicate information and
sends request to the RX on the flight controller or an alternate RX on another source like a
GPS.
9. U3 RX (USART) - An alternative connection to receive telemetry information from a TX on
flight controller or alternate RX on another source like a GPS.
10. Battery Power In - The DLUX will need to receive power from the battery. This can be
connected to a battery directly or to a PDB (Power distribution Board). Voltage in range 7.4V -
18.5V (2S - 5S Lipo)
11. Battery Ground In - The DLUX will need to receive a ground connection from the battery.
This can be connected to a battery directly or to a PDB (Power distribution Board).
12. Ground - Use this to provide a ground connection to the VTX (Video Transmitter).
13. Power Out for VTX - This is an adjustable power for the VTX (Video Transmitter). Can be
set to 5V, 12V, or Raw power from the battery. See the Power Logic & Configuration section for
details.
14. Video Signal Out for VTX - The video signal with the telemetry info embed as OSD (On
Screen Display) comes from here and connects to the VTX (Video Transmitter).
