Lumex LF1030 User Manual

LF1030-INS-LAB-RevB10 8
5 ASSEMBLY INSTRUCTIONS
The LF1030 patient lift is packed in one carton. The LF1040 motor may be in a separate carton.

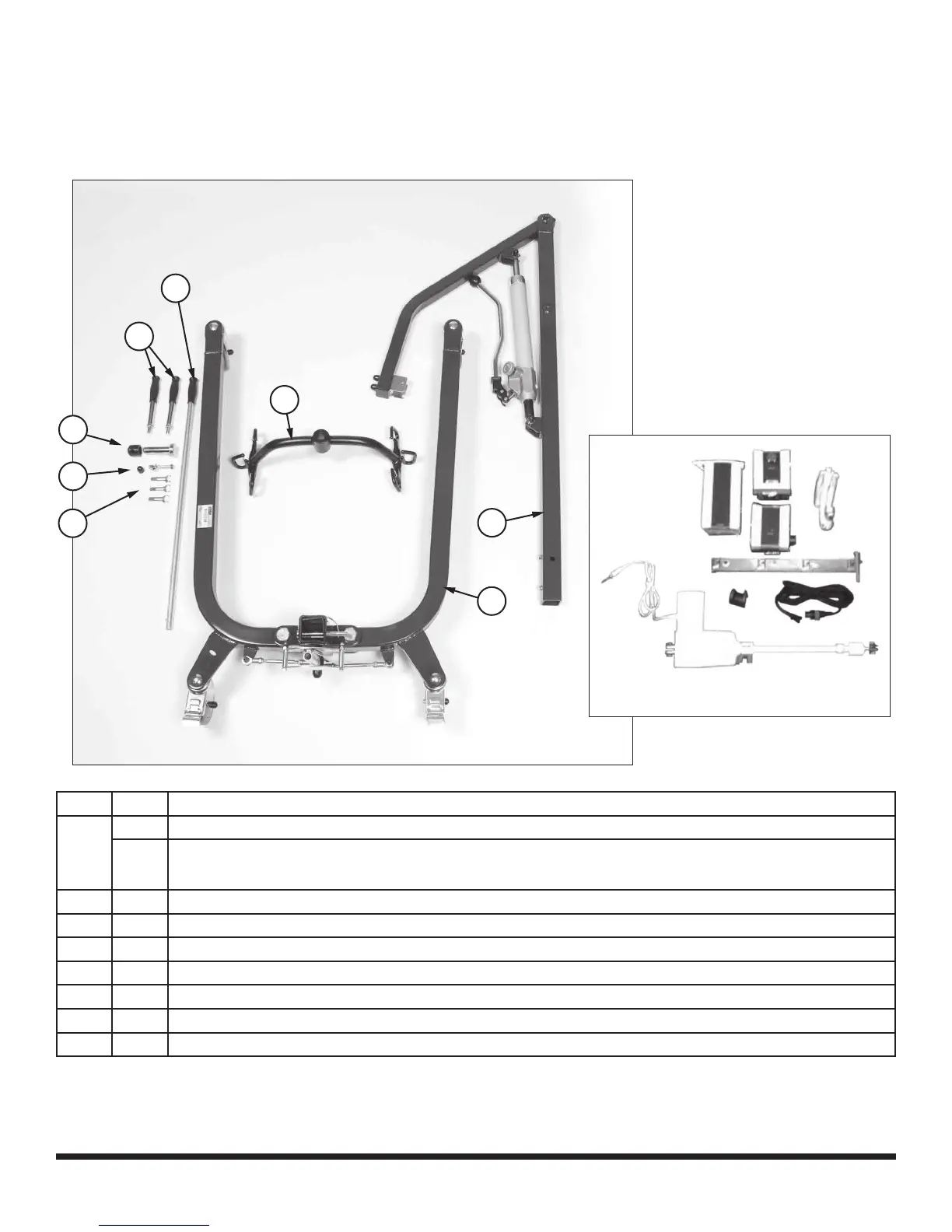

Components are shown in illustration below and called out in list below illustration.
COMPONENTS
LF1030 hydraulic patient lift components
LF1040 *
1
3
2
4
7
5
8
6
Item Qty Description
1 1 Mast/Boom/Pump assembly (LF1030)
1 Mast/Boom/Actuator assembly (LF1040)
* Note: Actuator, Charger, Pendant and mounting items are packaged separately on LF1040.
2 1 Base
3 1 Base adjustment handle
4 2 Push handle
5 1 Spreader bar to boom attachment bolt
6 1 Spreader bar to boom attachment rod
7 1 Spreader bar
8 1 Assembly wrench set
