ASSEMBLY

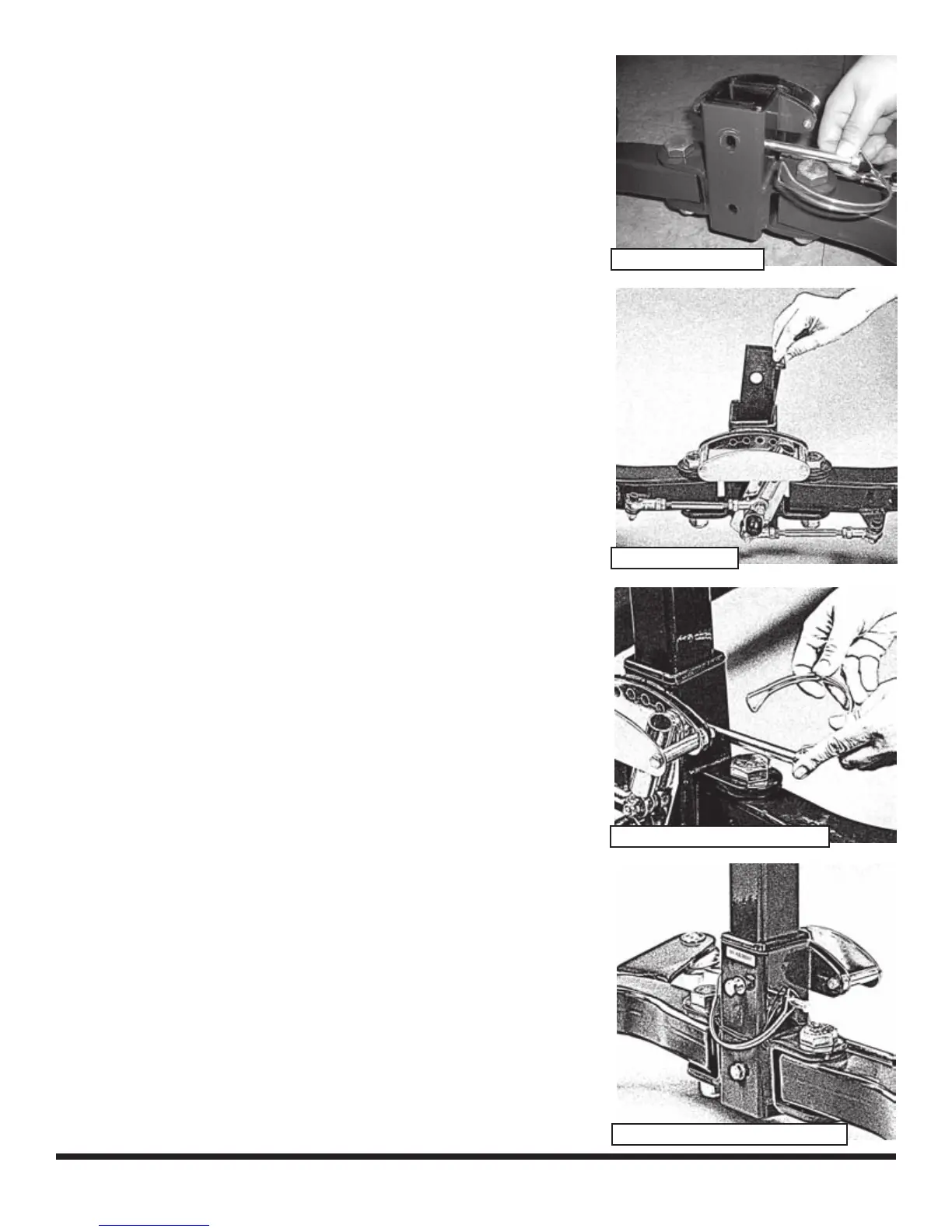

1. Remove the locking pin from the mast sleeve
located on the rear of the base.
2. Install the L-inserts in the base.
3. With the boom pointed in the same direction as
the base legs, insert the mast into the sleeve.
4. Insert the locking pin through the holes of the
sleeve and mast, and attach the locking cable to
the end of the pin.
5. Screw the two mast attachment bolts into the
holes in the sleeve of the base.
remove locking pin
install L-inserts
install mast and locking pin
install mast attachment bolts
