Luminous 3KVA - Operation Scenario 3: Utility and Solar Present; Operation Scenario 4: No Utility or Solar

5

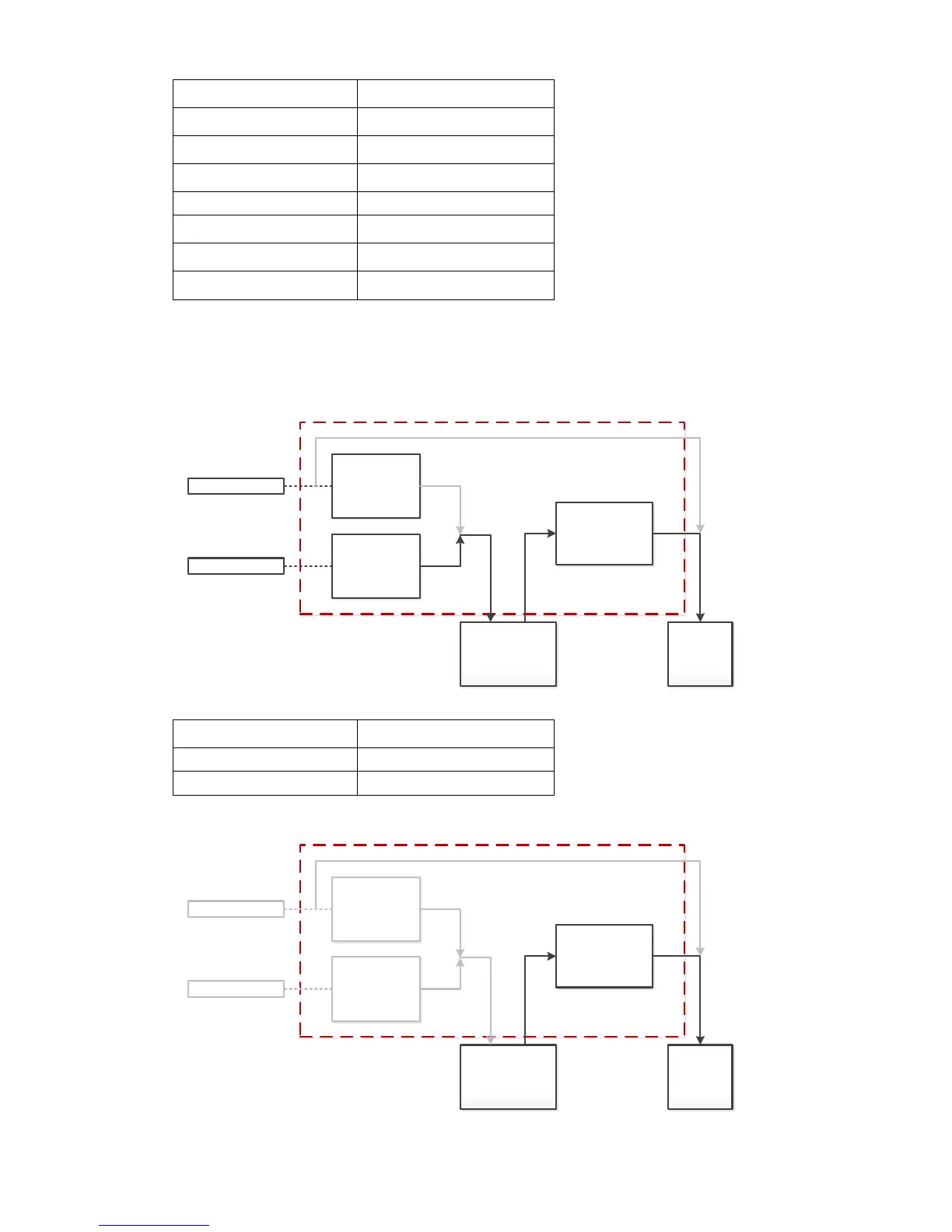

Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
utility
utility
solar
utility
solar and utility
utility
solar and utility
solar
solar
sbu
solar and utility
sbu
3) When utility and solar are presented, battery charged from solar source, I
CHG
=I
SC
, load powered from solar
and battery, the Max. I
SC
goes up to 50Amp if solar panel with enough energy. If solar priority, output source
turn to utility side in case solar panel without energy or battery voltage down to pre-alarm level. If sbu priority,
output source turn to utility side in case of battery voltage down to pre setting level
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
solar
sbu
4) When utility and solar are not present, I
UC
=I
SC
=0, connected load will be powered from battery.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
