Luminous 3KVA - Operation Scenario 5: Utility and Solar Present (Utility Charging); Operation Scenario 6: Solar Charging, Utility Output

6
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
solar
utility
utility
solar
utility
solar and utility
solar
solar and utility
utility
solar
sbu
solar and utility
sbu

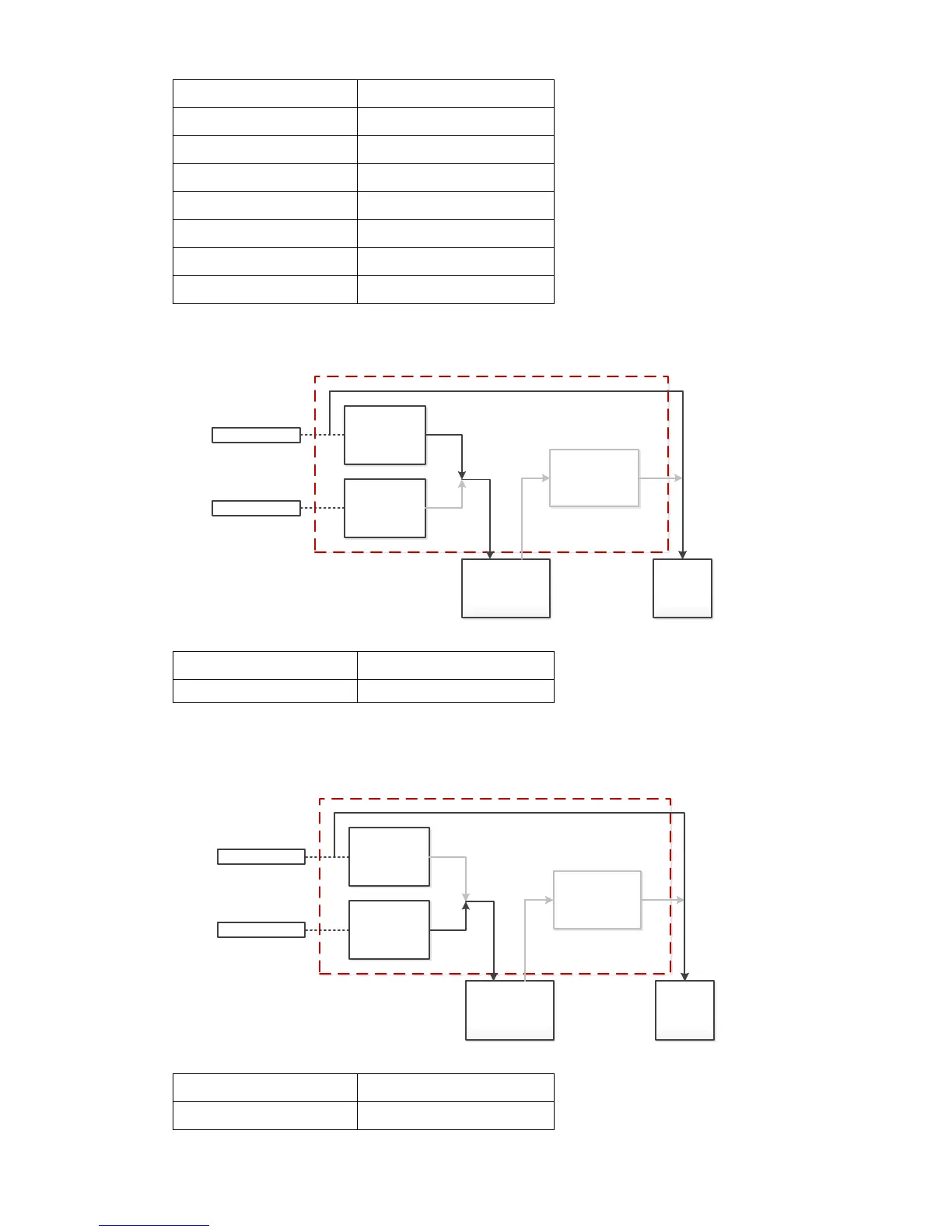

5) When utility and solar are presented, battery charged from utility, I
CHG
=I
UC
, load powered from utility, the
Max. I
UC
limited at 20Amp for 1KVA, 30Amp 2KVA and 3KVA.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
utility
utility
6) When utility and solar are presented, battery charged from solar, I
CHG
=I
SC
, load powered from utility, Max. I
SC
goes up to 50Amp if solar panel with enough energy. Charger source will be turned to utility side in case solar
panel without enough energy.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar
utility
