3. Extended Operating Functions
Extended operating functions offer additional control methods, which require either a set-up
procedure before usage or a control gear with specific DALI device type (DT8).
1) Automatic Processes (sequences, schedules, schedule lists)
2) Color Control for RGB-devices (DT8-Type: RGBWAF)

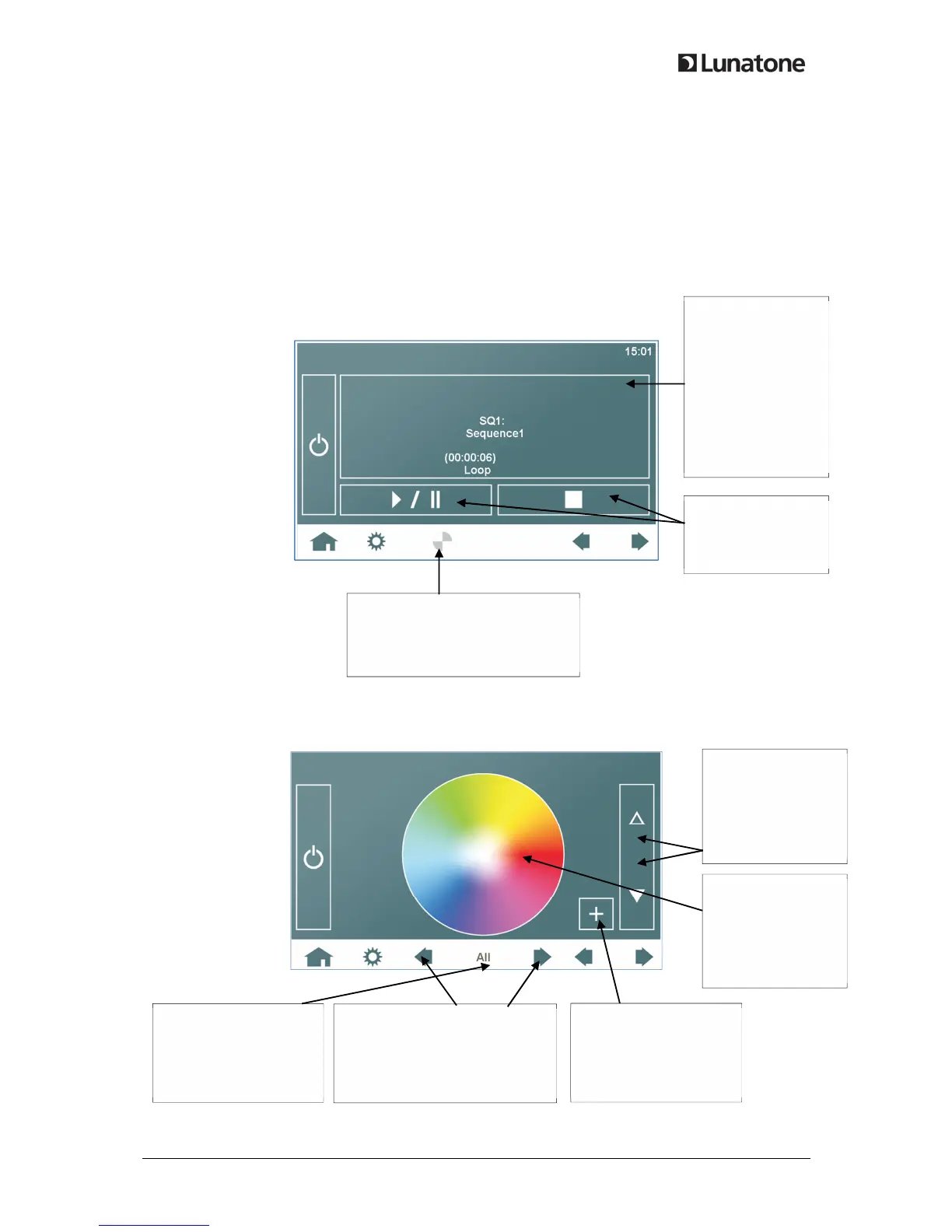

On this site a color can be selected and is immediately sent to the selected operating range.
Selection of
sequence,
schedule or
schedule list
Hold the button to open
the pop-up window to
load other processes
Dim UP/DOWN
Sent Broadcast or to
individual groups.
(Selectable on the layout
configuration page)
operating range
Short press: ON/OFF operating
range
Selection of operating range
Each group with DT8 (RGB) control gears
or Broadcast can be selected.
Color selection
color information is sent
to operating range
immediately after tipping
on the color
Start/Stop/Pause
control of the selected
process
indicator for running process
This symbol is shown on each site, when
process is active
RGBWAF - Details
Enter PopUp for detailed
settings
