Step 3: Back Cushion Assembly

Assemble the back cushion as shown in Fig. 5 below. Be sure to connect the heat connector with matched

wire color.

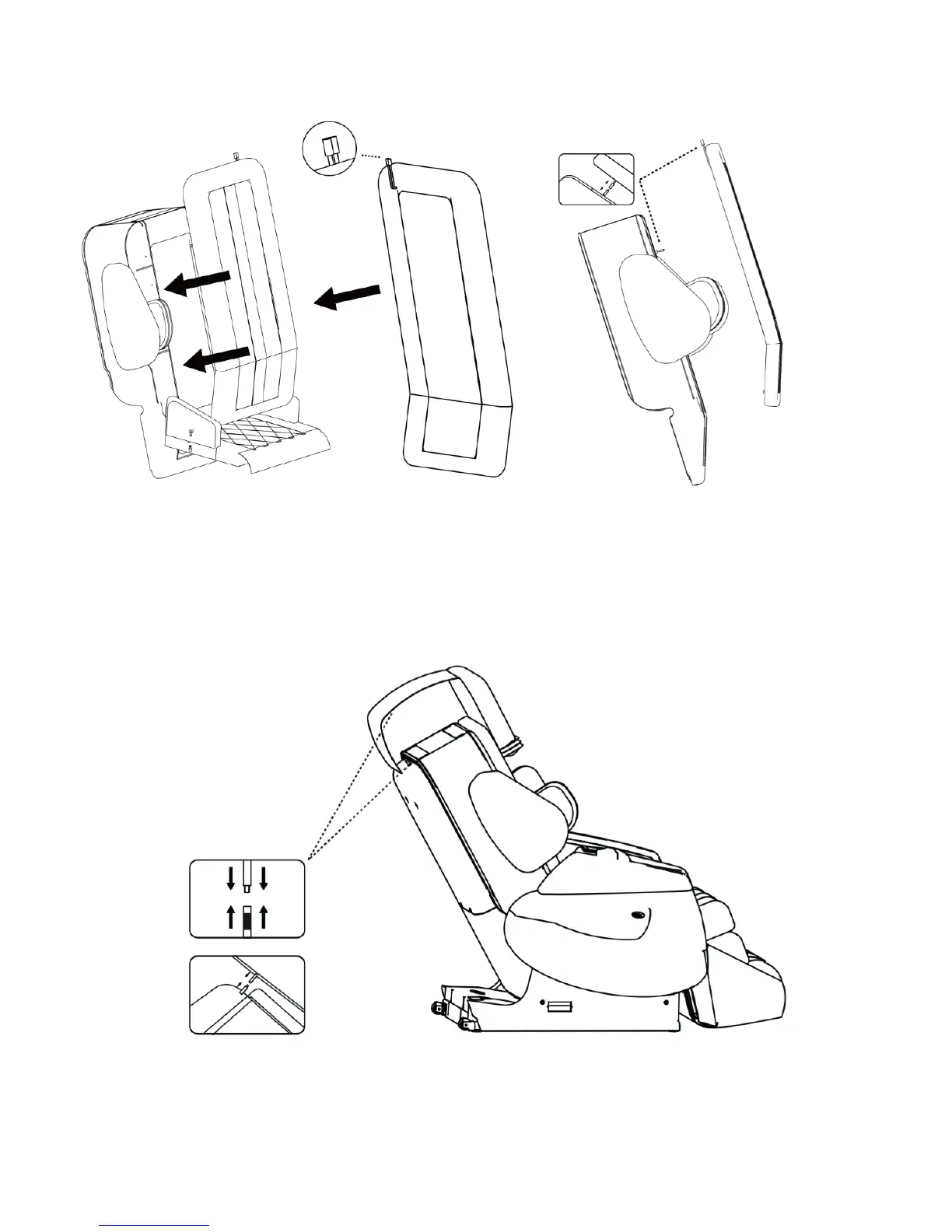

Fig.5: Back Cushion Installation

Step 4: Pillow and Foot Roller Gentle Pad Assembly

Connect the air pipe on the pillow to the pipe on the back of the chair as shown in Fig.6 below.

Be sure to install the clamps to secure the air pipes (Use the plier provided).

Fig.6: Pillow Assembly
