Application Note #480
20 www.lutron.com
Two-Location Applications Using an Existing Switch (continued)
Selecting Two-Location Application Shortcut
DIRECTIONS
Note: This feature is only accessible through the shortcut and cannot be accessed through the Advanced
Programming Mode Menu. Default setting is IL4, Companion Dimmer

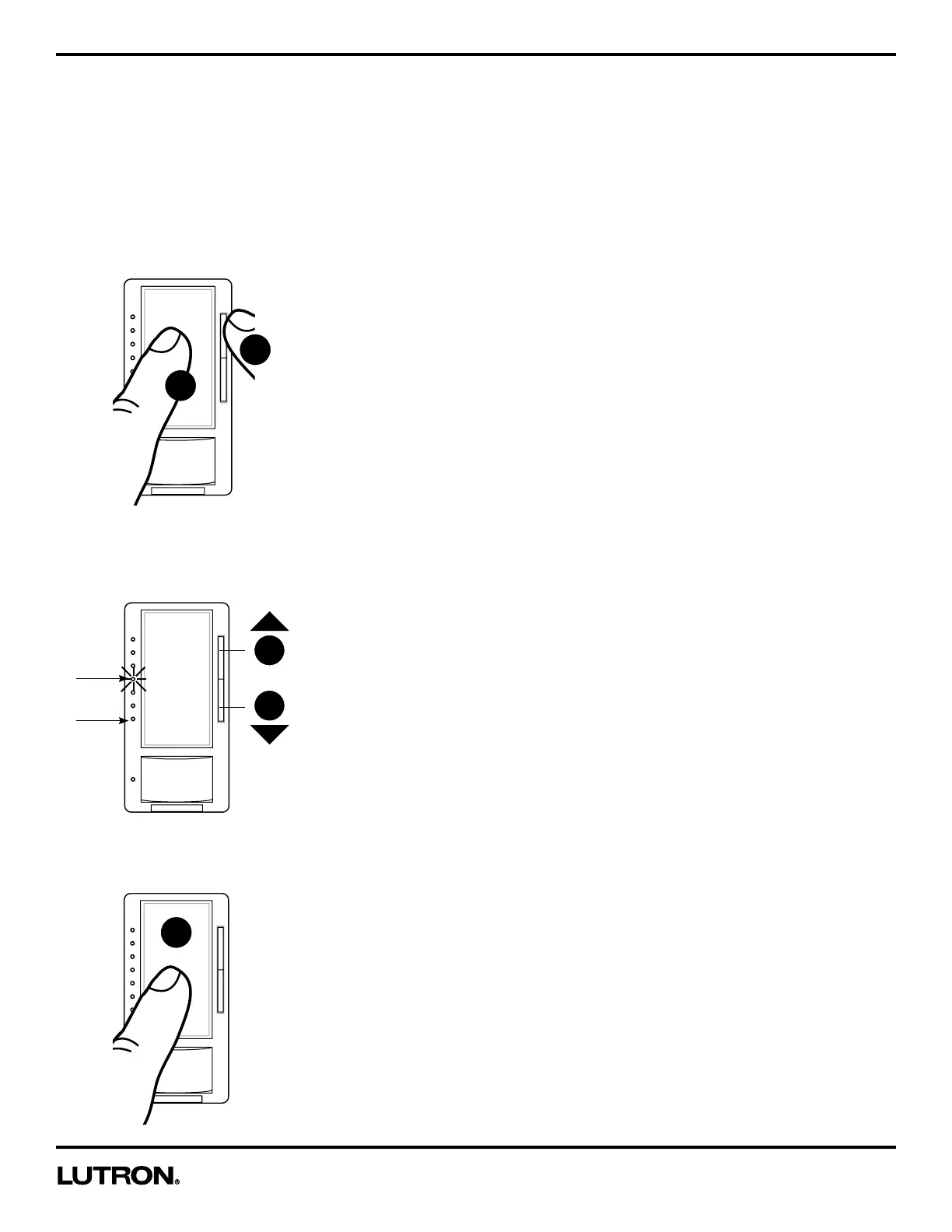

1. Press and Hold the Tap button and the Raise button until an Indicator Light (IL) blinks.
2. Use the Raise / Lower buttons to select an option:
– IL1 if a mechanical switch is being used
– IL4 if a companion dimmer is being used
3. Single Tap to Save setting.
Note:
• Rewiring of existing switch is required; consult your
instruction sheet for installation procedures.
• Default is IL4, Companion Dimmer.
• If switch was not rewired, this may result in abnormal behavior
of the dimmer. Please consult your instruction sheet for
wiring procedure.
• If rewiring of the existing mechanical switch was performed
but the "Two-Location Applications Using an Existing Switch"
setting is not changed to use the appropriate second location
device, the dimmer may react abnormally. To resolve, change
this setting to use the appropriate device.
T
Or
R
L
IL4
IL1
T
R
&
