Lutron Electronics Maestro MS-OPS2H C Series User Manual

Maestro Sensor
369666f 21 09.05.19
®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy / Vacancy Sensor
Wiring Diagrams (continued)
1
A single standard mechanical 3-way switch or up to 9 companion switches may be connected to most occupancy sensor switches.
Standard mechanical 3-way switch cannot be combined with companion switch. Total blue terminal wire length may be up to 150ft (46m).
2
Only one occupancy sensor switch can be used per multi-location circuit.
3
Occupancy sensor switch can be installed in any location.
4
Fan load applies to 120 V~ only (not for 277 V~).

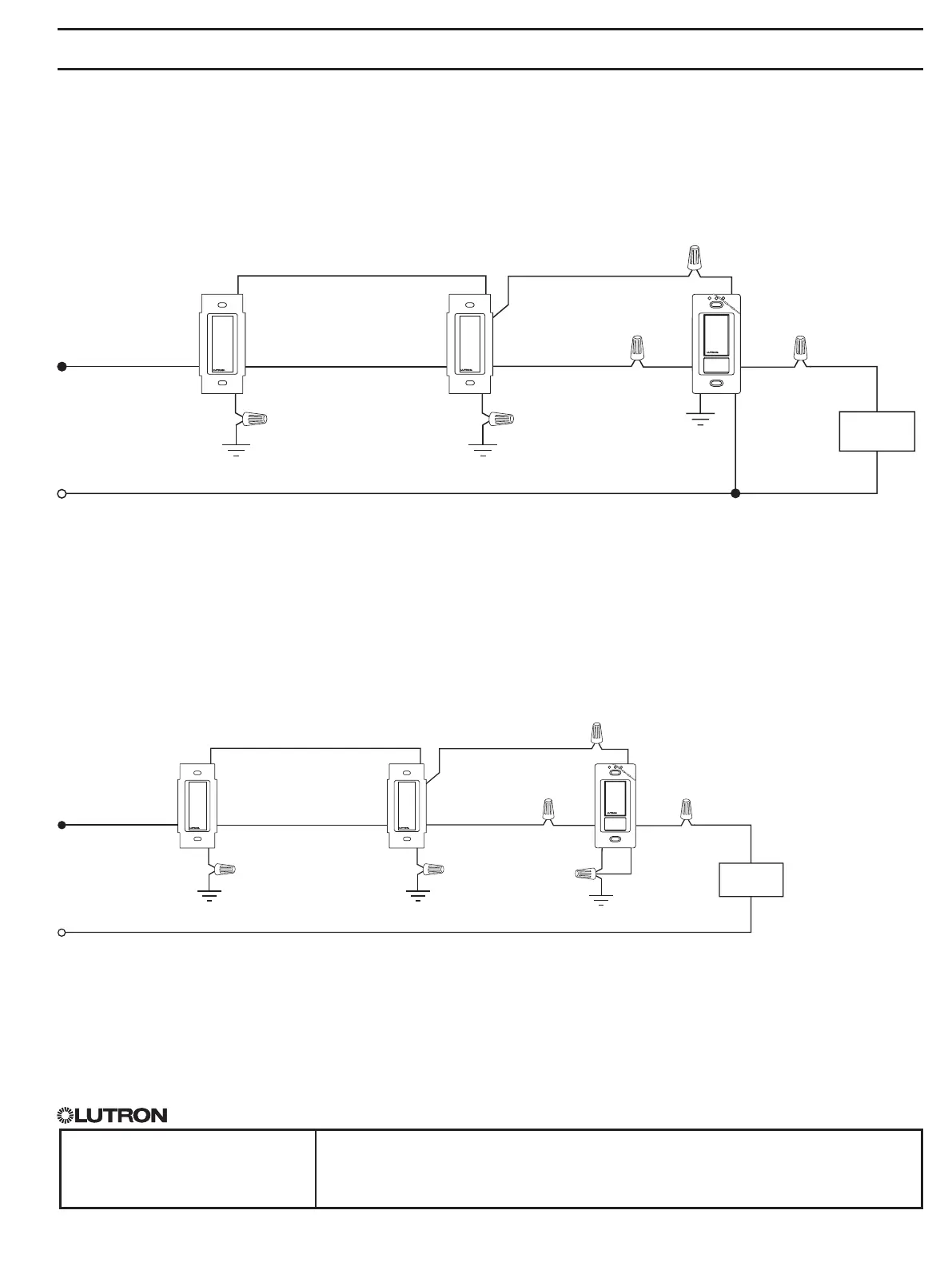

Wiring Diagram 10 - without Neutral
Multi-Location Installation (120 V~)
1, 2, 3
-OPS6M2U-DV, -VPS6M2U-DV with MA-AS or MSC-AS
MA-AS or
MSC-AS
MA-AS or
MSC-AS
Blue
Green
Ground
Occupancy
sensor switch
3
Black
Ground
120 V~
50 / 60 Hz
Brass Brass
Black
Blue
Blue
Green
Green
Ground
Hot /
Live
Neutral
Load
Bare
Black Black
Continued on next page...
Wiring Diagram 10 - with Neutral
Multi-Location Installation (120 V~)
1, 2, 3
-OPS6M2U-DV, -VPS6M2U-DV with MA-AS or MSC-AS
MA-AS or
MSC-AS
MA-AS or
MSC-AS
Blue
White-sleeved wire
Ground
Occupancy
sensor switch
3
Black
Ground
120 V~
50 / 60 Hz
Brass Brass
Black
Blue
Blue
Green
Green
Ground
Hot / Live
Neutral
Load
Bare
Black Black
Note: Remove white sleeve and connect green wire to ground only in retrofit and replacement applications.
Note: When a neutral connection is available, connect the white-sleeved wire to neutral.
21
