Lutron Electronics MAESTRO MS-VPS2 User Manual

Maestro Sensor
369666f 19 09.05.19
®
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Switch with Occupancy / Vacancy Sensor
1
Only one occupancy sensor switch can be used per multi-location circuit.
2
A single standard mechanical 3-way switch or up to 9 companion switches may be connected to most occupancy sensor switches.
Standard mechanical 3-way switch cannot be combined with companion switch. Total blue terminal wire length may be up to 150ft (46m).
3
Fan load applies to 120 V~ only (not for 277 V~).
Wiring Diagrams (continued)
Continued on next page...

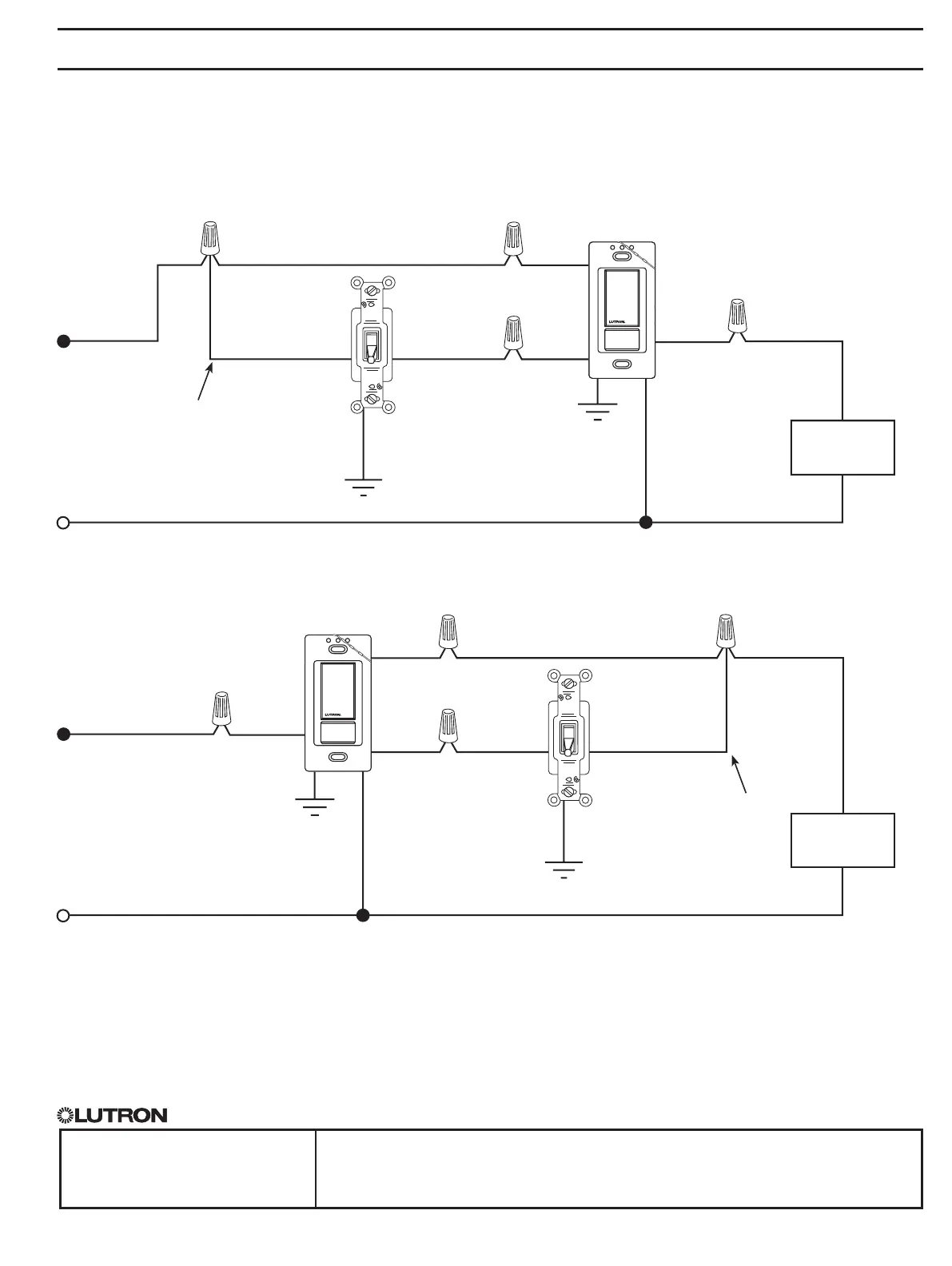

3-way Installation with Standard Mechanical Switch (277 V~)
1, 2, 3
-OPS6M2U-DV, -VPS6M2U-DV
Wiring Diagram 9 - with Neutral
OR
Black
Blue
White-sleeved wire
Ground
Occupancy
sensor switch
Ground
277 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color screw
(Common)
Green
screw
Black
Blue
Ground
Occupancy
sensor switch
White-sleeved
wire
Ground
277 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color screw
(Common)
Green
screw
Note: When a neutral connection is available, connect the white-sleeved wire to neutral.
19
