Step 4: Set the SMC55-HWQS Basic Parameters for System
Compatibility (continued)
Saving and Exiting Basic Configuration
Once the values for all the applicable basic configuration parameters are entered, the following will be displayed on the
thermostat.
The display in Figure 5 indicates that all the parameters specific to the HVAC system type are selected. At this stage, it is
recommended to verify the values selected for each parameter. To verify the values selected for each parameter press the
button. Keep pressing the button until the values of all the parameters is verified. Once all the values are verified, press the
button till you enter the ‘End’ screen.
When in the ‘End’ screen, press and hold the button until the button backlights flash and the display shows the current
room temperature (3 seconds) or the HVAC controller selection mode for the second zone (depending on the equipment
configuration). This is the normal operating mode and the thermostat and the SMC55-HWQS will start controlling the HVAC
equipment. Refer to Figure 6 for an example of the display in normal operating mode.
Press and hold to save all
parameters to SMC55-HWQS
and exit to normal operation
Return to previous parameter

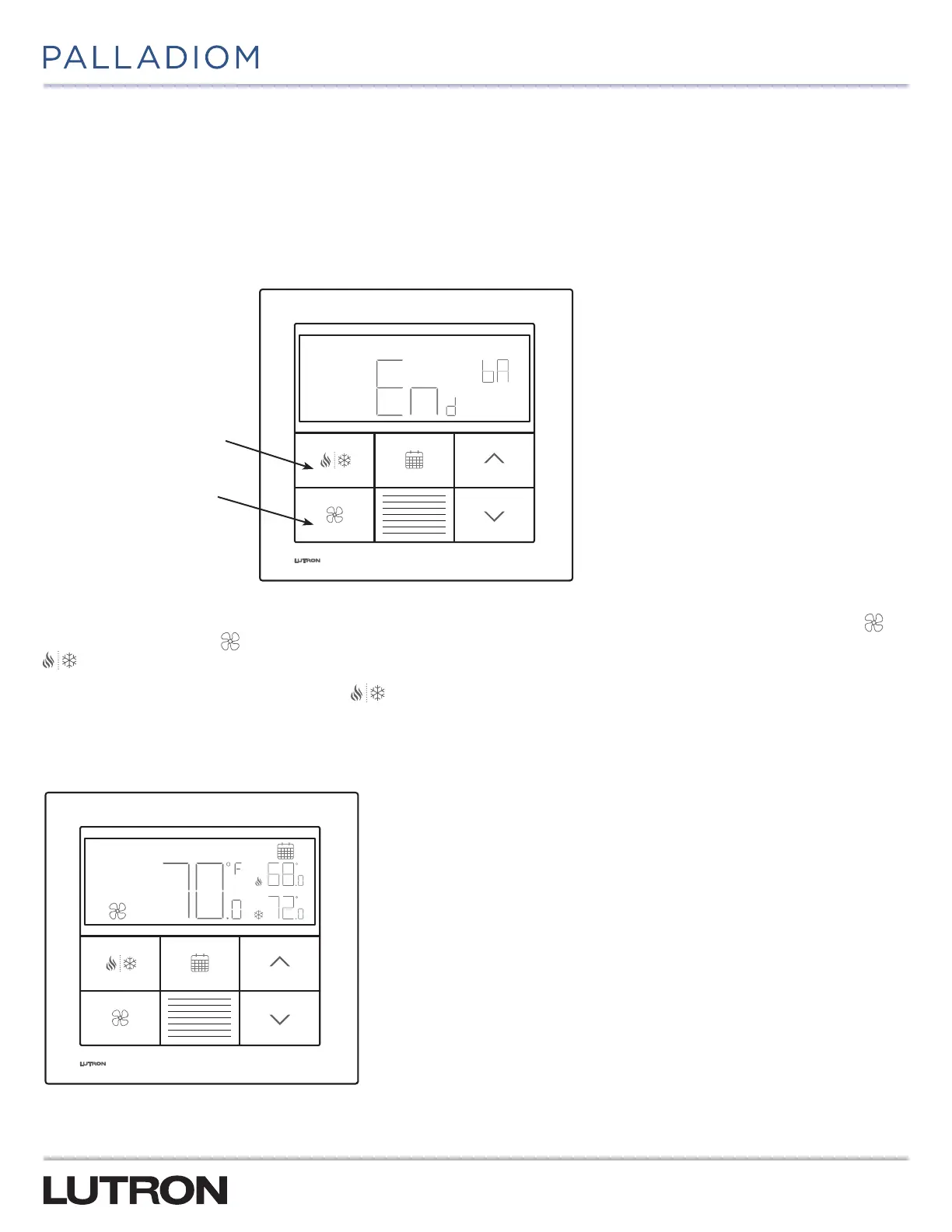

Figure 5: End Screen for Basic Configuration Parmeters
Auto
AUTO
Set
On
Set
Figure 6: Normal Operating Mode of the Thermostat
