Lux Products SMART TEMP TX9100Uc User Manual

NOTE: THE BLACK TERMINAL LETTERS ARE TYPICAL, GRAY TERMINAL LETTERS ARE BRAND SPECIFIC
XF
G
Y1
6
Y
B*
Y2
RC
V
R
W1 A Y2 O B W2 CG Y1 RC RH

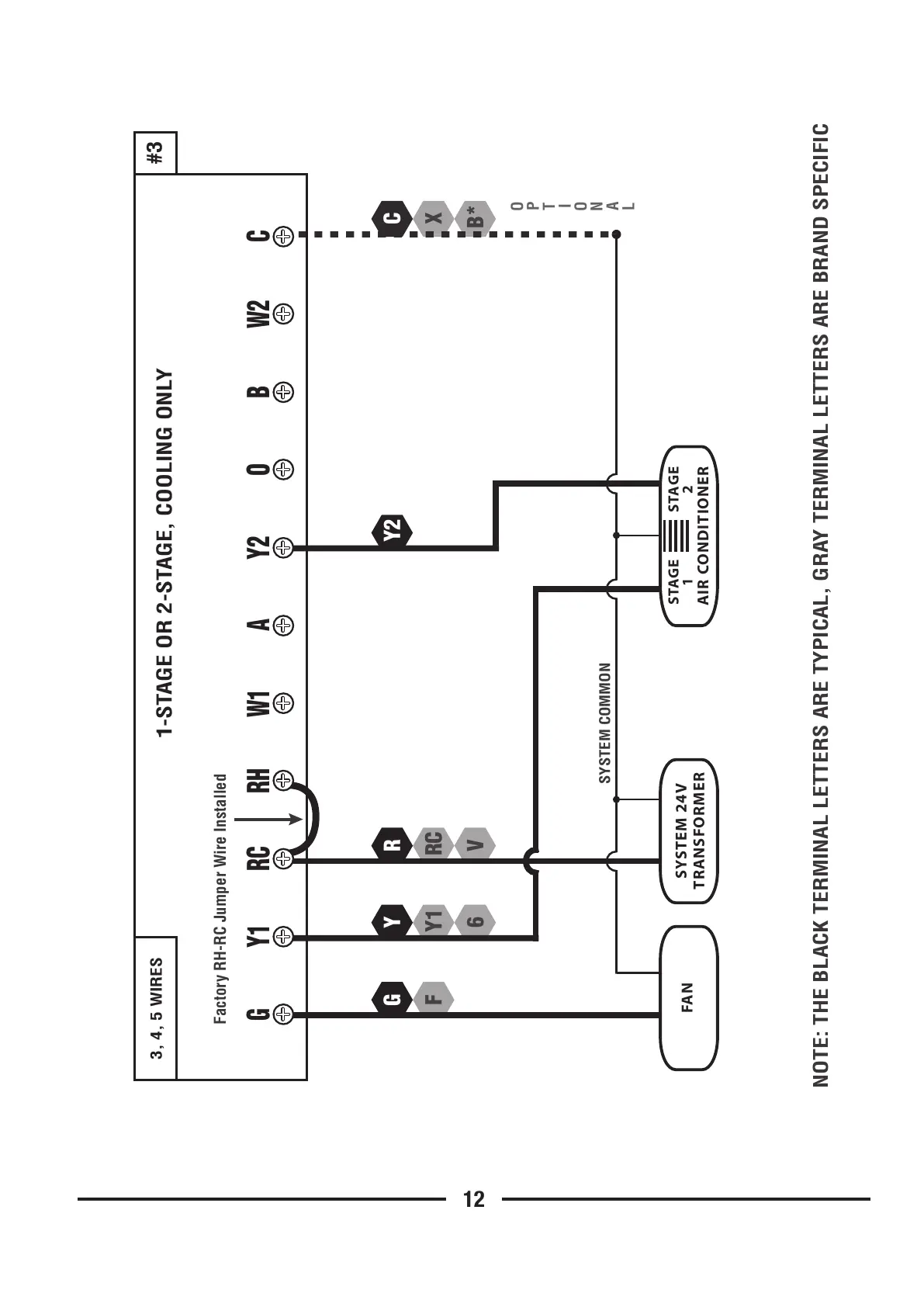

1-STAGE OR 2-STAGE, COOLING ONLY
Factory RH-RC Jumper Wire Installed
#3
C
AIR CONDITIONER
STAGE
1
STAGE
2
FAN
SYSTEM 24V
TRANSFORMER
SYSTEM COMMON
3, 4, 5 WIRES
O
P
T
I
O N
A
L
12

Lux Products SMART TEMP TX9100Uc Specifications

General

Brand	Lux Products
Model	SMART TEMP TX9100Uc
Category	Thermostat
Language	English
