Lux Products SMART TEMP TX9100Uc - System Compatibility

S
ETBACK
HOLD
S
ET
R U N
D
AY/TIME
TEMP P RO G
SPEC P RO G
F
ILT / ENRGY
T
EMP E R AT U RE
H
EAT
OFF
COOL
F
AN
A
UTO
O
N
C
OPY /
EME R
NEX T

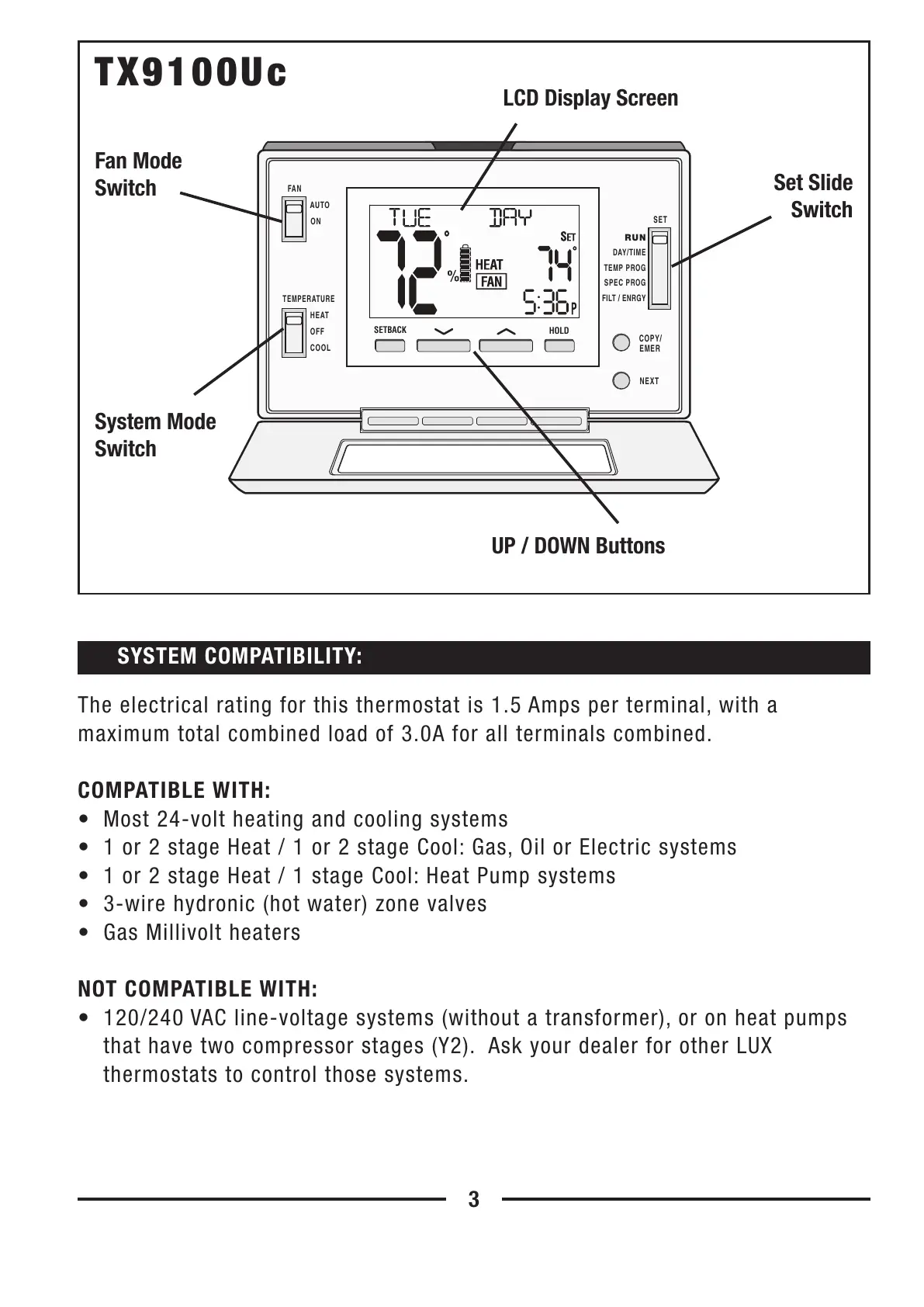

LCD Display Screen
T X 9 1 0 0 U c
UP / DOWN Buttons
Set Slide
Switch
Fan Mode
Switch
System Mode
Switch
The electrical rating for this thermostat is 1.5 Amps per terminal, with a
maximum total combined load of 3.0A for all terminals combined.
COMPATIBLE WITH:
• Most 24-volt heating and cooling systems
• 1 or 2 stage Heat / 1 or 2 stage Cool: Gas, Oil or Electric systems
• 1 or 2 stage Heat / 1 stage Cool: Heat Pump systems
• 3-wire hydronic (hot water) zone valves
• Gas Millivolt heaters
NOT COMPATIBLE WITH:
• 120/240 VAC line-voltage systems (without a transformer), or on heat pumps
that have two compressor stages (Y2). Ask your dealer for other LUX
thermostats to control those systems.
SYSTEM COMPATIBILITY:
3
