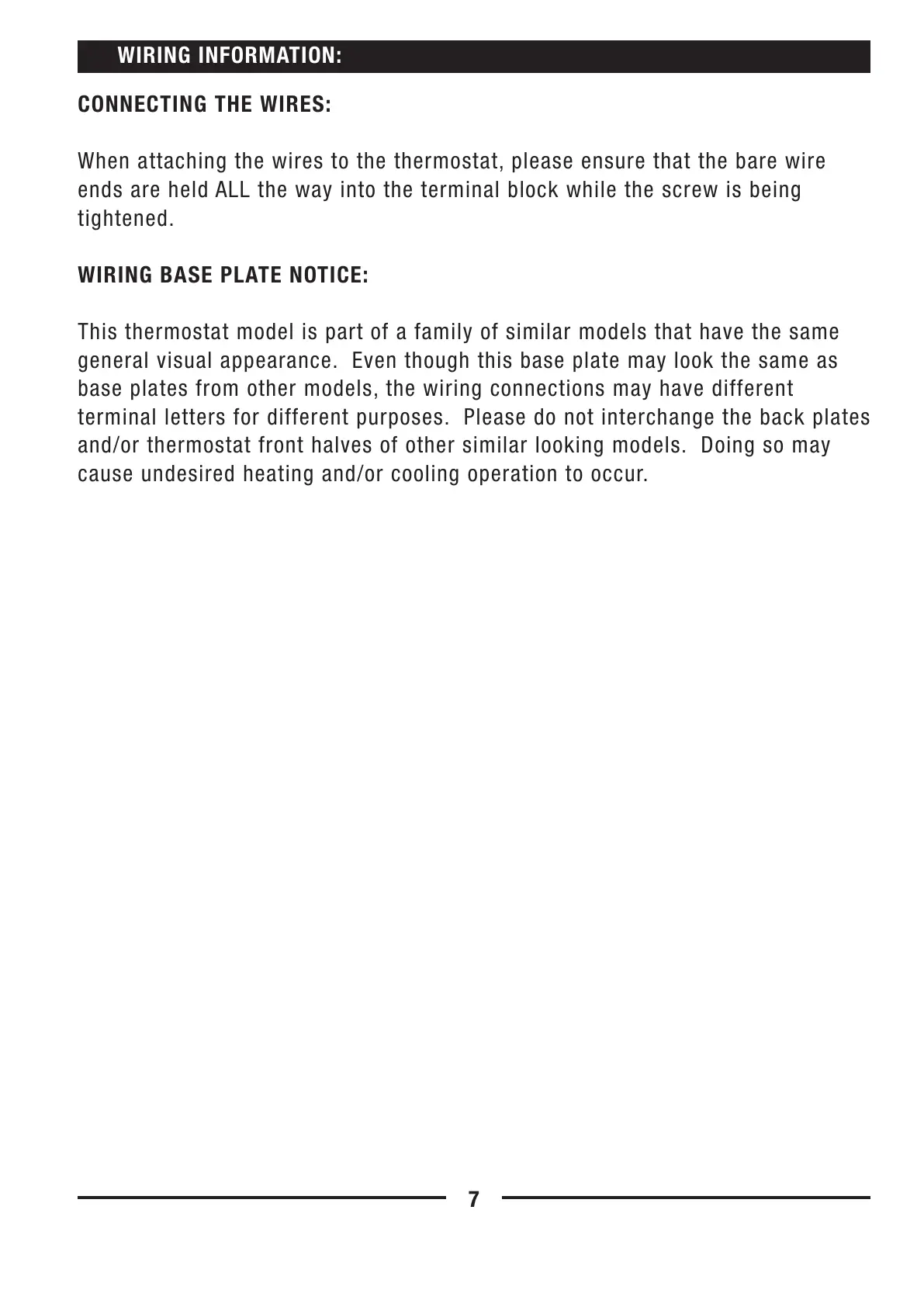

CONNECTING THE WIRES:
When attaching the wires to the thermostat, please ensure that the bare wire
ends are held ALL the way into the terminal block while the screw is being
tightened.
WIRING BASE PLATE NOTICE:
This thermostat model is part of a family of similar models that have the same
general visual appearance. Even though this base plate may look the same as
base plates from other models, the wiring connections may have different
terminal letters for different purposes. Please do not interchange the back plates
and/or thermostat front halves of other similar looking models. Doing so may
cause undesired heating and/or cooling operation to occur.
7
WIRING INFORMATION:
