LUX TX9600TS - Page 15

XF
G
Y1
6
YO
B*
RC
V
R
W2 A W1G B CO Y RC RH

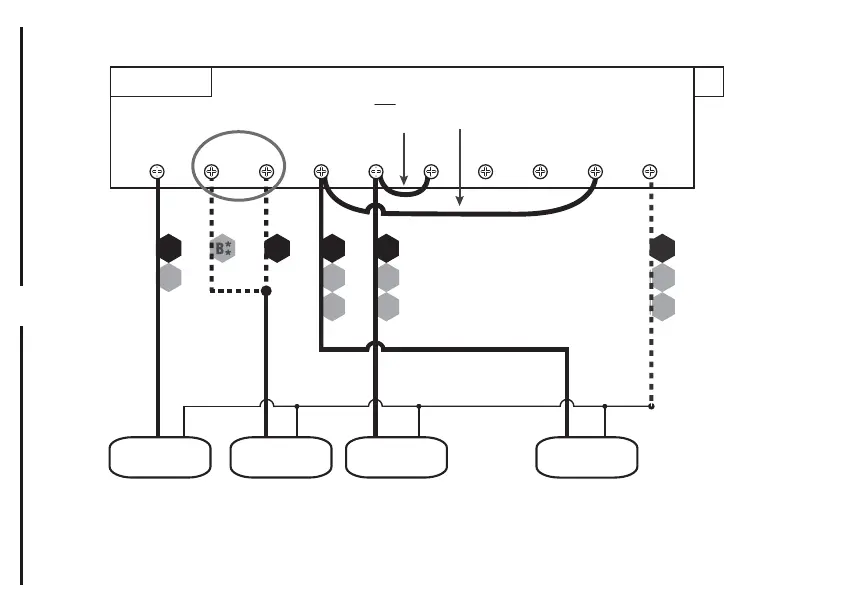

SINGLE-STAGE HEAT PUMP SYSTEM
WITH NO AUX OR EMERGENCY HEAT
#7
C
SYSTEM 24V
TRANSFORMER
SYSTEM COMMON
4, 5 WIRES
NOTE: THE BLACK TERMINAL LETTERS ARE TYPICAL, GRAY TERMINAL LETTERS ARE BRAND SPECIFIC
O
P
T
I
O
N
A
L
HEAT PUMP
REVERSING
VALVE
** Use “O” or “B”
Terminals, Never Both
CUSTOMER INSTALLED Y-W1 Jumper Wire
Factory RH-RC Jumper Wire Installed
