4.9 AHRS page
The AHRS page utilizes the LX AHRS module in order to provide the pilot with important flight
parameters. The LX AHRS module is required for the use of AHRS page.

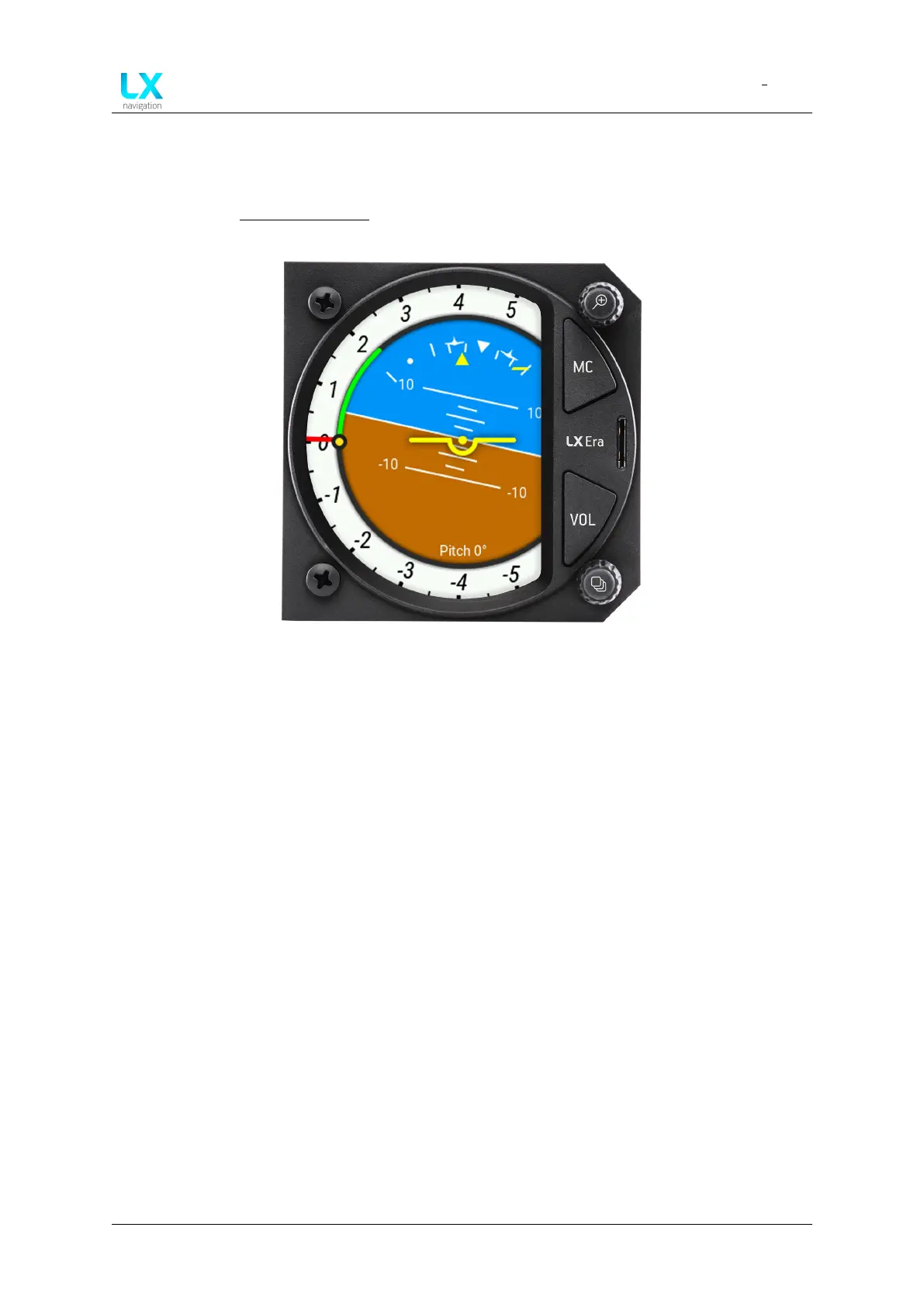

Figure 52. Attitude indicator on PFD page
The AHRS page offers the pilot the following flight parameters:
• Attitude
• Pitch set
• Bank angle
Attitude and horizon line are displayed as blue sky and brown ground. The border between the
two is separated with a white line representing the horizon.
The attitude indicator displays the pitch (indicated by the yellow symbolic aircraft on the pitch
scale), bank, and slip/skid information.
The horizon line is part of the pitch scale.
Pilot can see following pitch scale markings:
• 0°− pitch markings Known also as ”Horizon line”
• 2.5°− pitch markings Found at the interval between 0° and +-20°−
• 5°− pitch markings Found at the interval of +-50°
• 10°− pitch markings Found at the interval between +-50° and +-90°
Bank scale - the inverted white triangle indicates zero on the bank scale. Major tick marks at
30° and 60° and minor tick marks 10°, 20°, and 45° are shown to the left and right of the zero.
