CARE & USE/INSTALLATION
|
13
Inside View, Orifice all
the way into venturi
Heat Shield Removed,
Orifice/Venturi Position
Orifice all the way
into the venturi

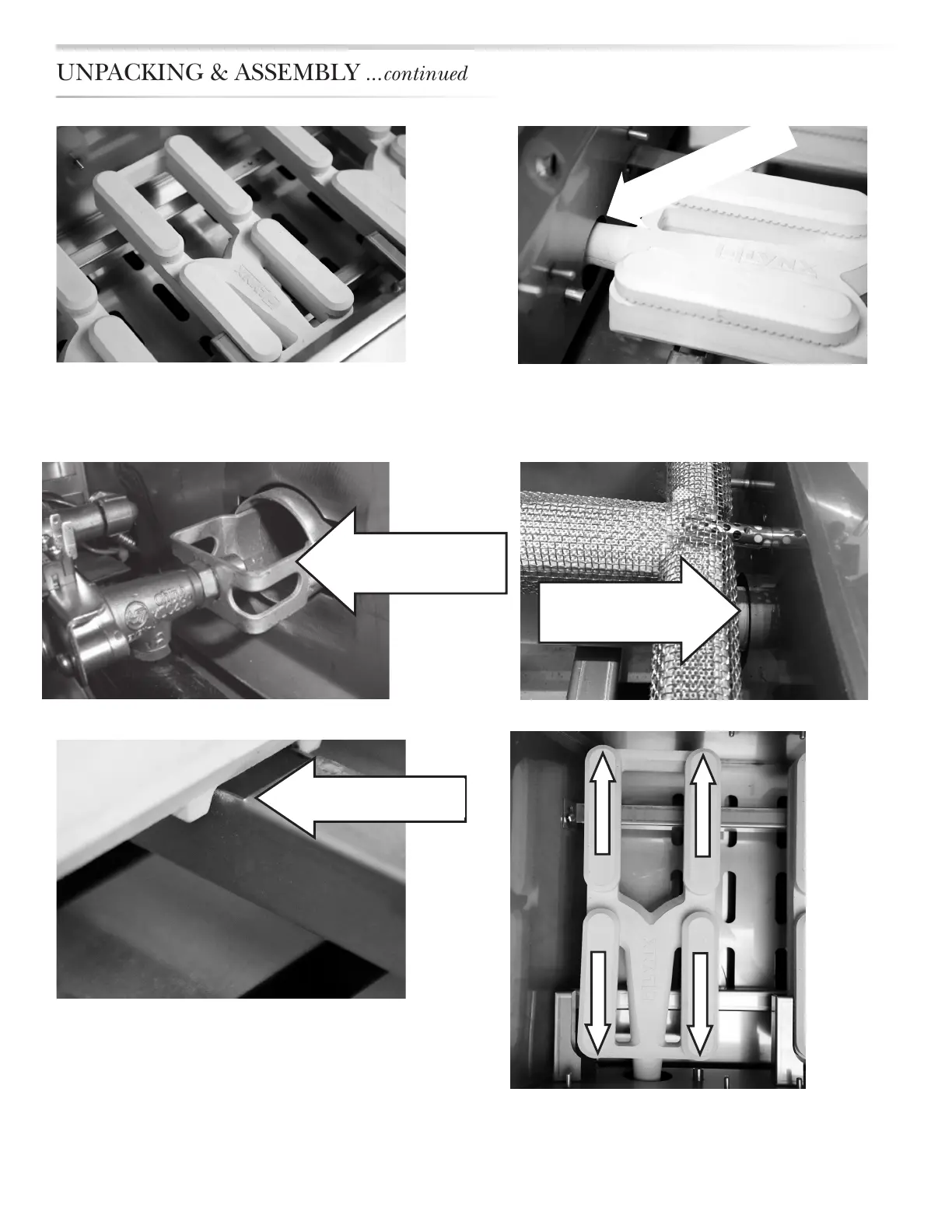

UNPACKING & ASSEMBLY ...continued
Move the rear caps towards the back and pull the
front caps forward
Burner sitting flat
