CARE & USE/INSTALLATION
Touch Screen Remote Transmitter-remove the cover on
the back of the remote control unit and install (4) AAA 1.5 V
batteries. Take special note of the (+) and (-) terminals.

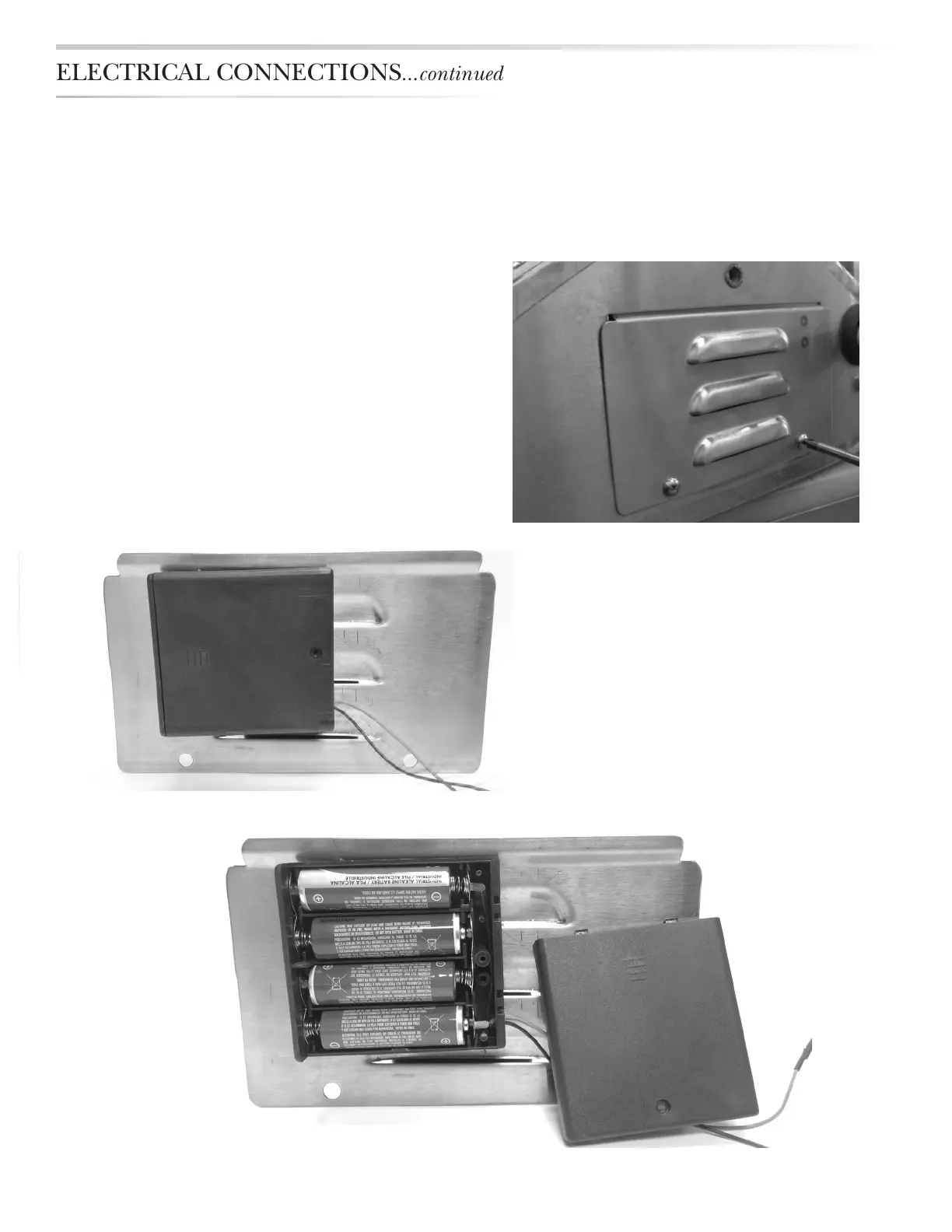

Heater- remove the (2) screws holding the louvered end
plate at the far, right end of the heater. This is the SMALLER
of the 2 access plates. The battery pack will be mounted
directly inside, on the endplate. Using a small Philips head
screwdriver remove the screw and slide off the battery box
cover. Replace or insert (4) AA 1.5 V batteries with attention
of the (+) and (-) terminals. Reinstall the battery box cover
and secure it in place with the Philips head screw. Leave
the louvered end plate off and let it hang straight down for
the next programming operation. See pictures below.
ELECTRICAL CONNECTIONS...continued
