26
|
CARE & USE/INSTALLATION
Outlet Gas Pressure
Tap (To Burner)
Inlet Gas Pressure
Tap (From Supply)
REPLACING BATTERIES IN THE REMOTE CONTROL TRANSMITTER
Remove the back cover on the remote control transmitter and lift out the 4 AAA batteries. Replace with 4 high quality
1.5V AAA batteries. Take special note to the polarity of the battery placement by observing the (+) and (-) markings in
the compartment.
REPLACING BATTERIES IN THE HEATER:
Remove the (2) screws holding the louvered end plate at the far right end of the heater. This is the SMALLER of the 2
access plates. The battery pack is mounted directly inside on the endplate. remove the (2) screws holding the louvered
end plate at the end of the heater. The battery pack is mounted directly inside on the end plate. Using a small Philips head
screwdriver remove the screw and slide off the battery box cover. Replace or insert (4) AA 1.5 V batteries with attention
of the (+) and (-) terminals. Reinstall the battery box cover and secure it in place with the Philips head screw. Reinstall the
louvered end plate with the 2 screws and use caution not to pinch the battery wires. See page 18 for complete
description and illustrations.
PILOT FLAME ADJUSTMENT :
The pilot flame in your heater has been factory preset for normal, environmental conditions. However, there may be
a specific need to adjust the pilot flame to a higher level such as windy conditions. The pilot flame can be adjusted by
following these steps:
Remove the (2) screws which hold
the small louvered end plate in
position as above to change the
batteries.

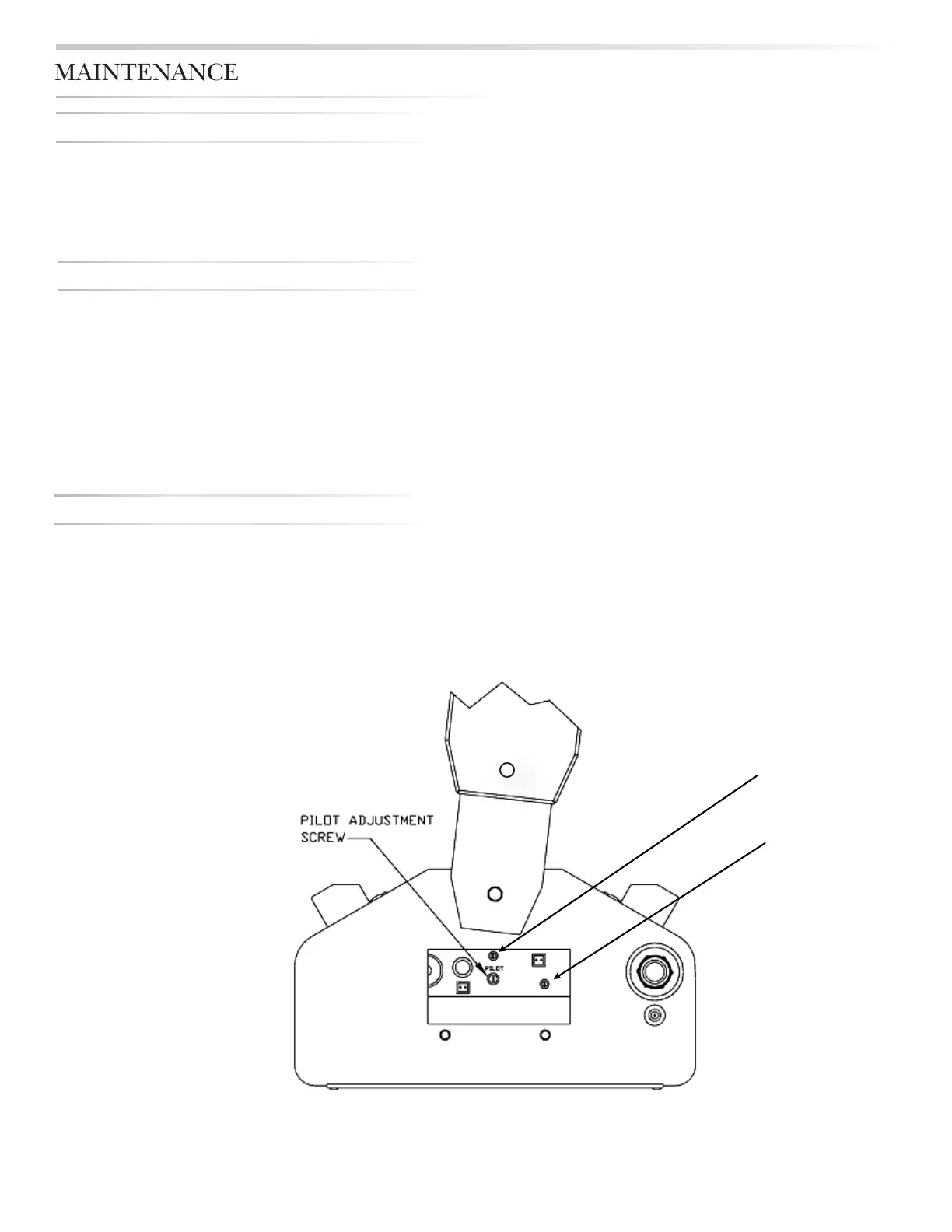

In the illustration you will see the
side of the valve which contains 3
brass screws. There are 2 smaller
screws, and one larger screw to-
ward the center. The larger screw
is the pilot adjustment screw. It is
marked “PILOT”. Turn the screw
CLOCKWISE (to the right) to
DESCREASE the pilot
flame, turn the screw
COUNTERCLOCKWISE
(to the left) to INCREASE
the pilot flame. Assure that the
valve wires are still in place, and
replace cover plate after pilot has
been adjusted.
