32 _____________________________________________ OPERATORS MANUAL
ENGLISH

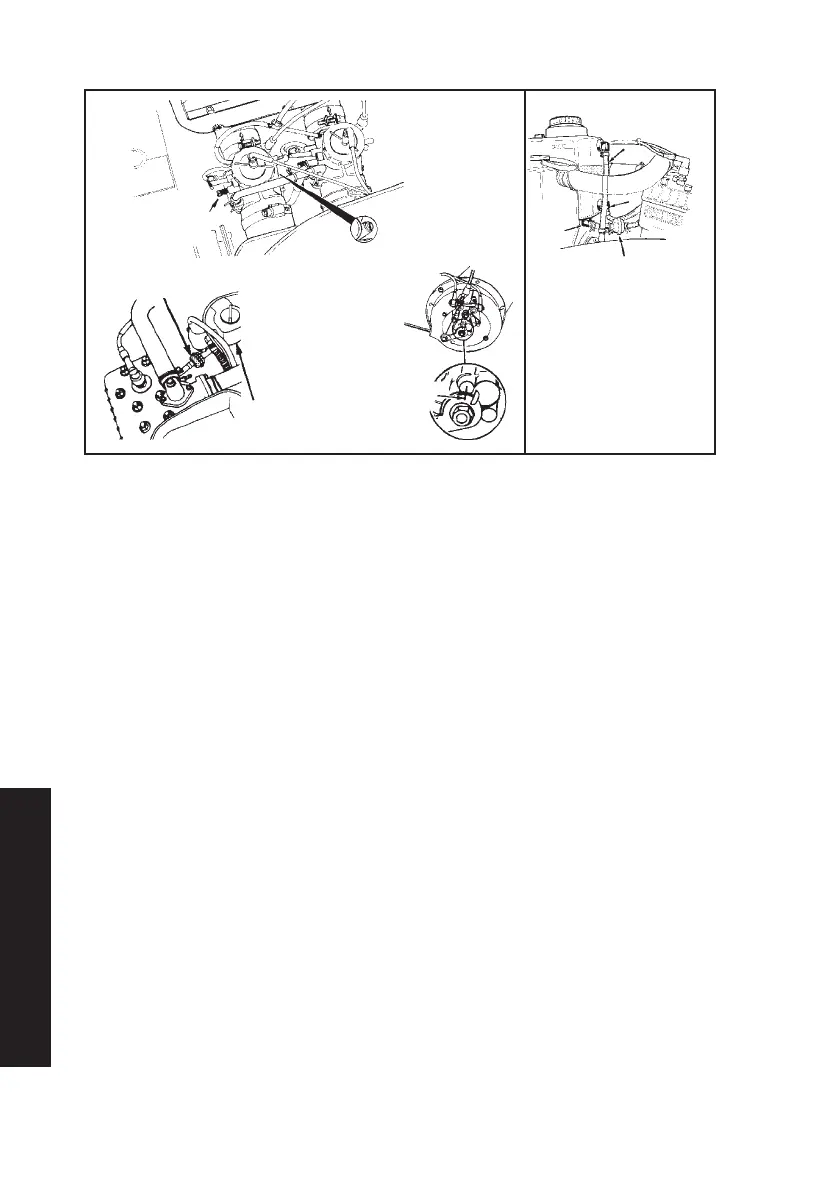

Oil tank
1,2 slide lubrication
3 to oil pump
4 oilfilter
Idling screw
Air screw
Oil tank
Adjusting oil
pump
Alignment mark
Oil pump adjustment
It is very important that the oil pump is correctly adjusted. In case the pump opens too
late, the engine may be damaged seriously.
Adjustment checking
Remove the slack in the gas wire by pressing the throttle lever until you feel a slight
resistance and keep the lever in this position. The marks in the frame of the oil pump and
in the lever should be opposite to each other. If not, contact your dealer.
NOTE: Calibrate the carburettor before adjusting the pump.
